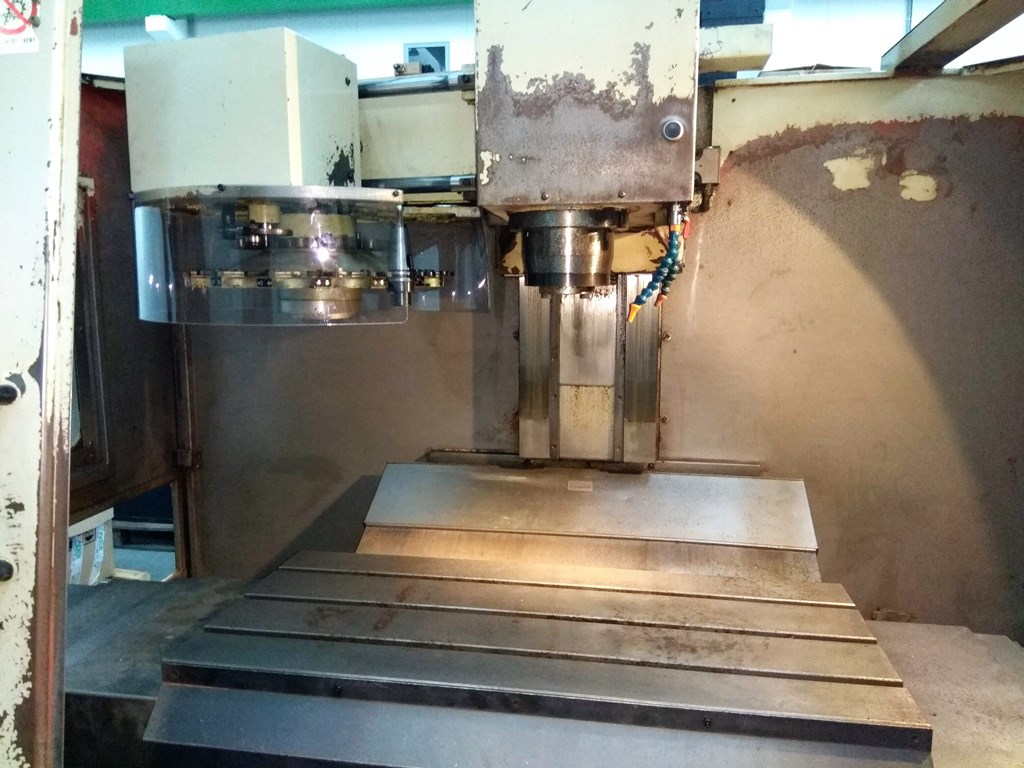

CENTER WICKER VMC810
Single pallet
machine center - vertical - Used Machines
WICKER
08353
08353

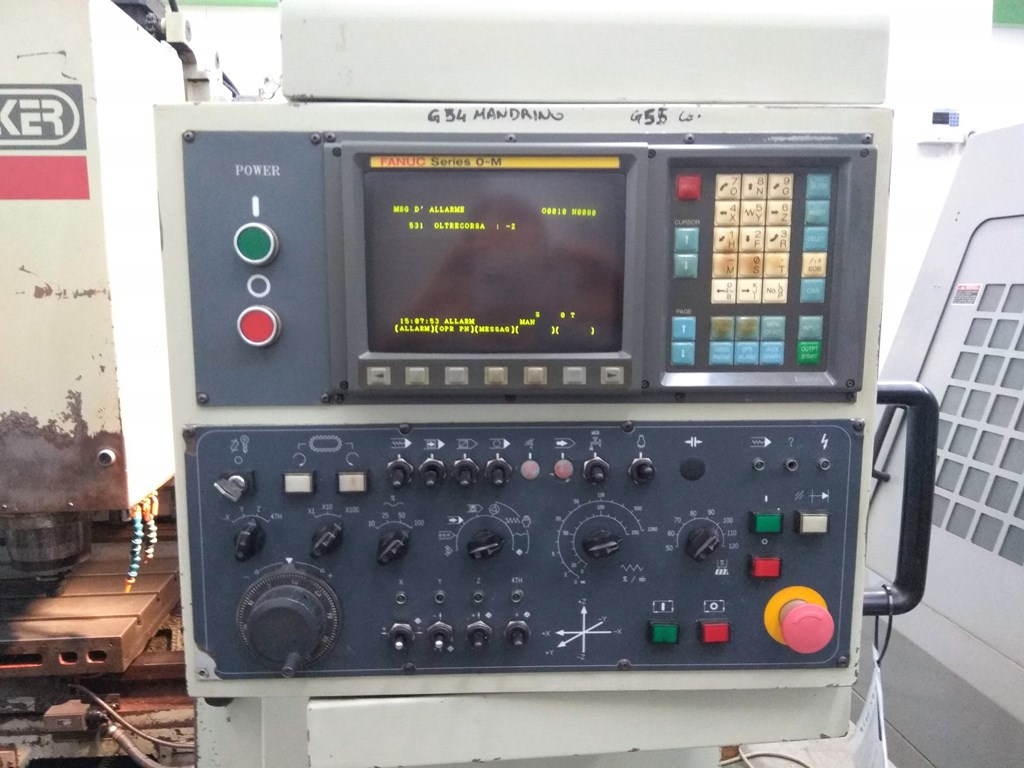

CNC FANUC 0-M
TABLE SIZE 450x1000 mm
MAX ADMITTED LOAD 300 Kg
X-AXIS TRAVEL 810 mm
Y-AXIS TRAVEL 500 mm
Z-AXIS TRAVEL 500 mm
DISTANCE SPINDLE NOSE-TABLE 150-650 mm
DISTANCE COLUMN-SPINDLE AXIS 500 mm
SPINDLE SPEED 60-6000 rpm; 5,5-7,5 kW; BT 40

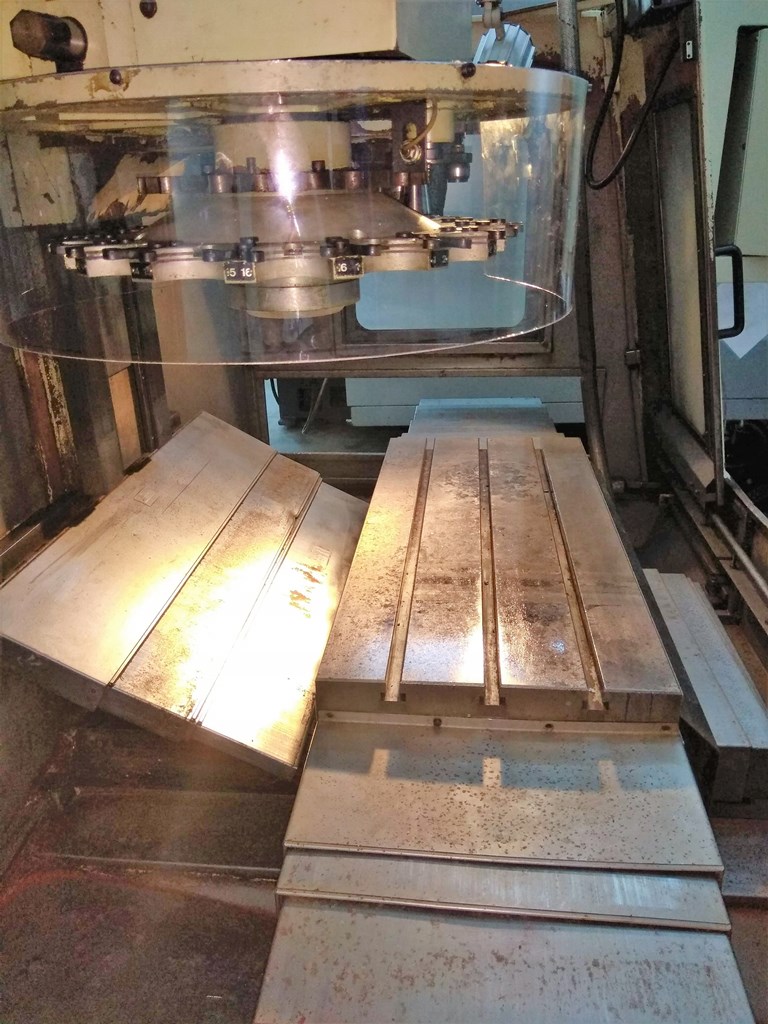

TOOL MAGAZINE CHAIN-TYPE ; 16 POSITIONS
MAX TOOL LENGHT 250 mm
MAX TOOL DIAMETER 80 mm
MAX TOOL WEIGHT 7 Kg
WEIGHT 4500 Kg
OVERALL DIMENSIONS 2680x2290x2490 mm
ACCESSORIES:
-RS 232 SERIAL PORT
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
