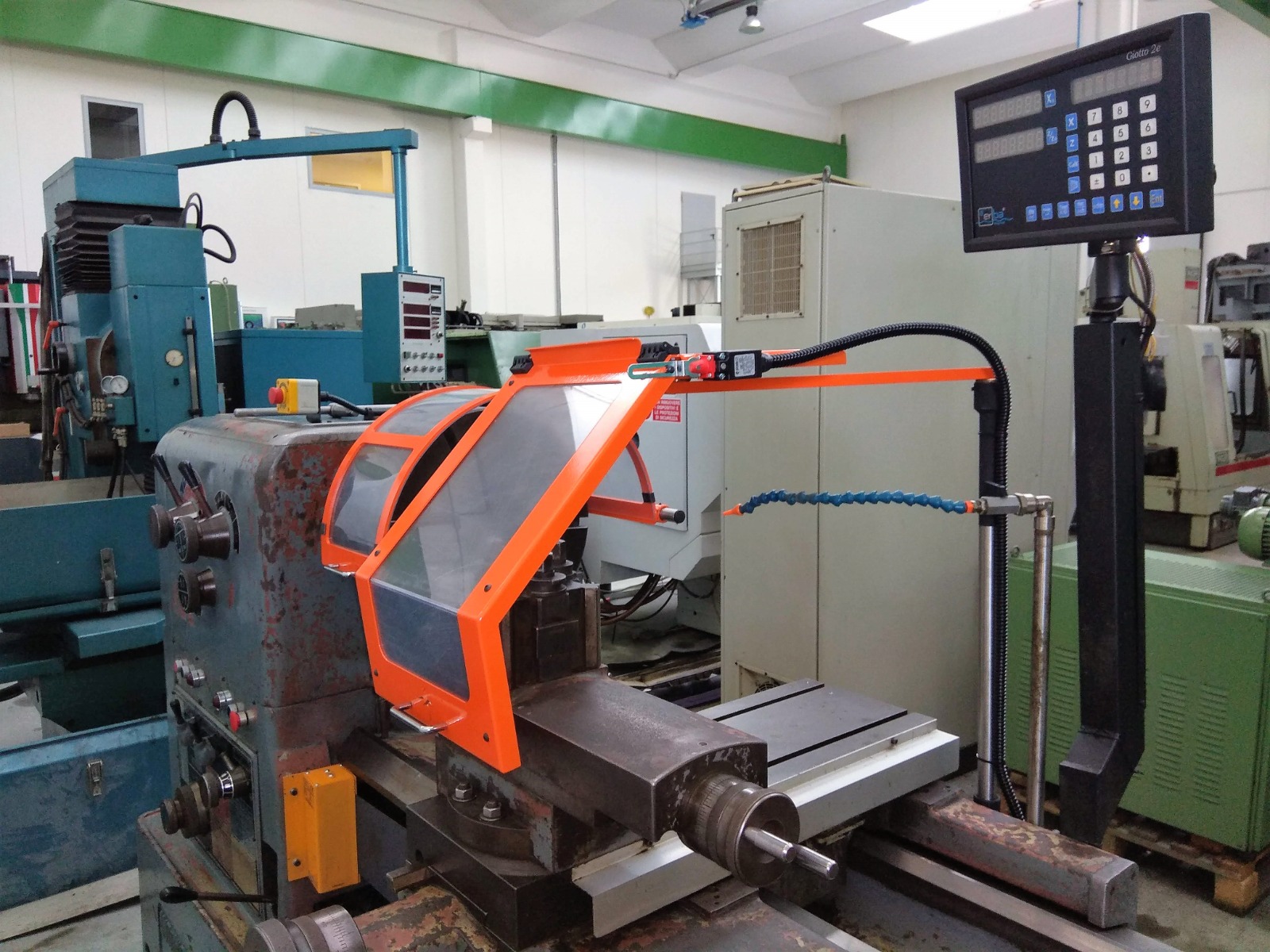

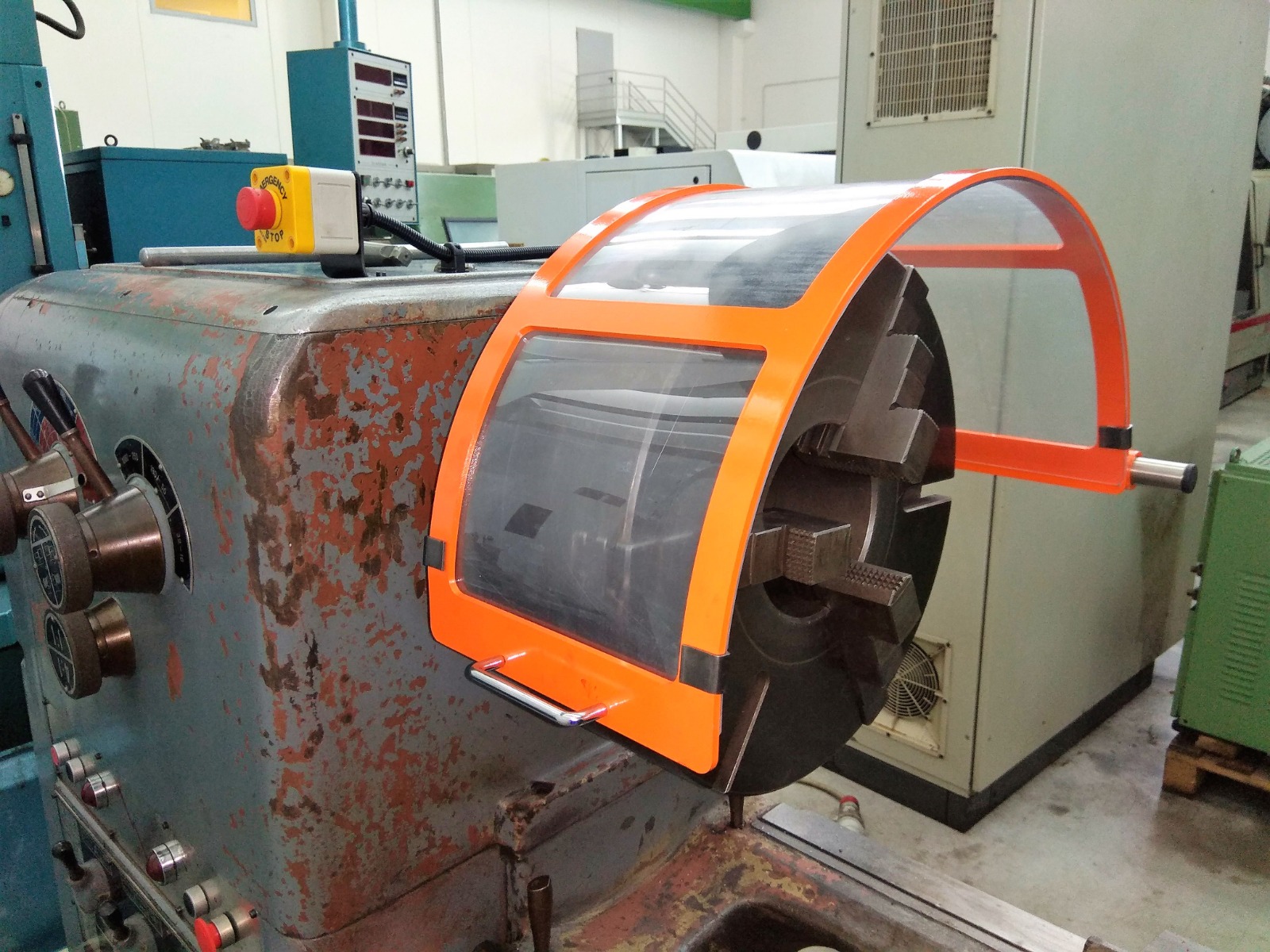

LATHE ANSELMI 325X1500
Diameter between 600 e 800 mm
lathe conventional - Used Machines
.jpeg)
.jpeg)
.jpeg)
VIDEOS:
ANSELMI
08357
08357
MOD. MONOFAP 325 EA
DISTANCE BETWEEN CENTRES 1500 mm
CENTRE HEIGHT 325 mm
MAX SWING OVER BED 650 mm
MAX SWING OVER CARRIAGE 430 mm
MAX SWING IN GAP 850 mm
BAR CAPACITY 65 mm
SPINDLE SPEED 18-1000 rpm; 11 kW; 430 mm
QUILL TRAVEL 300 mm
TAILSTOCK QUILL DIAMETER 75 mm
BED SLIDEWAYS WIDTH 430 mm
TURRET 3 POSITIONS
WEIGHT 3050 Kg
OVERALL DIMENSIONS 3200x1060x1360 mm
EQUIPPEDWITH:

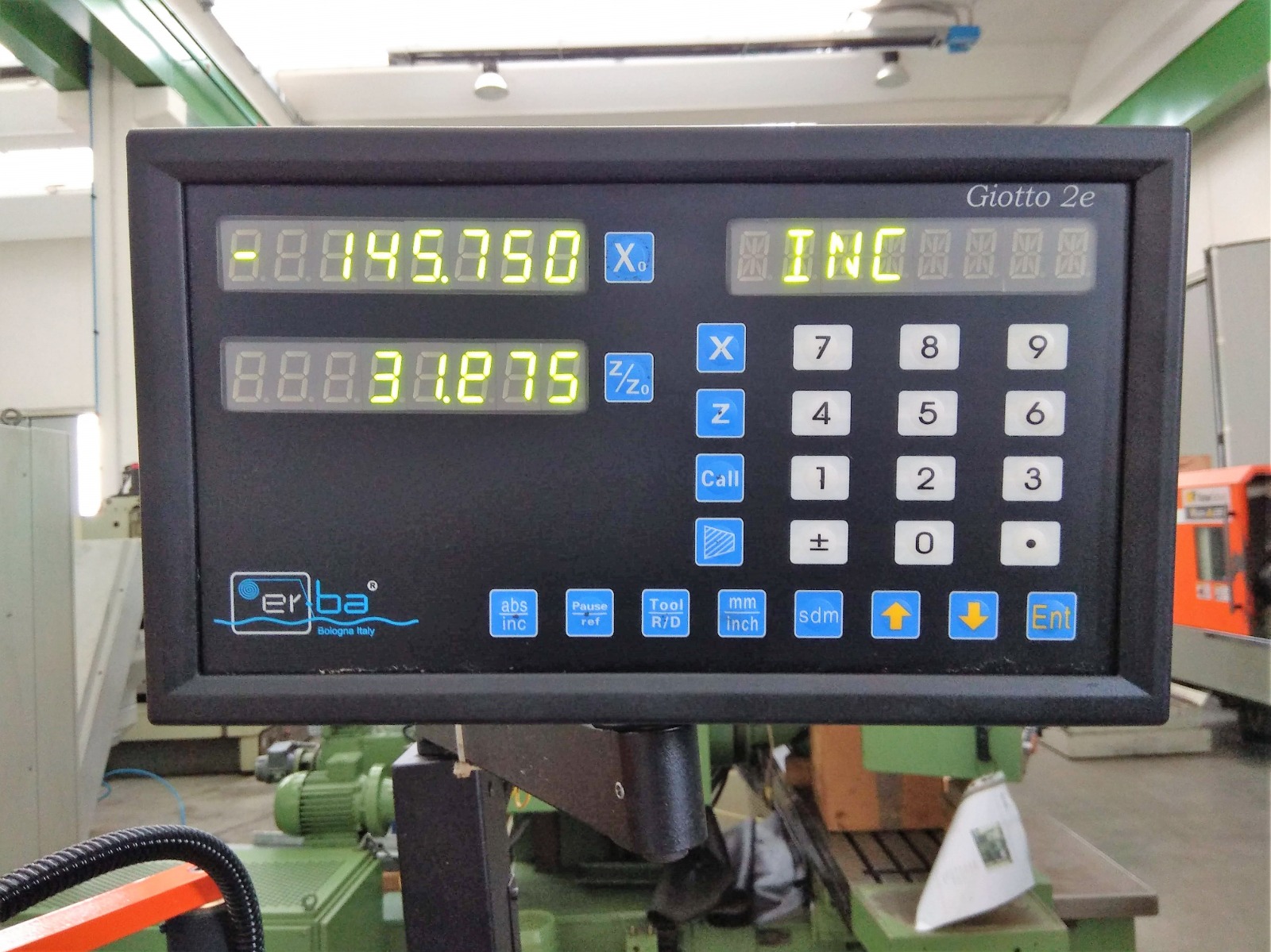

-DIGITAL READOUT SYSTEM FOR 2 AXIS
USED MACHINE
