DEEP HOLE DRILLING IMSA MOD. MF 1500 B2
For molds
08412

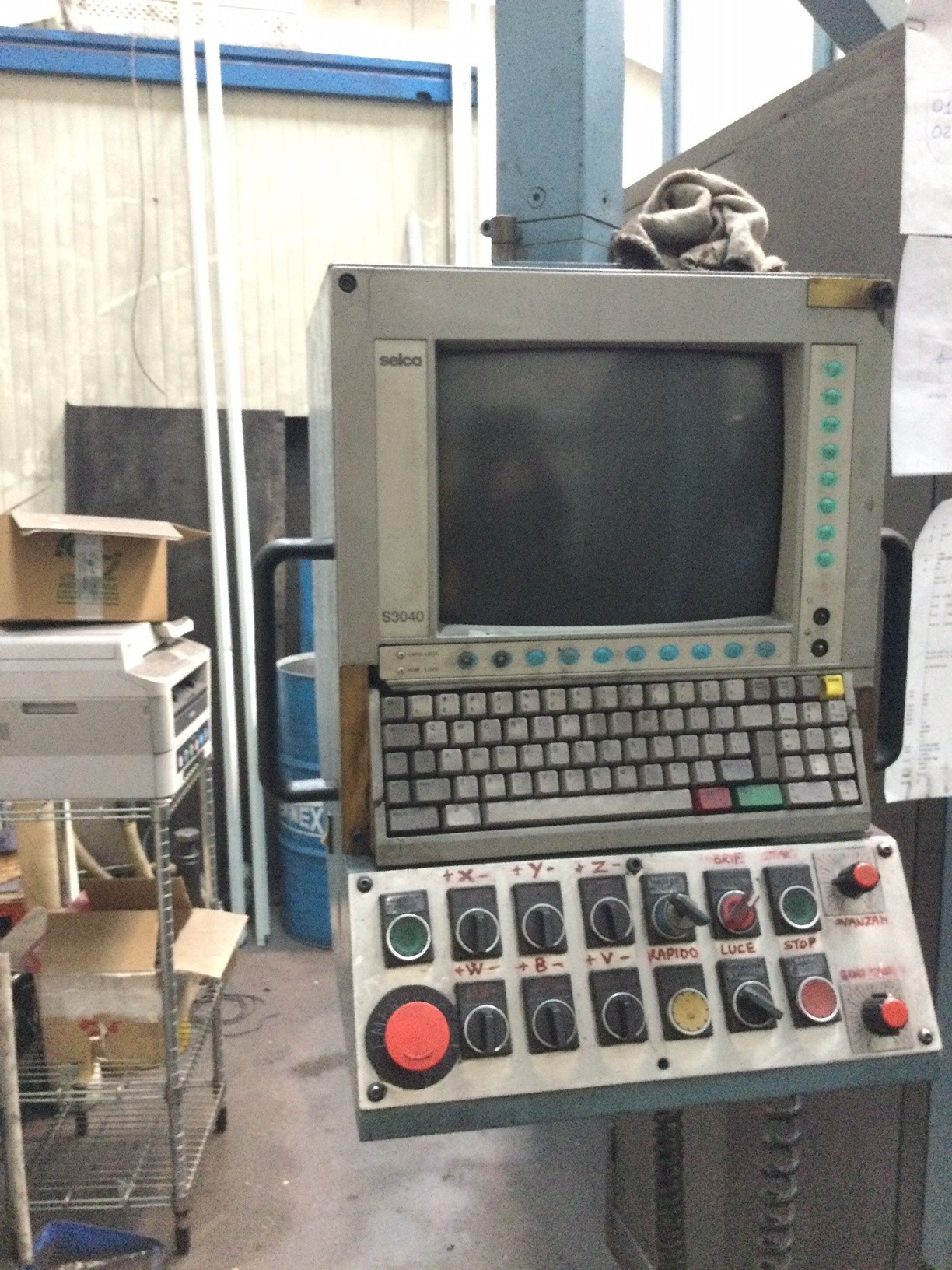

CNC SELCA 3045 + remote handwheel

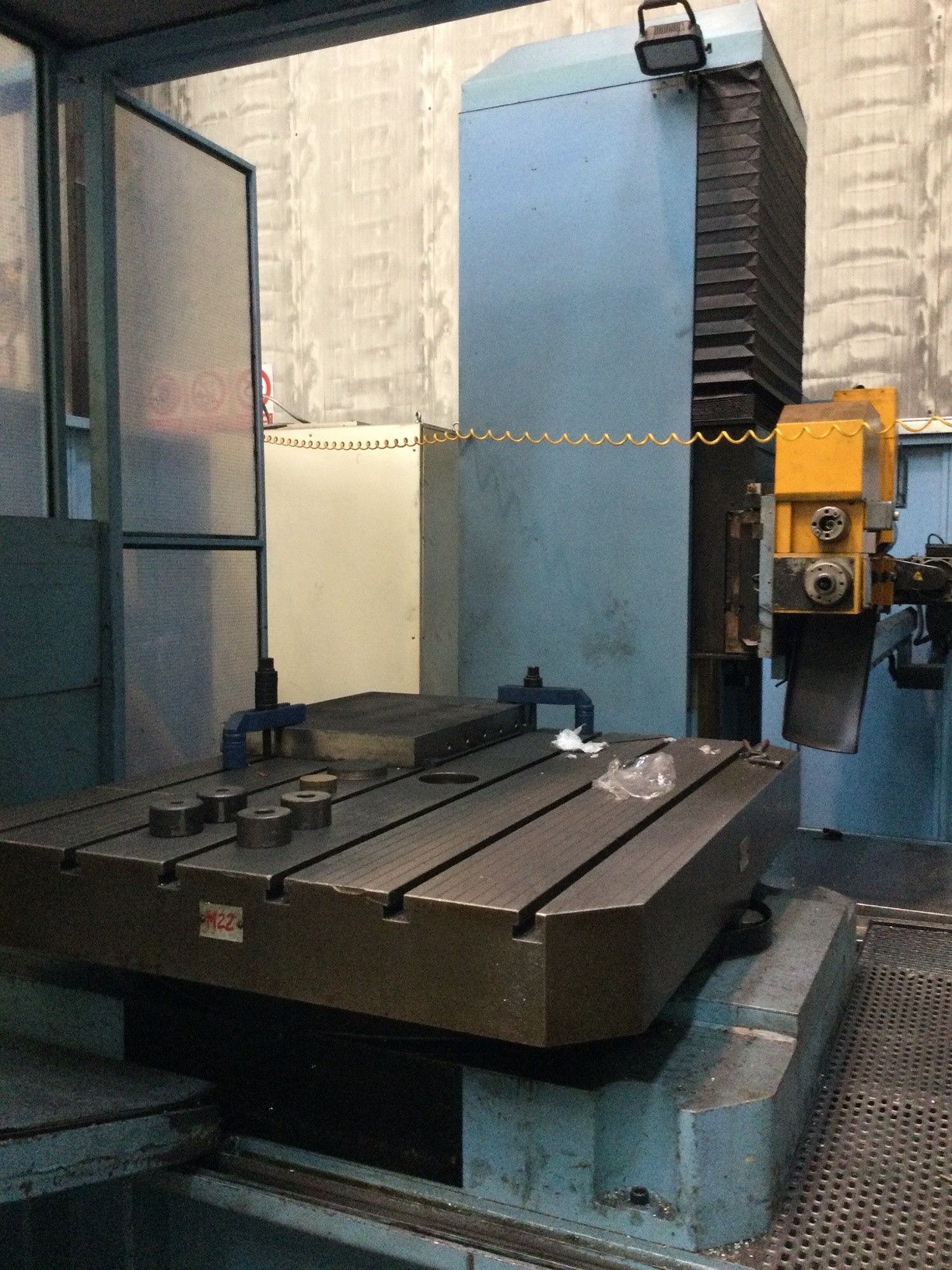

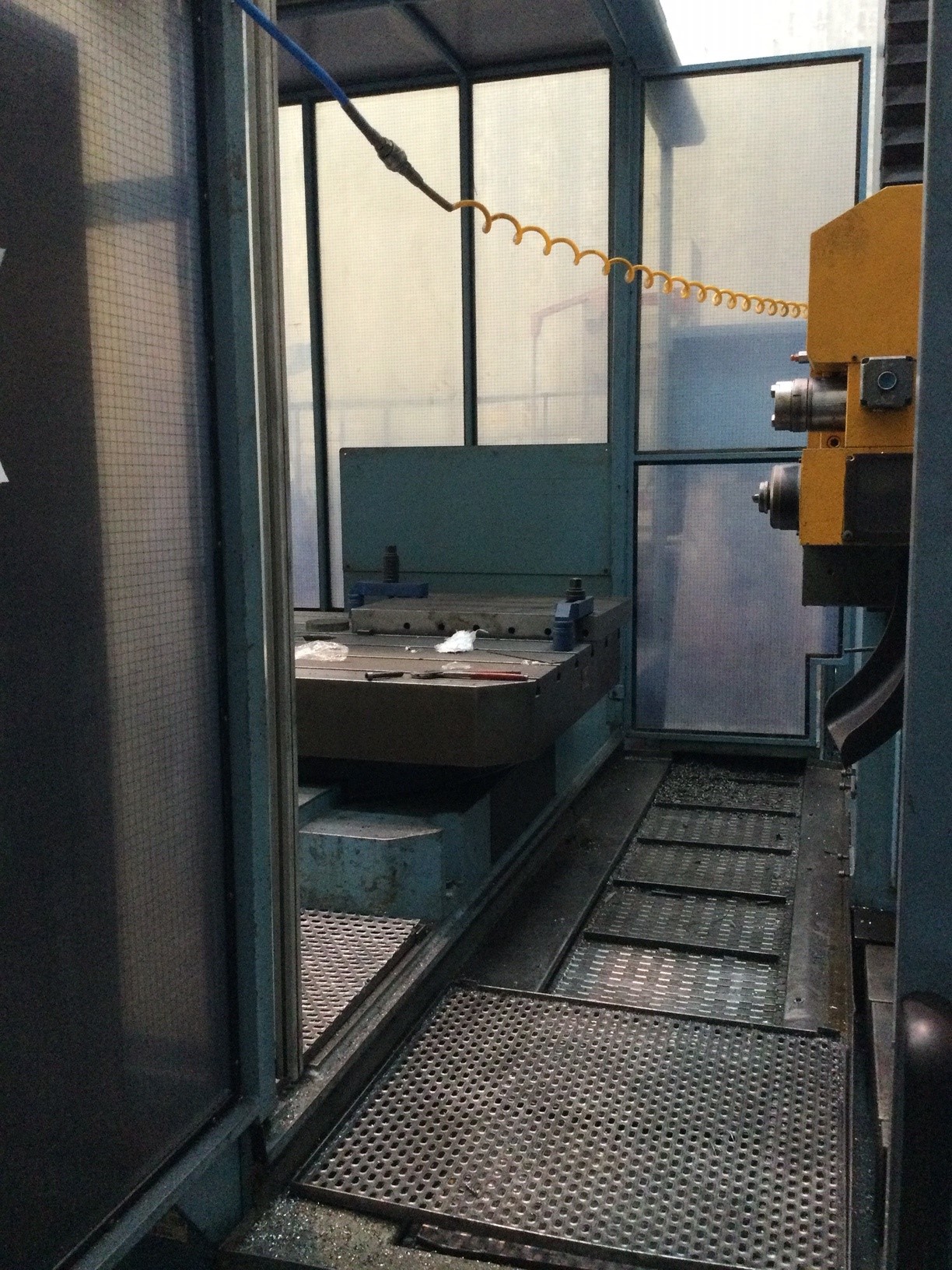

ROTARY TABLE
Working surface mm 1200x1500
T-slots (quantity x width ) mm 6 x 22
Max allowable load in rotation Kg 20.000
Max allowable load during stop Kg 450.000

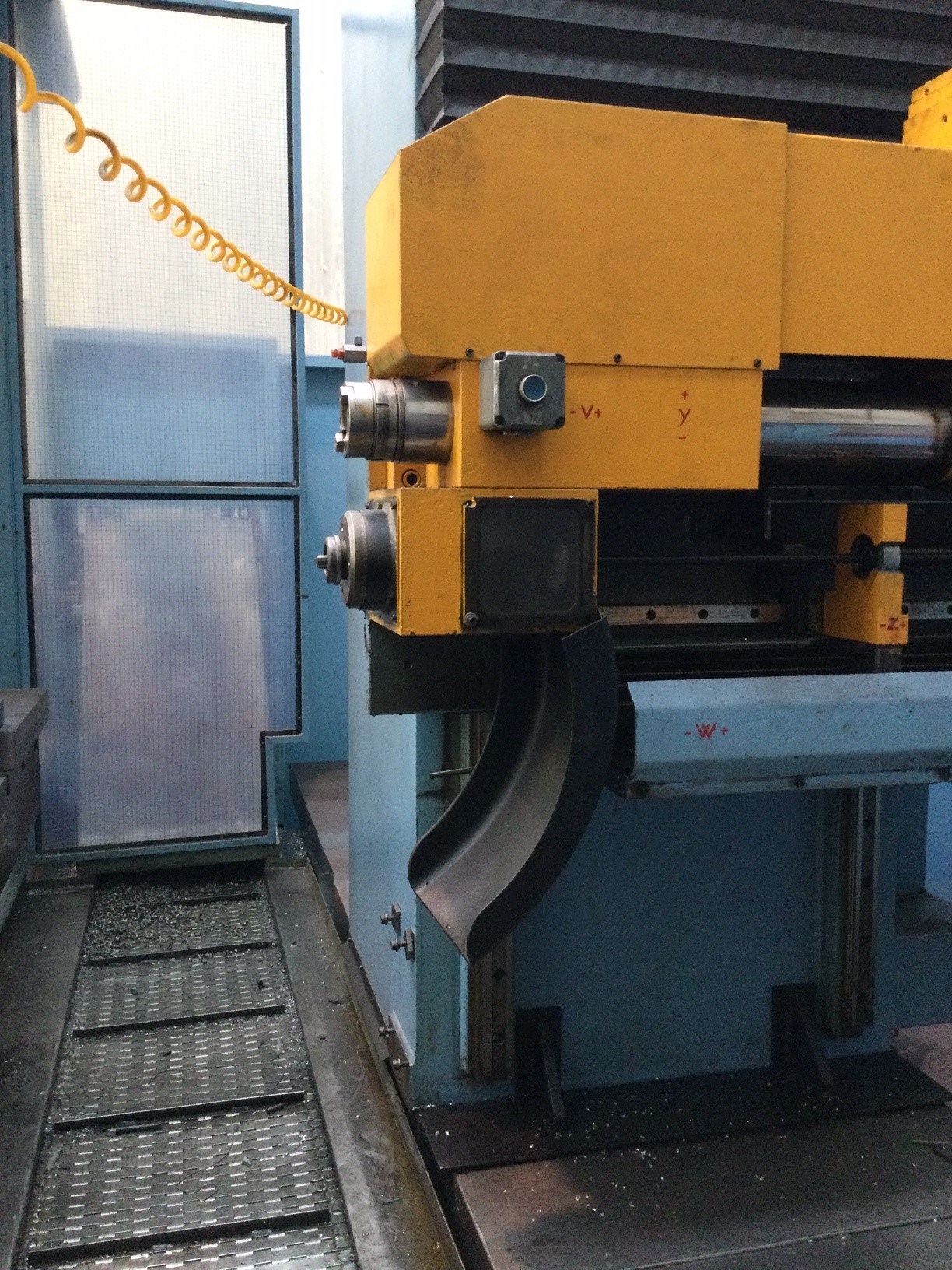

AXIS - WORKING AREA
Longitudinal X mm 2350
Cross - deep hole drilling axis Z mm 1500
Vertical - little milling axis Y mm 1166
Vertical - deep hole drilling axis Z mm 1000
Piece approaching W mm 650
Rapid feedrates X, Y, Z, W mm/min 0-8.000

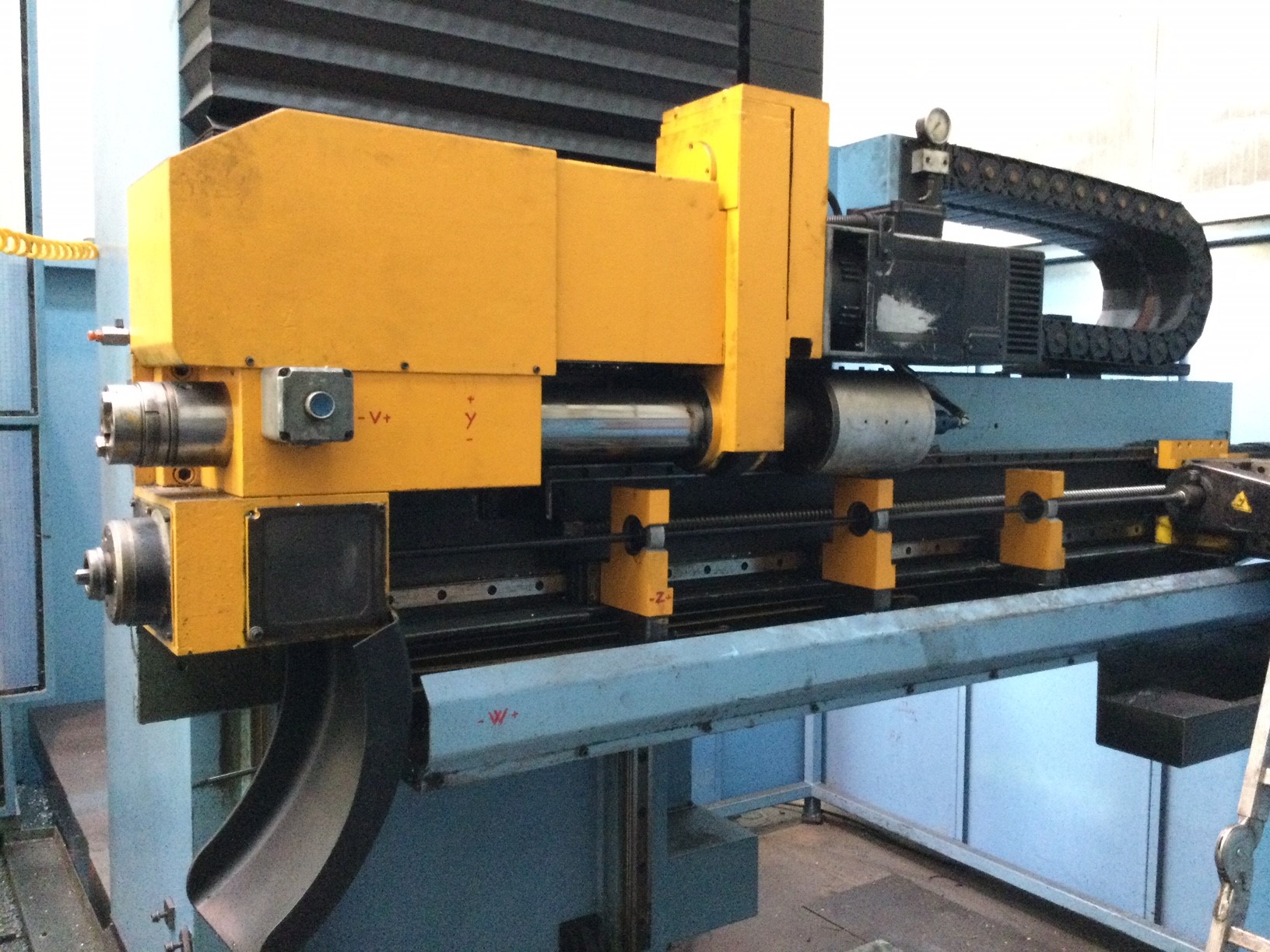

WORKING DETAILS DURING DEEP DRILLING TOOLS
Max depth mm 1500
Rev. per minute Rpm 4200
Drilling section in full mm min - max 5-25
WORKING DETAIL THREADING HEAD
Rev. per minute Rpm 2000
Max threading (on steel type C40) M 20
Max quill stroke mm 300
Max milling: mill diam. mm 60 x max removal from 1,5 mm
ELECTRIC MOTORS
Main motor power Kw 7,5
Milling and drillin spindle motor power Kw 5,5
Total power input Kw 25
VARIOUS
Lubricant and coolant thank capacity litres 900
Overall size mm 5500x6000xH3200
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
