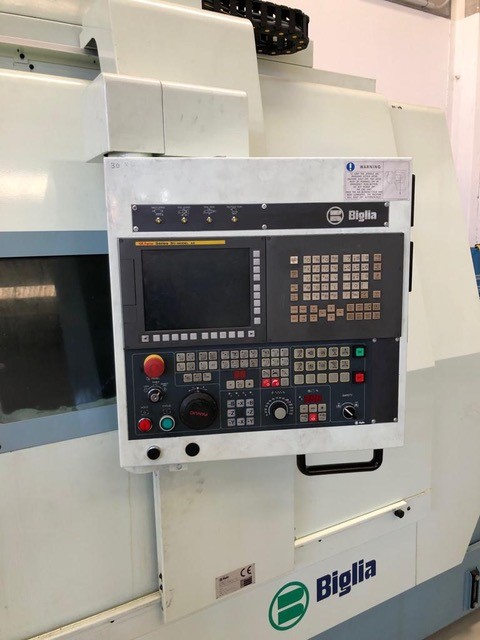

CNC FANUC 31i-A5
WORKING AREA:
Max swing diameter mm 750
Max turning dimaeter mm 500
Max turning lenght mm 1280
LINESR AXIS:
X-Axis travel mm 515
Z-Axis travel mm 1280
Y-Axis travel mm 210 (+120/-90)

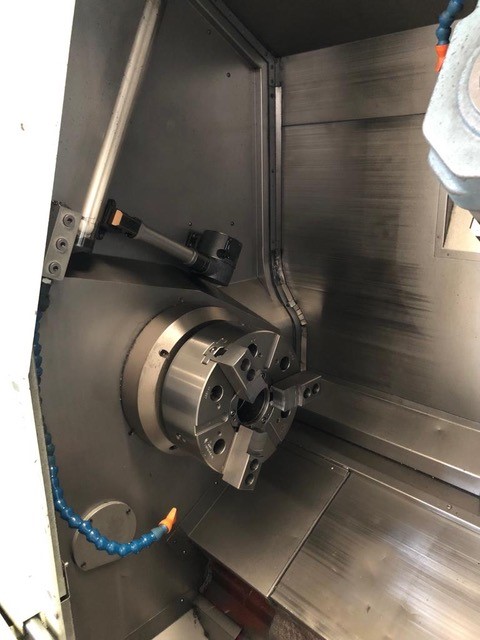

SPINDLE:
Max speed rotation rpm 3000
Spindle nose DIN 55026 8''
Bar passaging mm 94
Motor power kW 30/38
Max torque Nm 1014
Chuck diameter mm 315

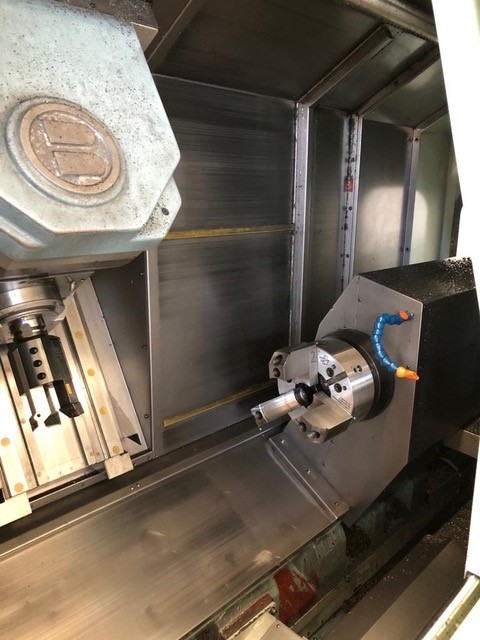

SUB-SPINDLE:
Max rotation speed rpm 4000
Spindle nose DIN 55026 6''
Bar passaging mm 65
Motor power kW 30/40
Max torque Nm 286
W-axis travel mm 1130
Chuck diameter mm 250 - bore mm 77

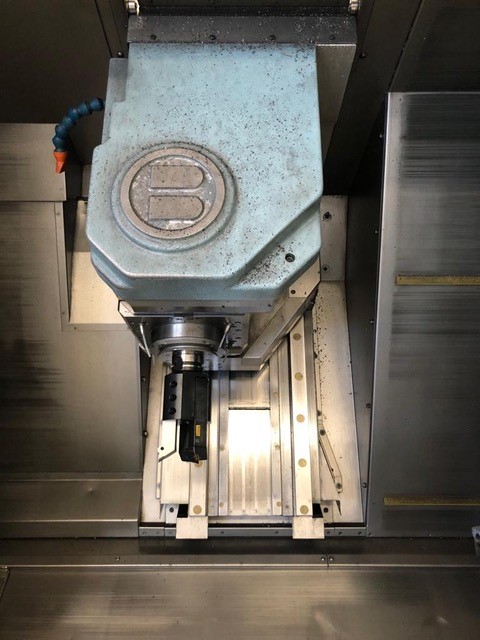

B-AXIS TURN/MILL UNIT:
Rotation field degrees 210 (+-105)
Angular positioning degrees 0,001
Tool taper HSK-A63
Rotation speed rpm 50-3000
Motor power kW 3,7 (50%)
TOOL MAGAZINE:
Tools number 40
OVERALL DIMENSIONS:
Overall dimensions (with chip conveyor) mm 5890x2274x2574 H
Weight (with chip conveyor) Kg 9000
EQUIPPED WIHT:
-Chip conveyor

RECONDITIONED USED MACHINE
YEAR 2007
