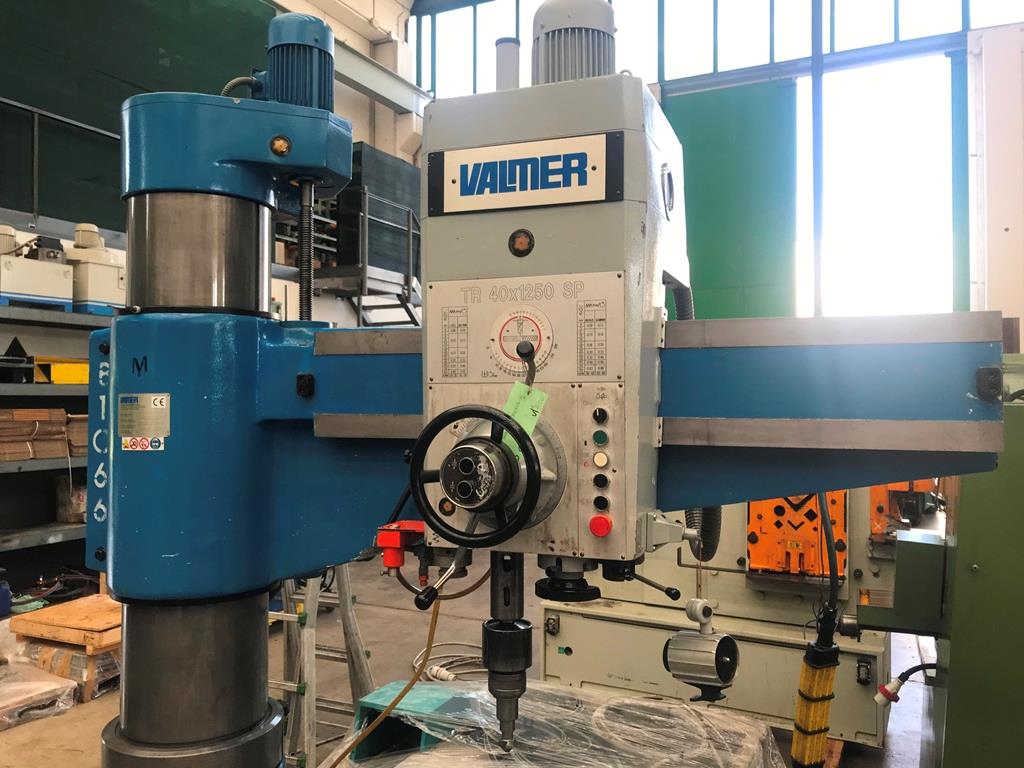

DRILLING VALMER TR40x1250 SP
Radial
drilling - Used Machines
VALMER
08462
08462
Max drilling diameter mm 40
Max tapping diametr mm 25
Distance max (spindle axis/column) mm 1250
Distance min. (spindle axis/column) mm 350
Head travel horizontal mm 900
Dist. max spindle nose and working basement surface mm 1250
Dist. min spindle nose and working basement surface mm 350
Vertical arm travel mm 550
Table dimensions mm 600x500x500
Morse taper MT 4
Spindle taper mm 315
Speeds (number/range) 16 (25-2500 min.)
Feeds 16 (0.04 - 3.20 mm/U)
Main motor power KW 3
Machine dimensions mm 2150x1070x2655
Weight Kg 3160
EQUIPPED WITH:

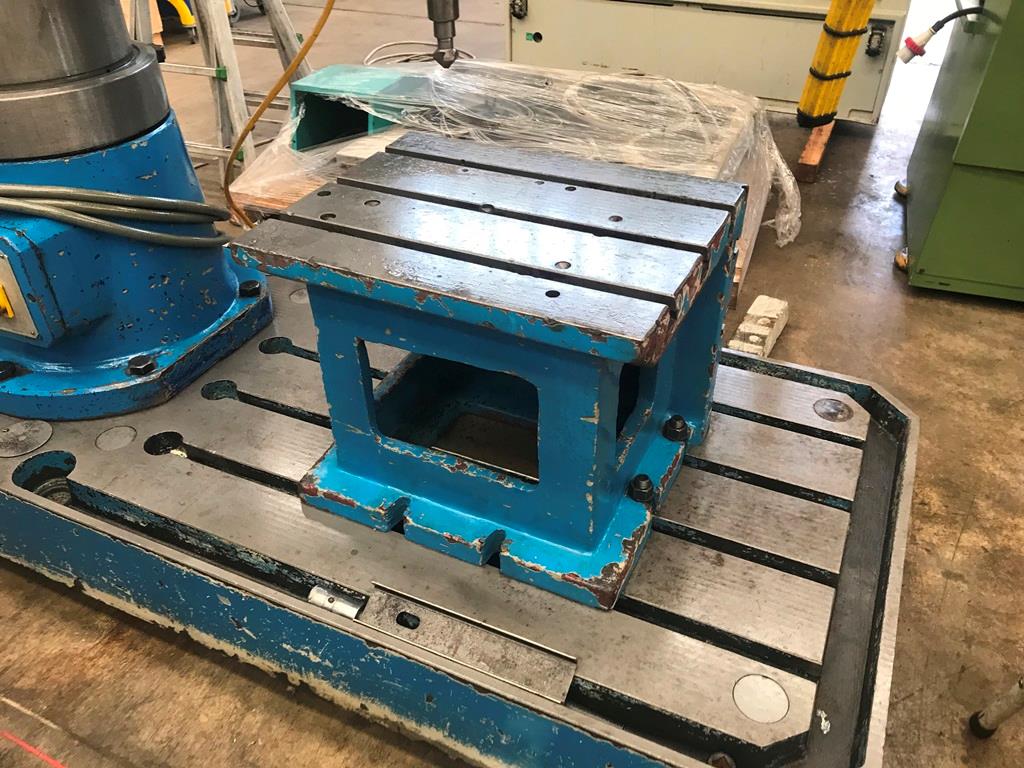

-Cube
USED MACHINE
