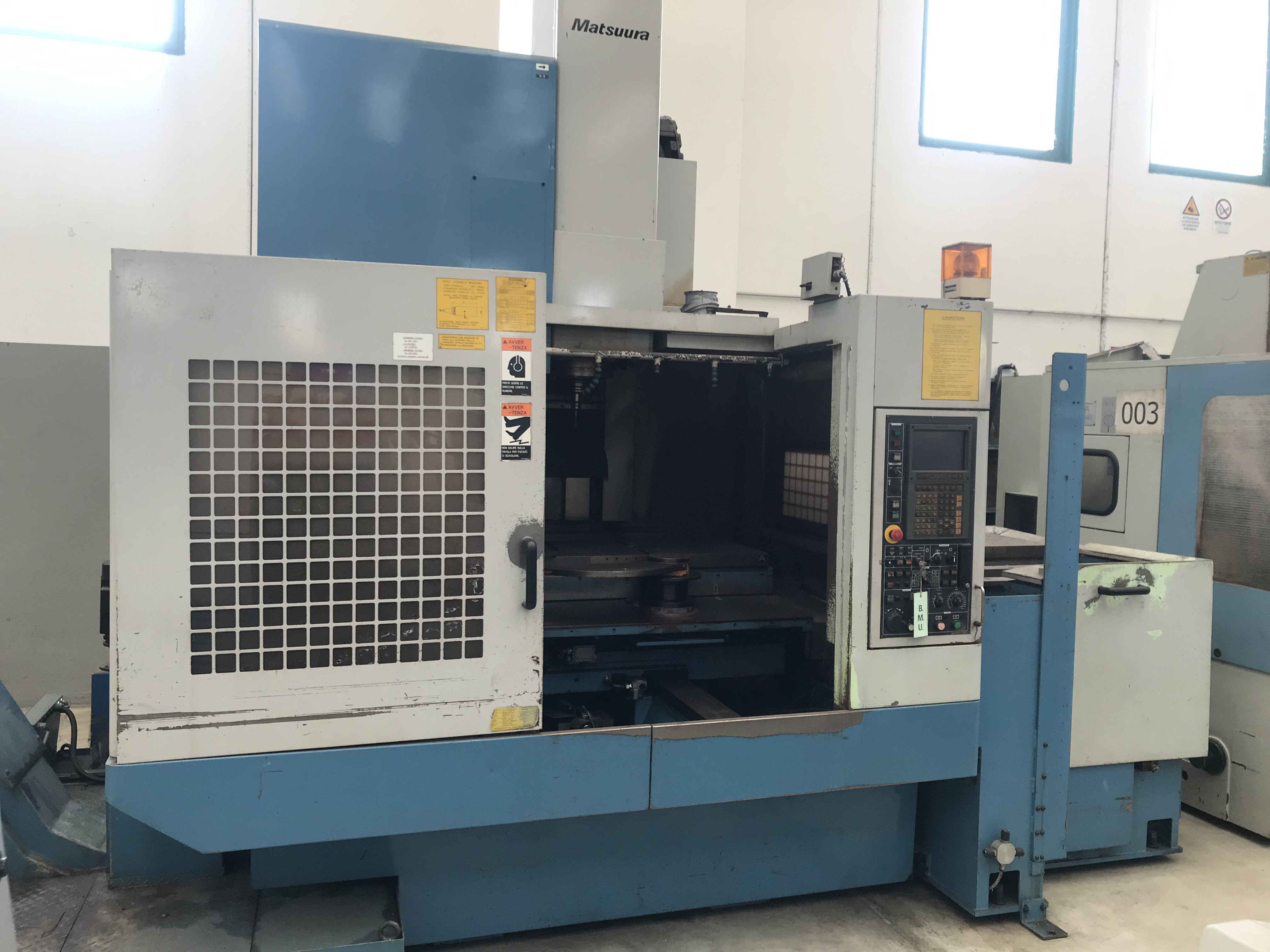

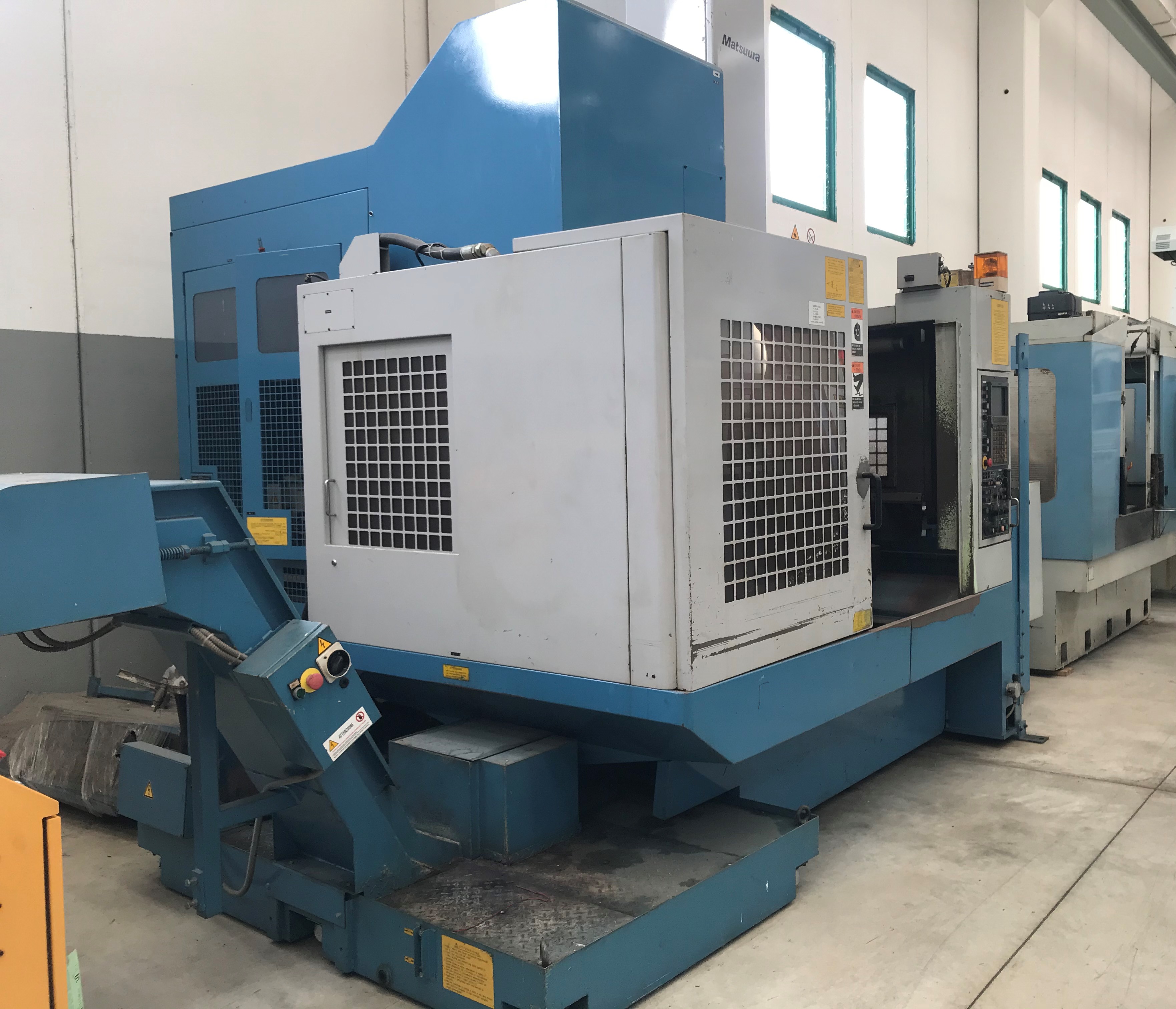

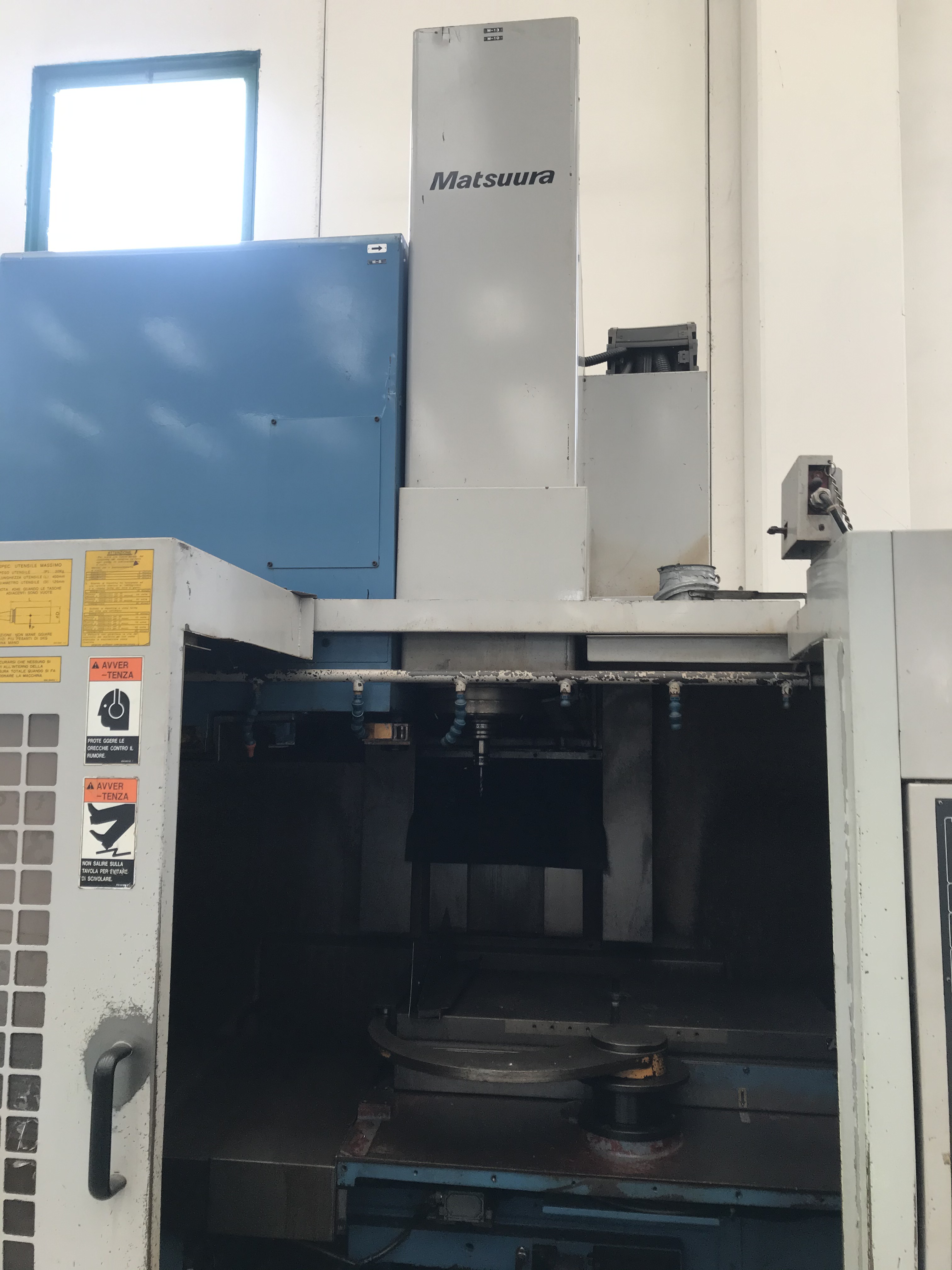

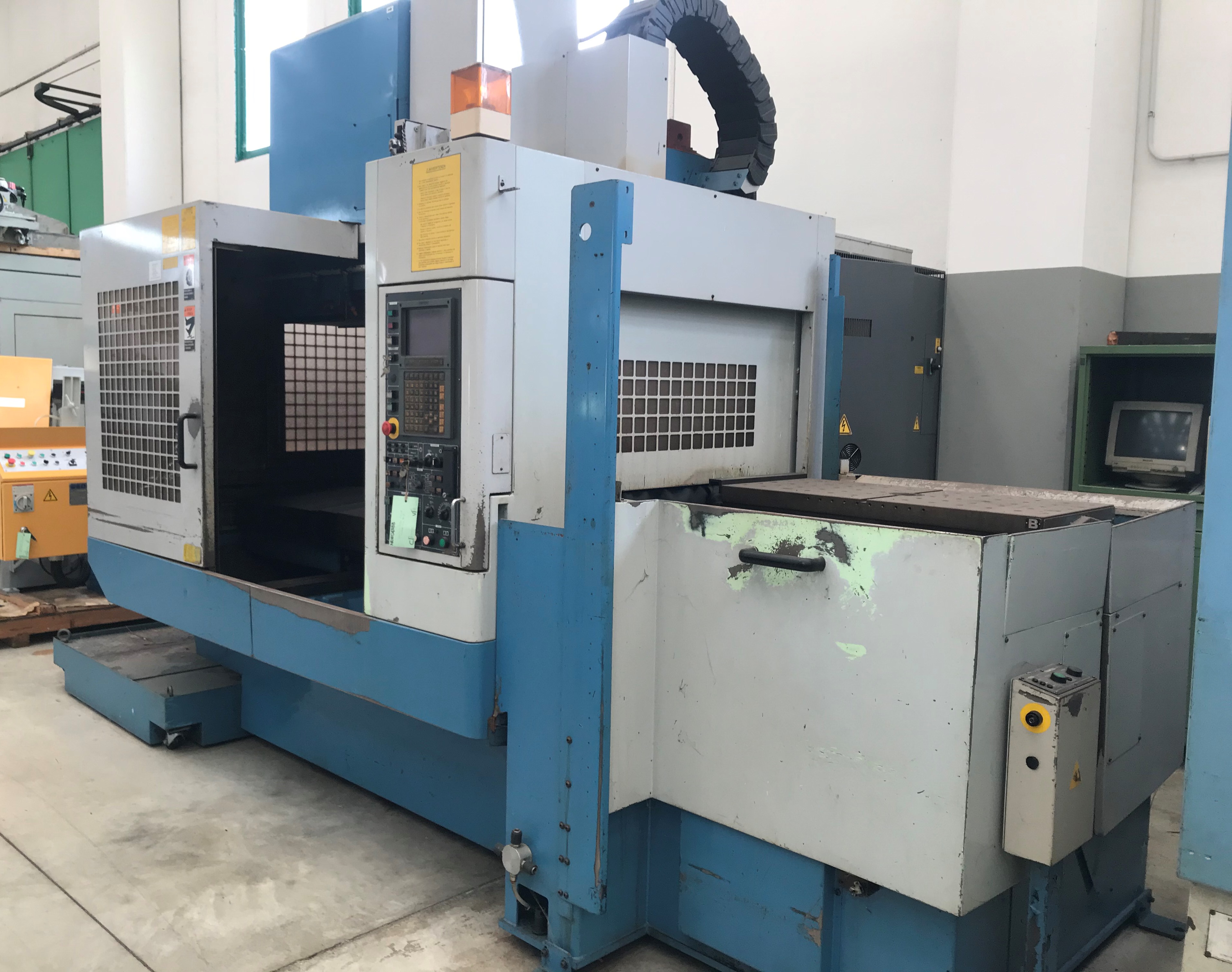

VERTICAL CENTRE MATSURA Mod. RA 46
Single pallet
New04388
VERTICAL

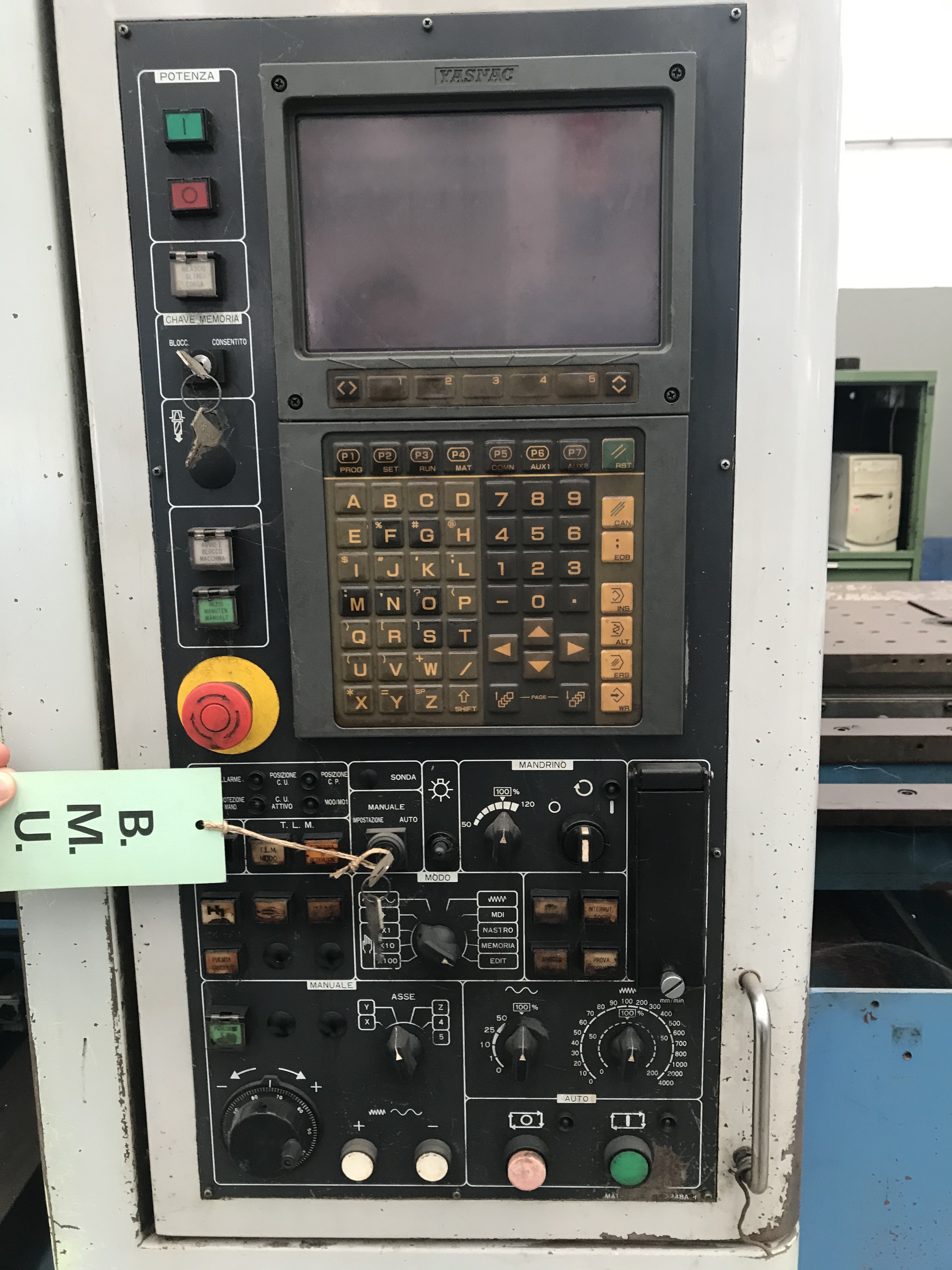

-CNC YASNAC-J 300 VIDEO GRAPHIC
-AXIS X MM. 1020
-AXIS Y MM.550
-AXIS Z MM.510
-TABLE SIZE MM.1000X490
-DISTANCE TABLE/ SPINDLE NOSE MM.150/660
-DISTANCE COLUMN/ TABLE CENTRE MM.285/835
-DISTANCE COLUMN/ SPINDLE BORE MM.560
-LOAD CAPACITY KG.500
-SPINDLE ENGINE CONTINUOUS KW 20
-SPINDLE ENGINE FOR 2 MIN. KW 30
-SPINDLE TURNS MIN-1 40-8000
-RAPID FEEDRATES X,Y,Z MM/MIN. 1-10.000
-SPEED RAPID TRASLATION X,Y,Z MM/MIN. 24.000
-TOOL CHANGE RANDOM 3O POSITIONS
-TOTAL POWER KWA 63
-WEIGHT KG. 7.000
-OVERALL SIZE MM.5959X4410X3417 H
EQUIPPED WITH:
-SPINDLE TAPER BT 50 BIG PLUSS

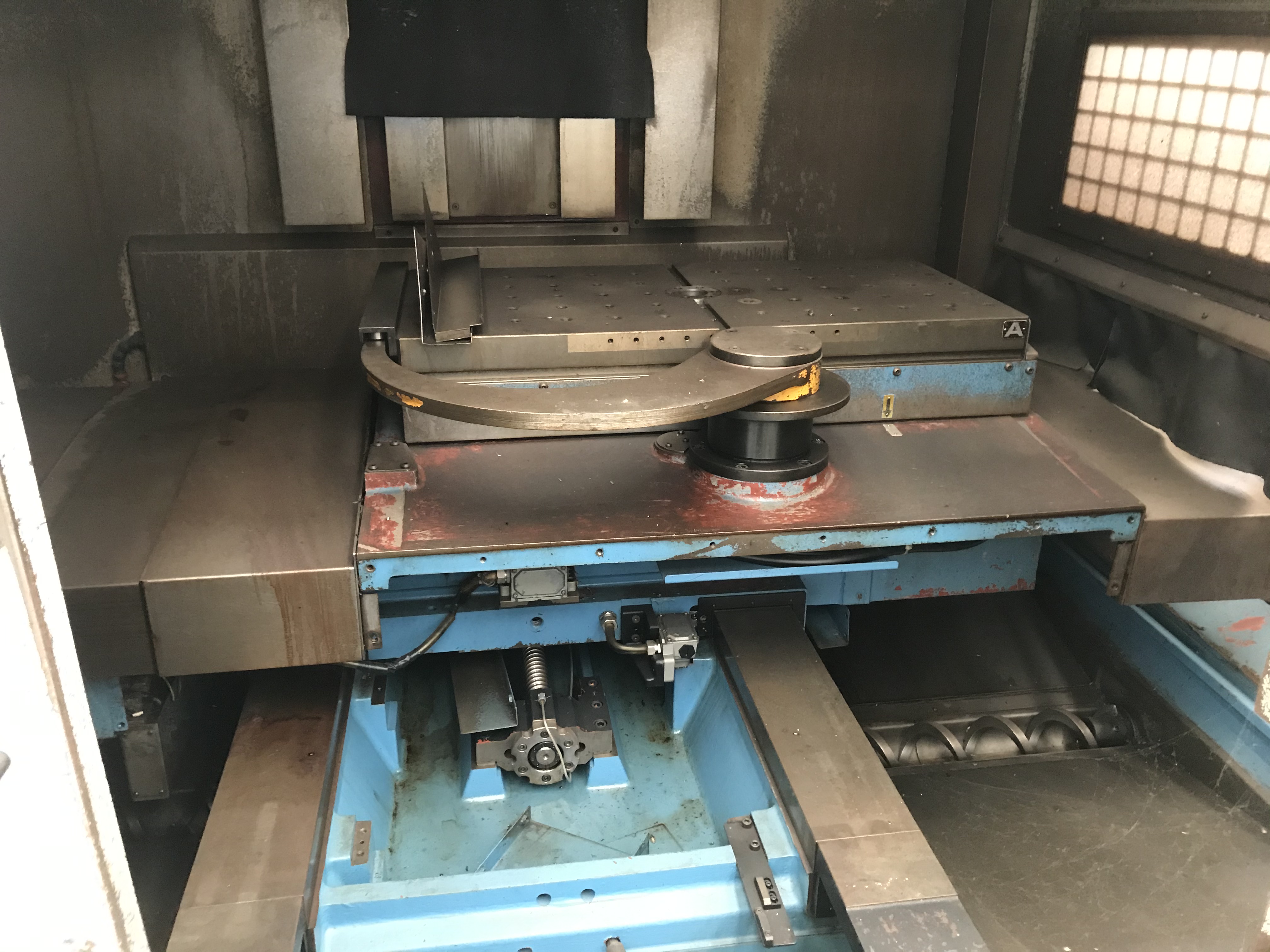

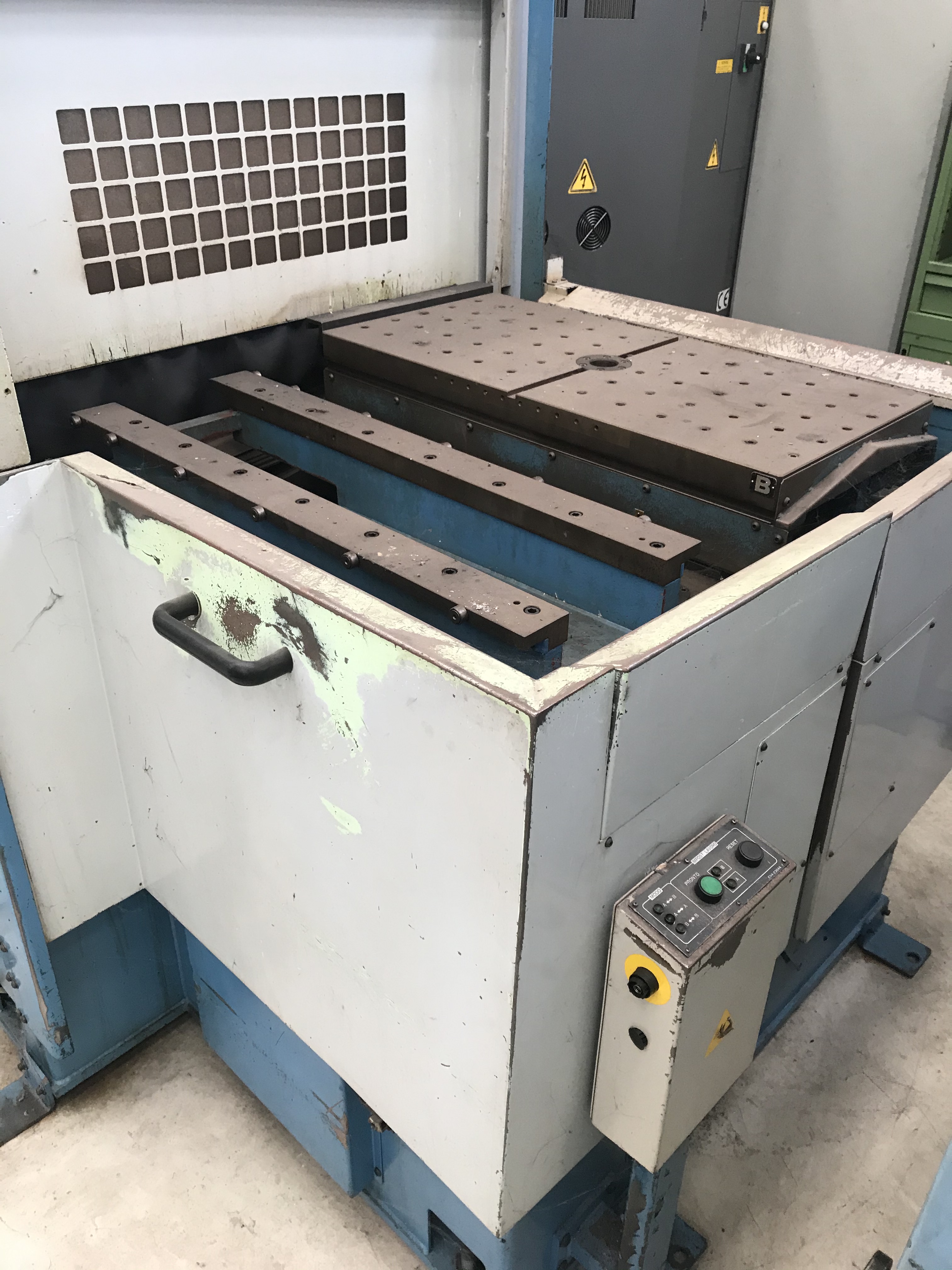

-DOUBLE PALLET
-BALANCED TOOLS
-COOLING SPINDLE LINE
-GEAR CHANGE
-INTERNAL COOLING SPINDLE 30/40 BAR
-LINEAR SCALES
USED MACHINE
USED MACHINE

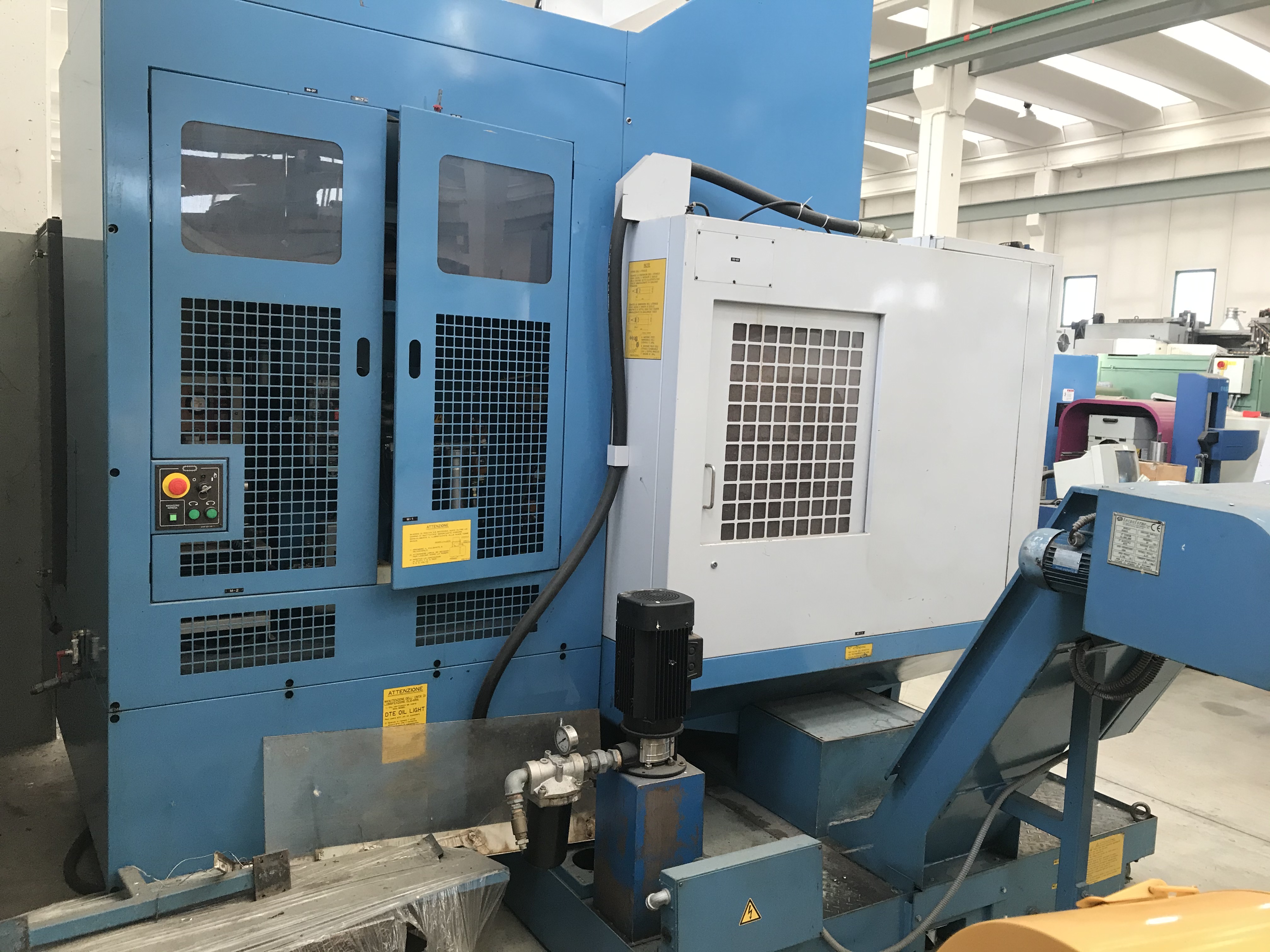

IMAGES:
FILL OUT OUR FORM FOR MORE INFORMATION
