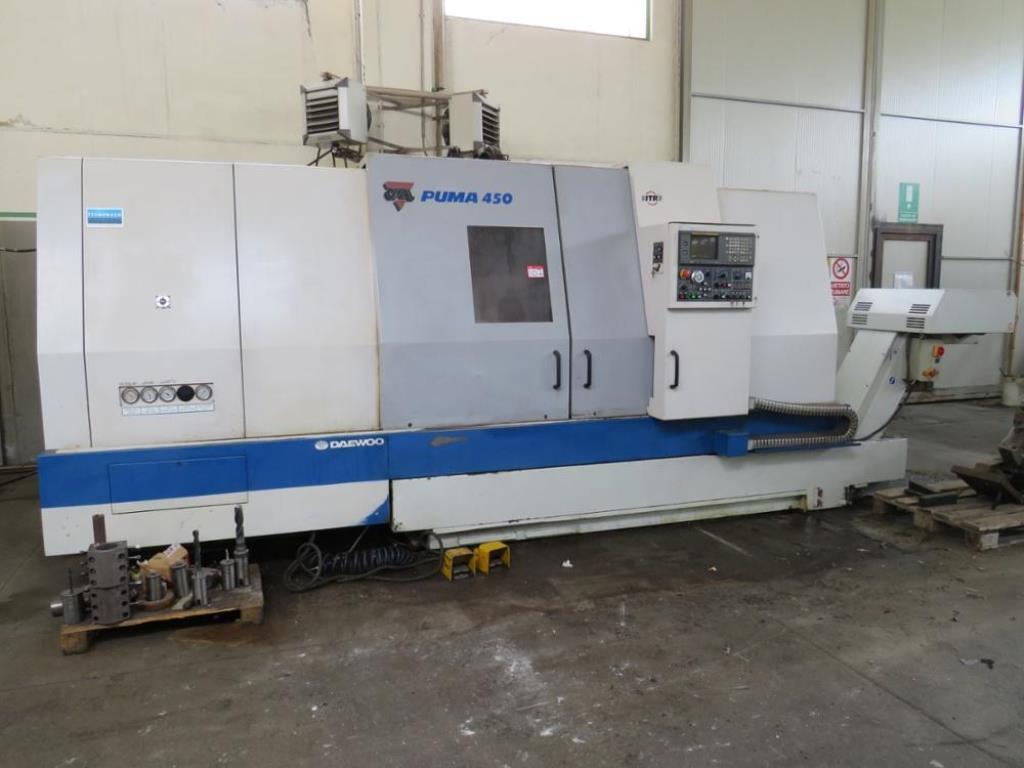

LATHE CNC DAEWOO PUMA 450A
2 axis
lathe cnc - Used Machines
VIDEOS:
DAEWOO
08537
08537

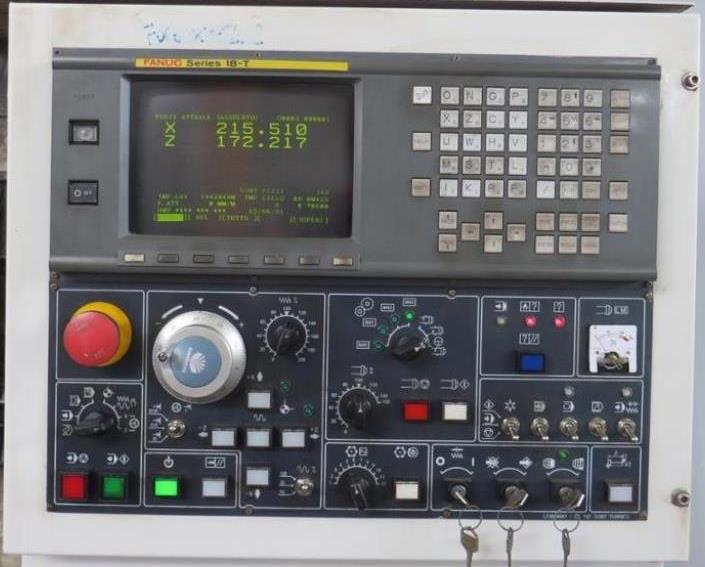

CNC FANUC 18-T
CAPACITY:
Max swing diameter over the bed mm 900
Max swing diameter over the carriage mm 630
Max turning diameter mm 700
Max turning lenght mm 1575
Bar passaging mm 117,5
STROKES:
Axis X mm 370
Axis Y mm 1575
SPINDLE:
Spindle bore mm 132
Spindle nose ASA A2 11
Spindle speed rpm 5-2000
Spindle motor power (cont./30min) kW 30/37

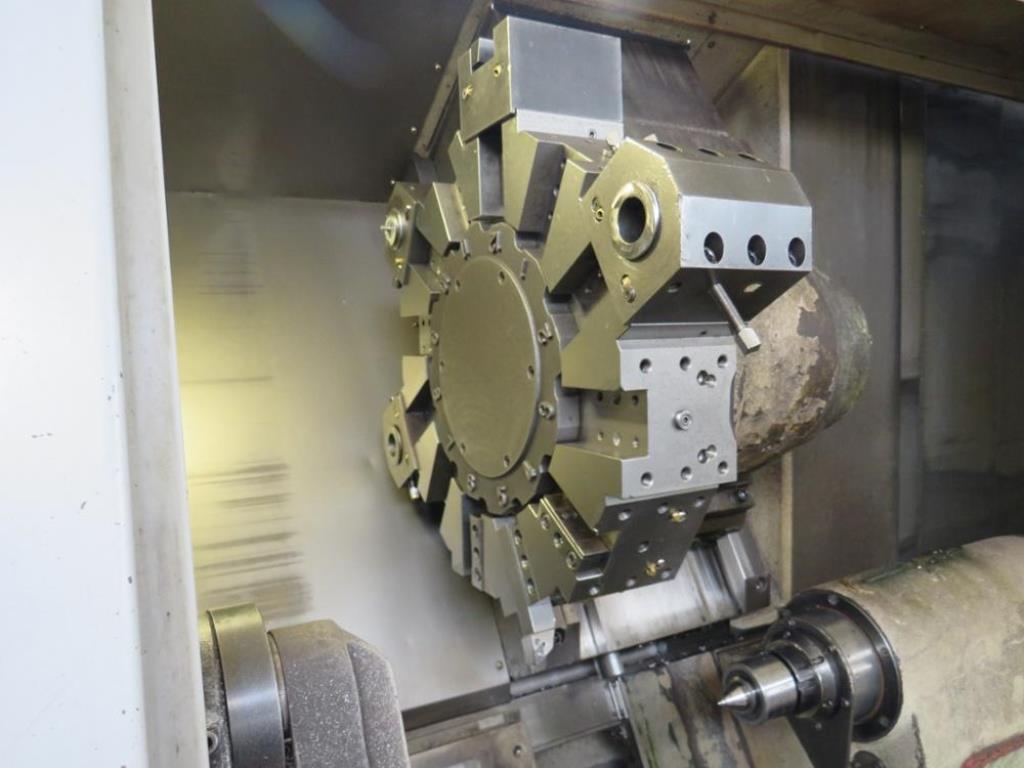

TURRET:
Tools n.12

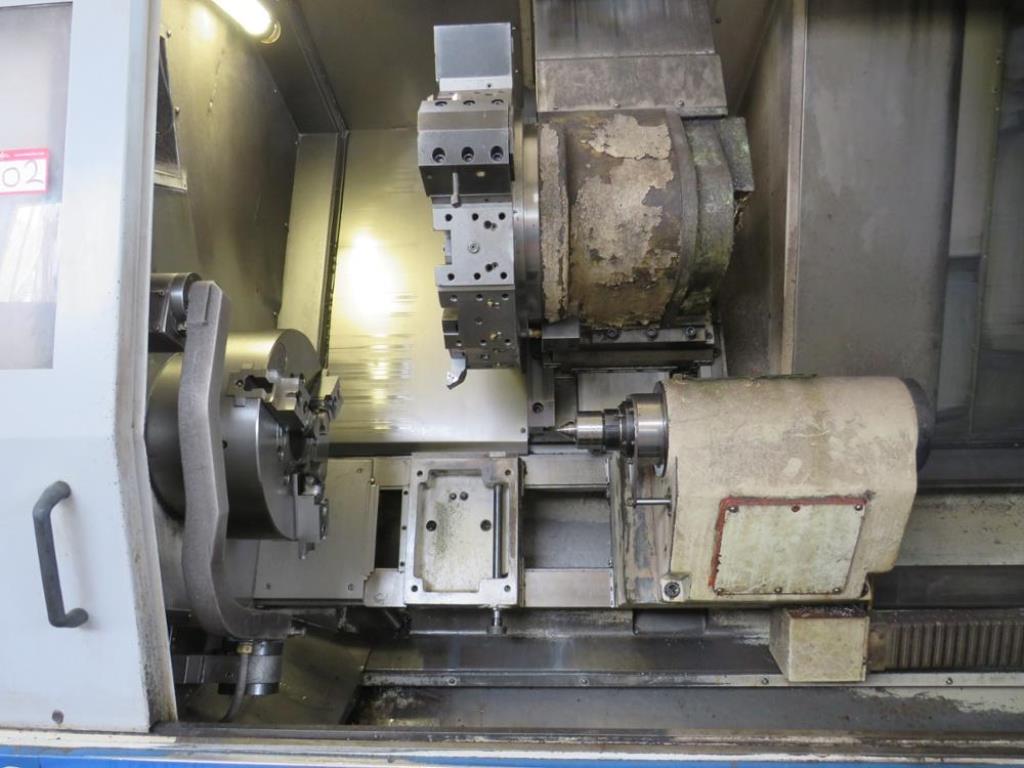

TAILSTOCK:
Quill diameter mm 150
Quill stroke mm 150
Quill cone Morse 6
APPROX. OVERALL DIMENSIONS AND WEIGHT:
Height mm 2587
Floor space mm 4930x2460
Weight Kg 13690
EQUIPPED WITH:

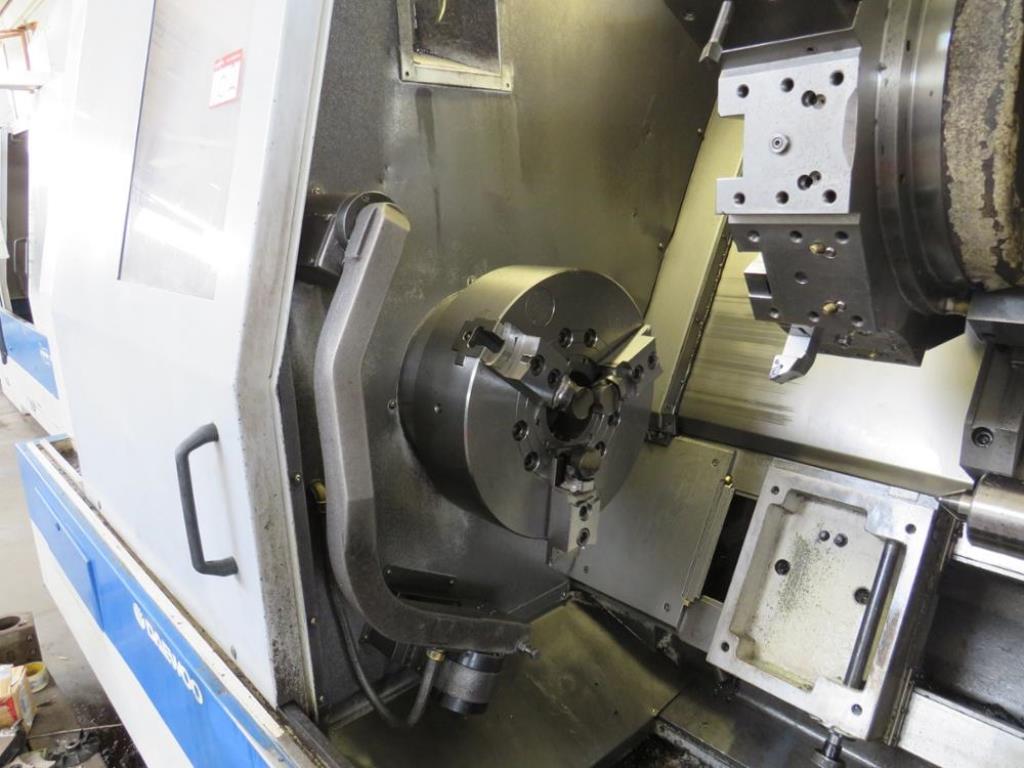

-3 jaws chuck diam. mm 450
-Chip conveyor
USED MACHINE
VIDEOS:
FILL OUT OUR FORM FOR MORE INFORMATION
