CENTRE CINCINNATI ARROW 750
Single pallet
machine center - vertical - Used Machines
CINCINNATI
New04390
New04390
VERTICAL
-CNC ACRAMATIC 2100E
-AXIS X MM.762
-AXIS Y MM.510
-AXIS Z MM.510
-TABLE SIZE MM.950X520
-LOAD CAPACITY KG. 455
-SPINDLE TAPER BT 40
-SPINDLE ENGINE KW 5,5
-SPINDLE TURNS AL MIN. 60-8.000
-SPEED FEEDRATES X,Y,Z MM/MIN 12.000
-SPEED RAPID TRASLATION X,Y,Z MM/MIN. 20.000

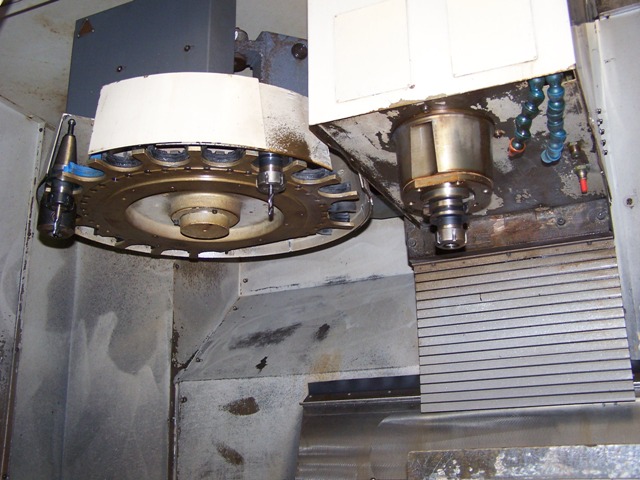

-TOOL CHANGE 21 POSITIONS
-WEIGHT KG.3300
-OVERALL SIZE MM.2400X2650X2700 H
EQUIPED WITH:
-TABLE NIKKEN DIAM MM.300

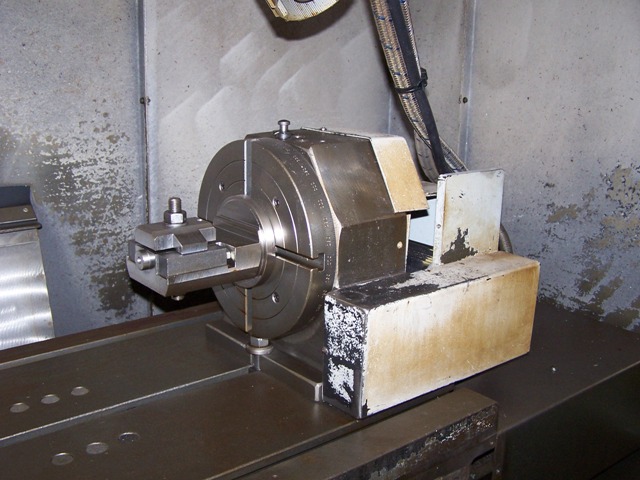

-4TH AXIS
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
