LATHE MORANDO 600x3200
Diameter over 800 mm
lathe conventional - Used Machines
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

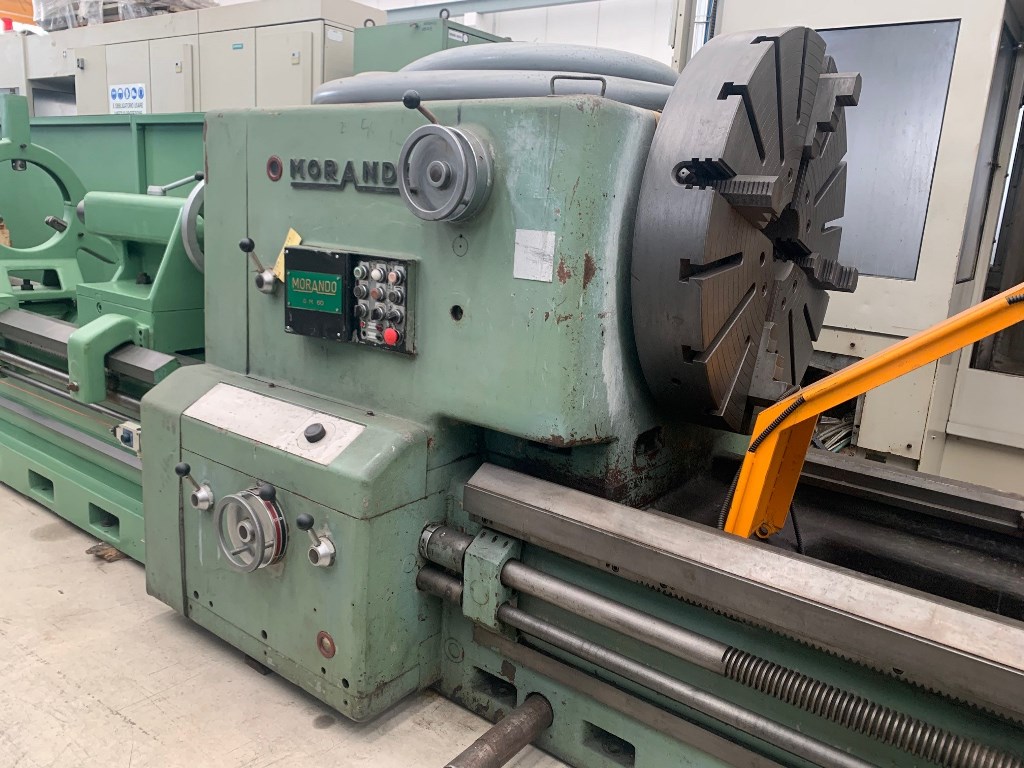

MORANDO
TRN.PAG.O573
TRN.PAG.O573
MOD. SM.6O
MOTOR CC MAX POWER KW 35

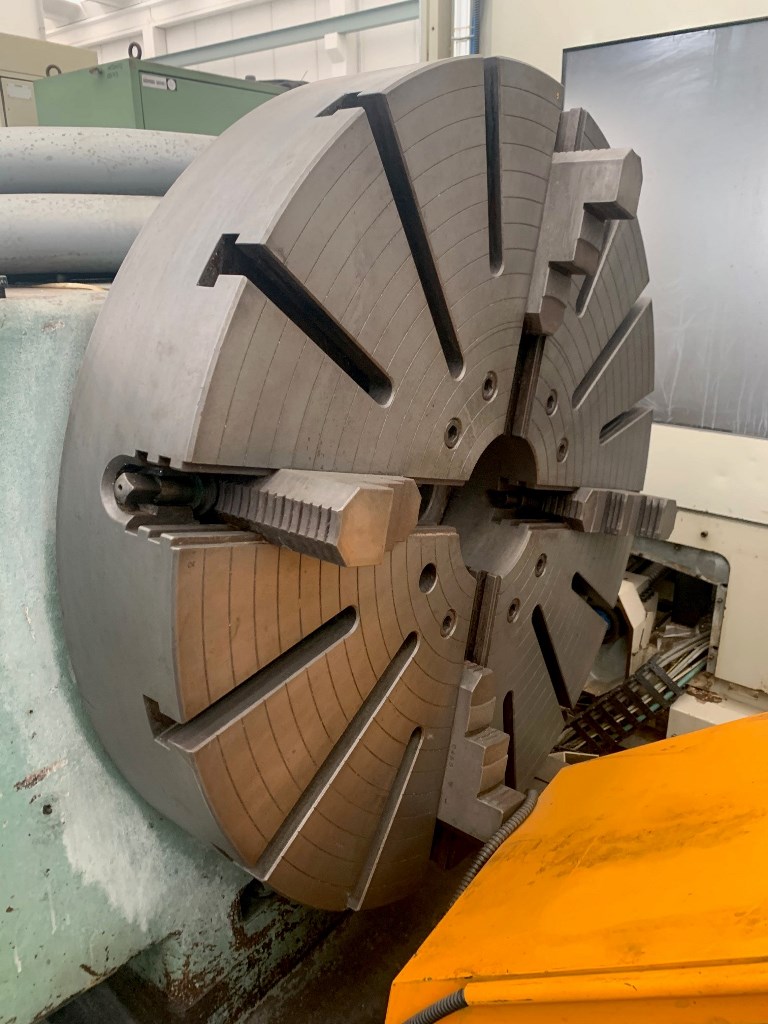

PLATEAU 4 JAW DIAM.MM.1000
GUIDES WIDTH MM.1000
Height of center mm.600
Max diameter swing over bed mm.1200
Max diameter swing over cross carriage mm.760
Distance between center mm.3200
Guides width mm.1000
Spindle bore mm.120
Spindle nose ASA 15'
Spindle speed n°13, Rpm 115-510
Motor power kW 35
Dimensions (LxWxH) 6200x2000x1800
Machine equipped with:
Double guide 4 jaw platform mm.1000
Steady rest mm. 360

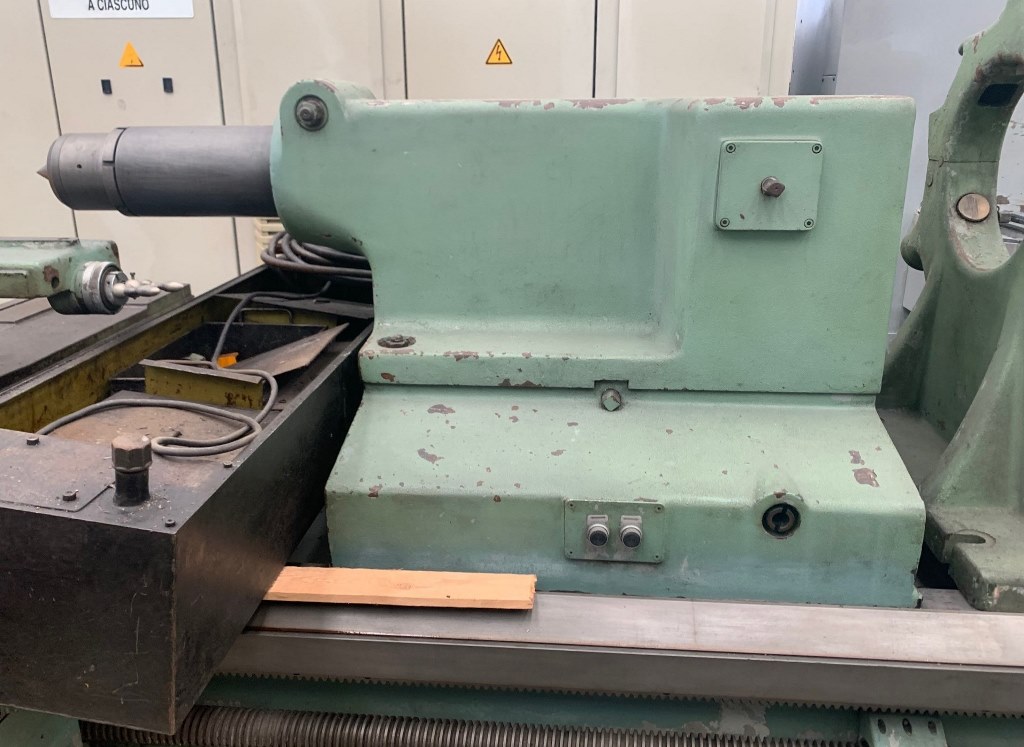

Motorized tailstock
Chip collecting tray
Quick change tools post type F
Tool holders
Coolant system
USED MACHINE
IMAGES:
FILL OUT OUR FORM FOR MORE INFORMATION
