CAPACITY:
Height of centers mm 315
Distance between centers mm 2000
Bed width mm 400
Swing over bed mm 630
Swing over cross slide mm 430
Swing in gap mm 830
Bar passaging mm 100

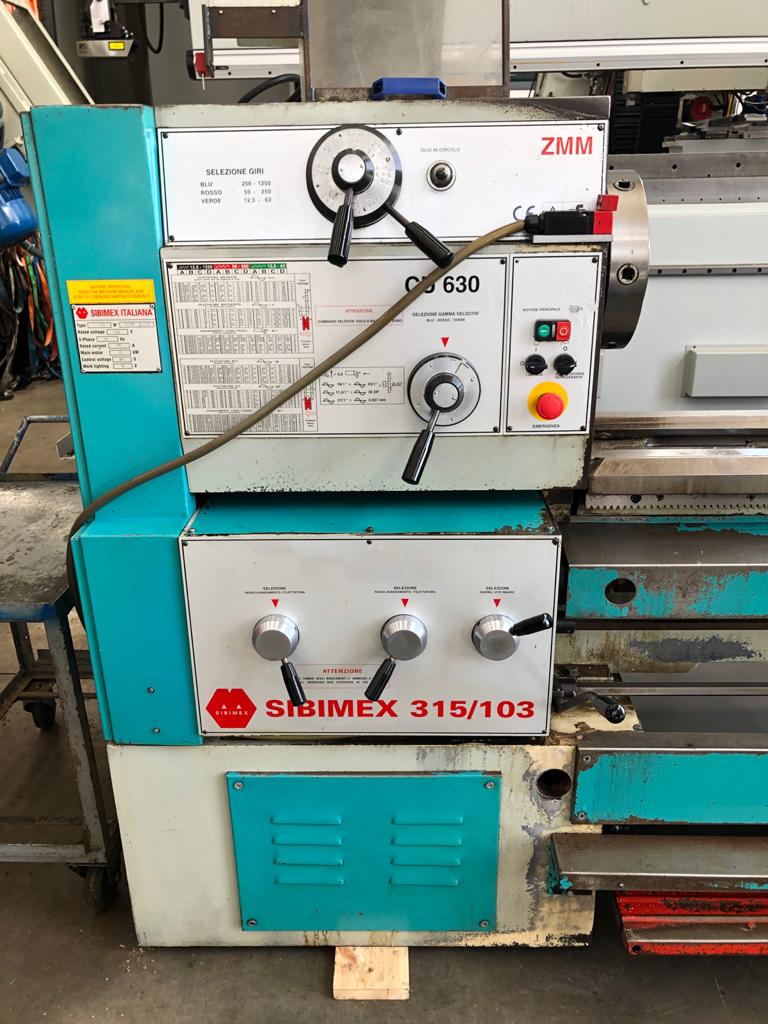

SPINDLE:
Spindle nose 11/8
Spindle bore mm 103
Spindle taper MK 120/107
SPINDLE:
Number of spindle speeds 21
Spindle range:
-1° giri/min. 12,5-63
-2° giri/min. 50-250
-3° giri/min. 250-1250
Main motor power kW 11
FEEDS:
Number of feeds 120
Longitudinal feed range mm/rev 0,04-12
THREADS:
Number of threads 64
Metric thread range mm 0,5-120
Inch threads range tpi 60-1/4
Module threads range Module 0,125-30
DP threads range DP 240-1

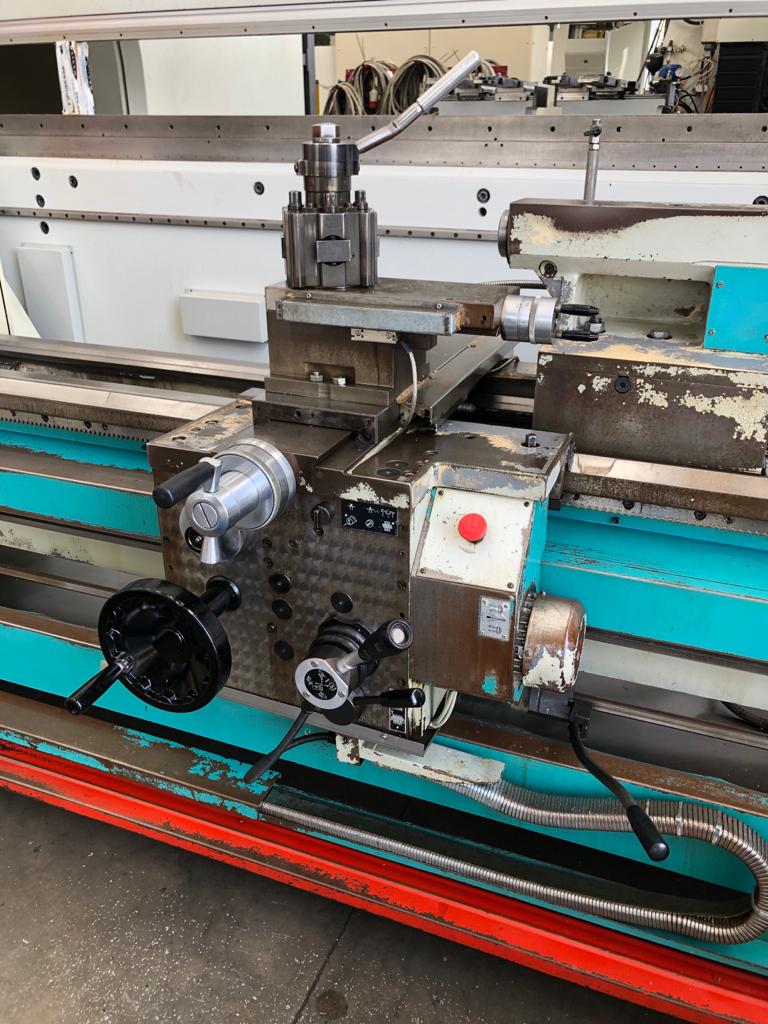

CARRIAGE:
Cross slide travel mm 295/315
Top slide travel mm 130
TAILSTOCK:
Quill diameter mm75
Quill travel mm 230
Quill taper Morse 5
OVERALL DIMENSIONS AND WEIGHT:
Machine length mm 3600
Machine width mm 1250
Machine height mm 1400
Machine weight mm kg 3310
EQUIPPED WITH:
- 3 axis D.r.o.

USED MACHINE
