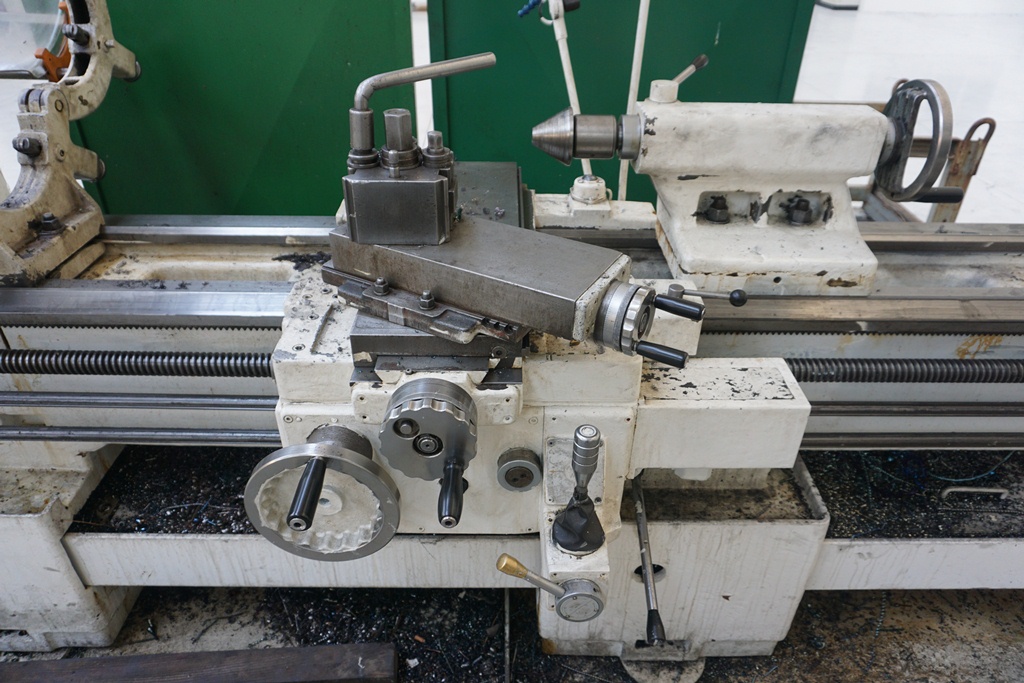

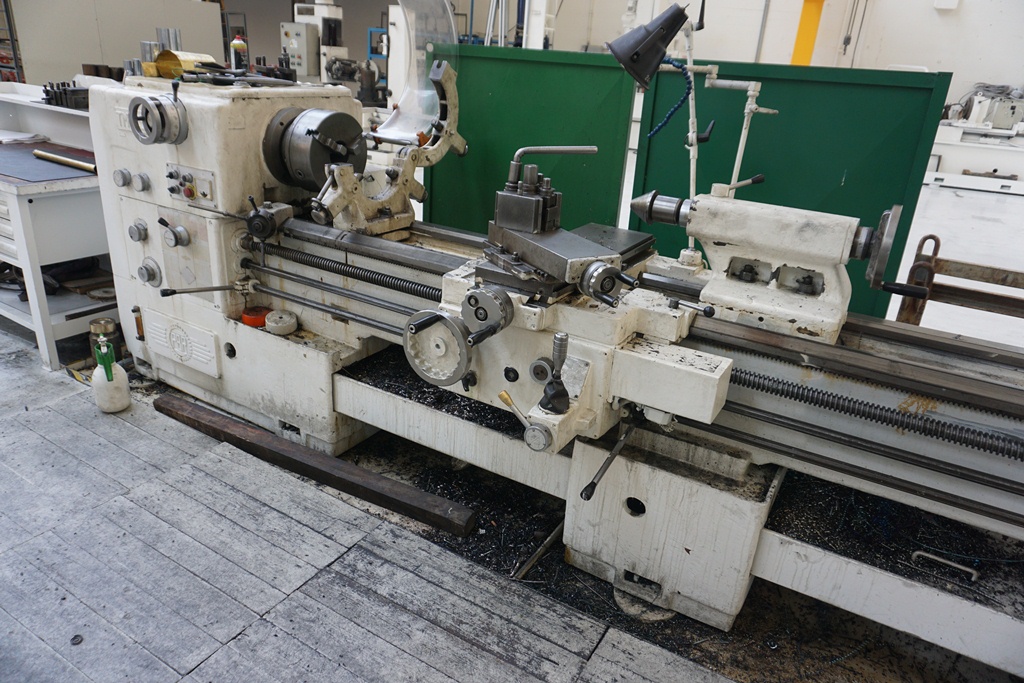

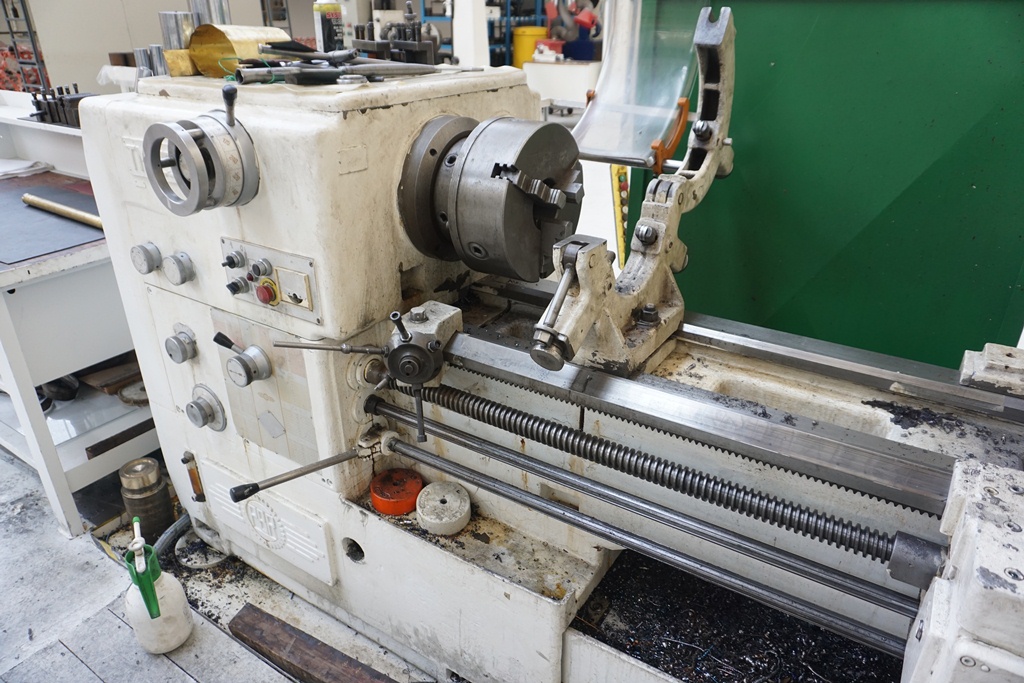

LATHE PBR TM-25 250x4000
Diameter up to 600 mm
lathe conventional - Used Machines
PBR
07398
07398
MOD. TM-25
CAPACITY:
Height center mm 250
Distance between center mm 4000
Max turning diameter on the bed mm 530
Maxturning diametr on the carriage mm 300
Max diameter in the gap mm 780
Widht bed mm 440
Gap lenght mm 350
SPINDLE:
Spindle taper CAM-LOCK Tipo D1 8''
Spindle bore mm 105
Spindle speed n.16 - rpm 15:1500
Motor power HP 15
TAILSTOCK:
Quill diameter mm 80
Quill taper Cono Morse N.5
Quill stroke mm 200
NET WEIGHT:
Approx. net weight Kg 4700

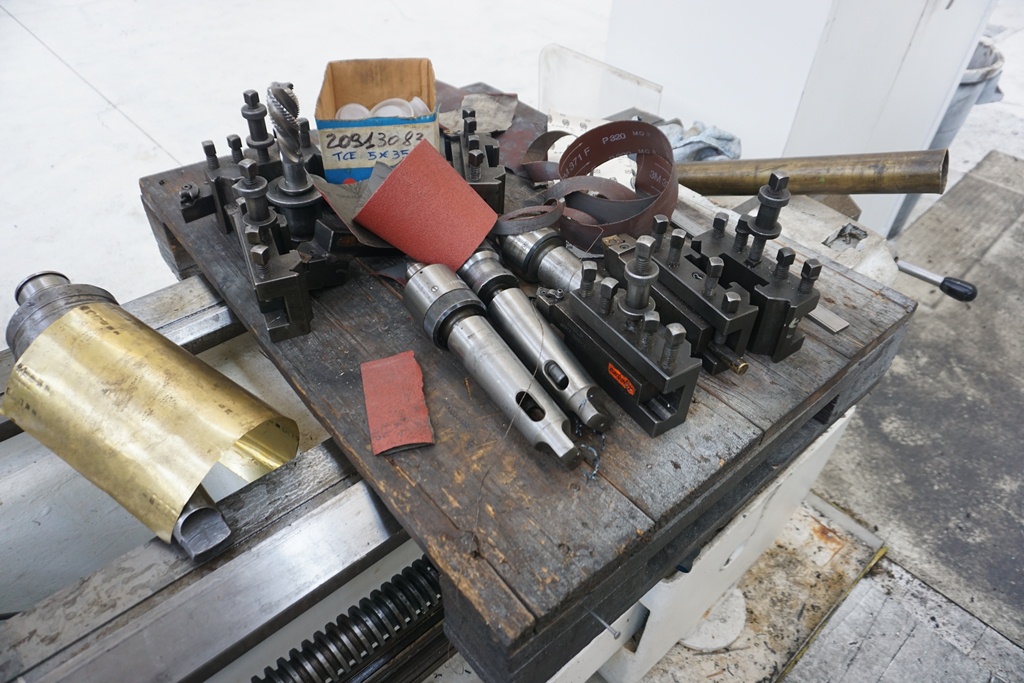

EQUIPPED WITH:
Rapid change turret
Toolholder
Openable rest mm 300
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
