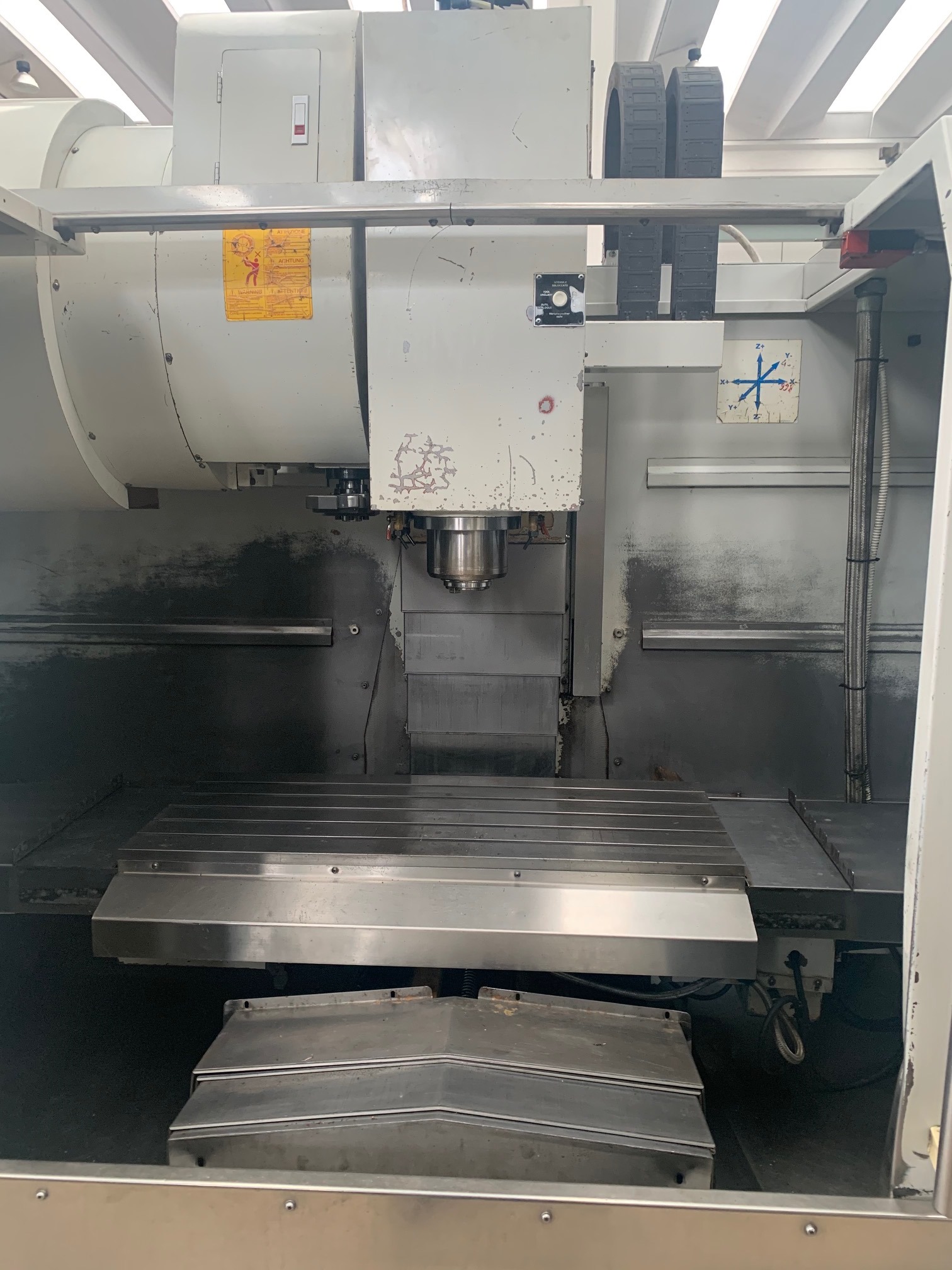

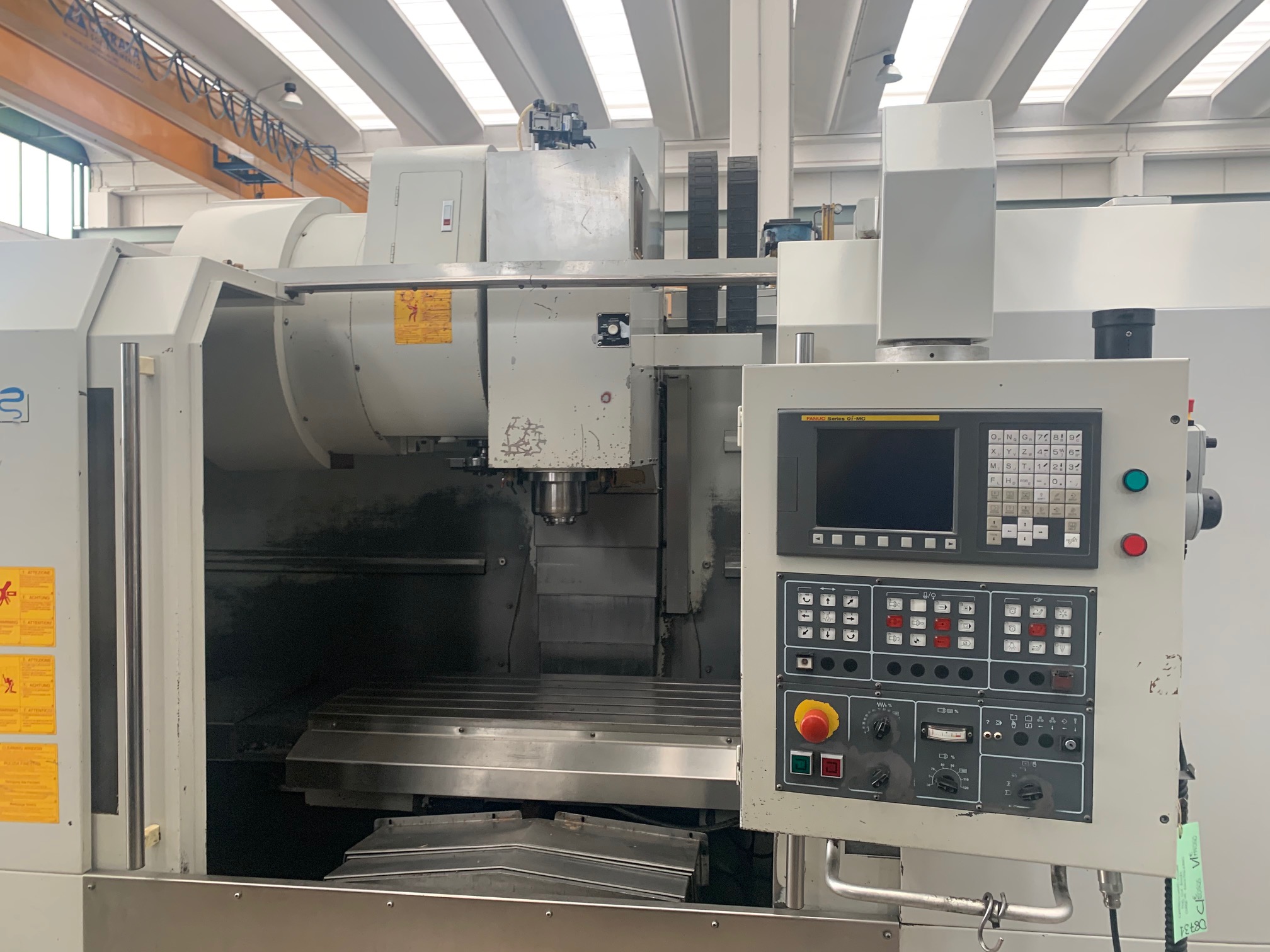

CENTER MACHINE BUFFALO MOD. VM1000
Single pallet
machine center - vertical - Used Machines
MICROCUT
08731
08731

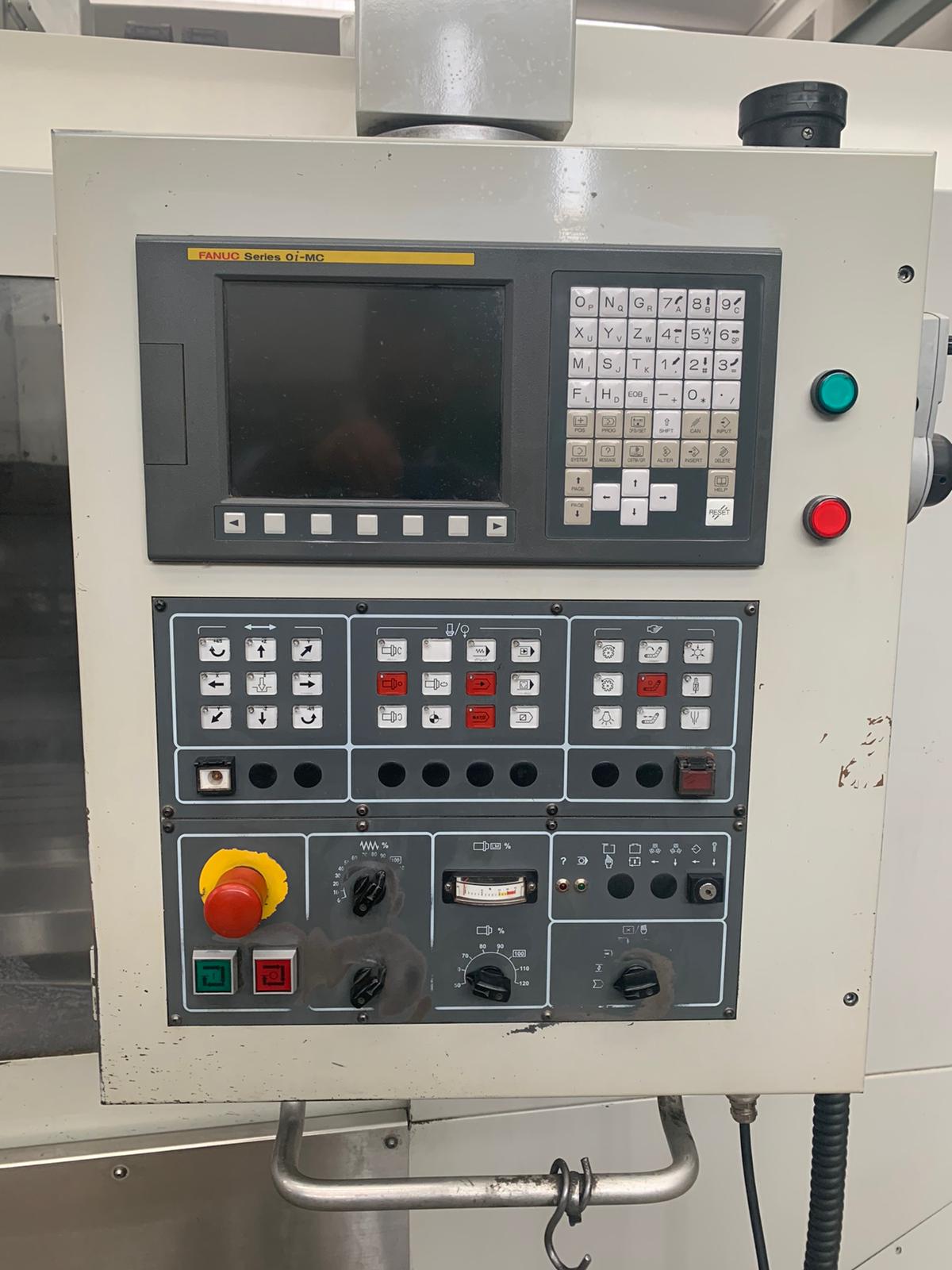

CNC FANUC Oi-MC
TABLE:
Table dimensions mm 1200x500
Max load Kg 1200
STROKES:
X axis mm 1000
Y axis mm 500
Z axis mm 570
SPINDLE:
Cone ISO 40
Tool taper BT/DIN 69871
Speed rpm 10.000
Motor kW 11/15
TOOL CHANGE:
Tool magazine 24 posizioni
Max tool diameter mm 75
Max tool lenght mm 300
Max tool weight Kg 8
MACHINE WEIGHT:
Approx. weight Kg 5200
EQUIPPED WITH:
-High pressure through the spindle
-Chip conveyor
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
