DRILLING SASS TL 1600
Radial
drilling - Used Machines
PONT CANAVESE - TORINO
07418
07418

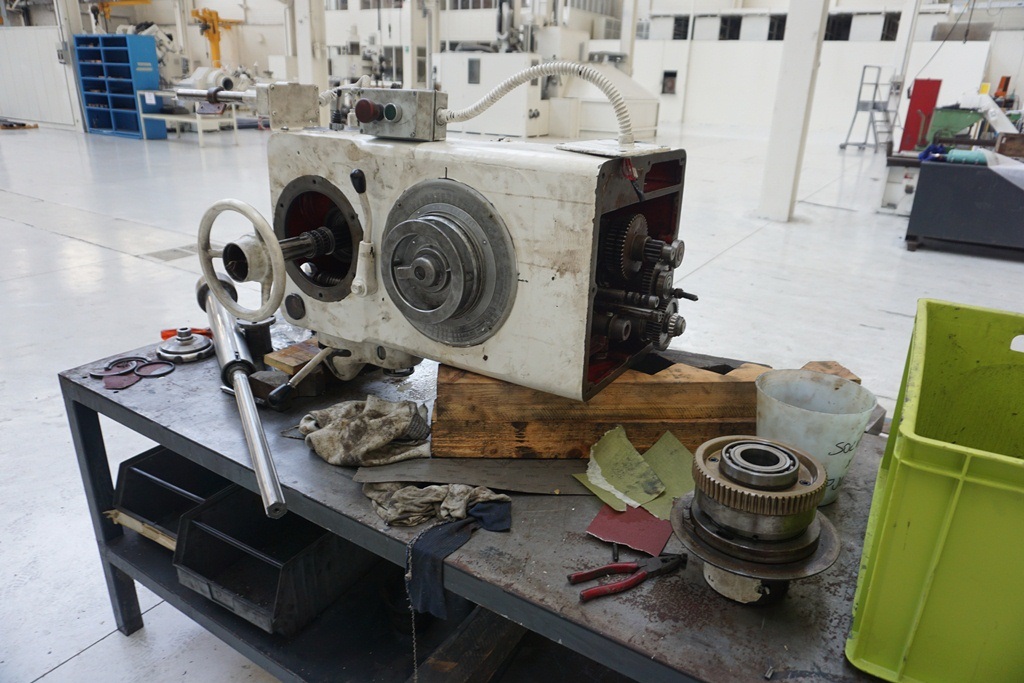

WITH DISASSEMBLED HEAD
CAPACITY:
Steel drilling capacity R = 60 mm 70
Cast iron 20/22 drilling capacity mm 70
SPINDLE:
Sliding quill diam. mm 85
Cone Morse 5
Vertical stroke mm 400
Speed n.16 - rpm 32: 1945
AC motor HP 5.5-7.5
HEAD-ARM:
Max lenght arm 1600 mm
Min./Max drilling radius mm 490-1780
Head movement on the arm mm 1290
Vertical movement of the arm mm 700
Min./max height spindle nose-base plate mm 325:1425
Column diameter mm 360
WEIGHT AND OVERALL DIMENSIONS:
Net weight approx. Kg 4200
Overall dimensions in plan mm 2800x980
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
