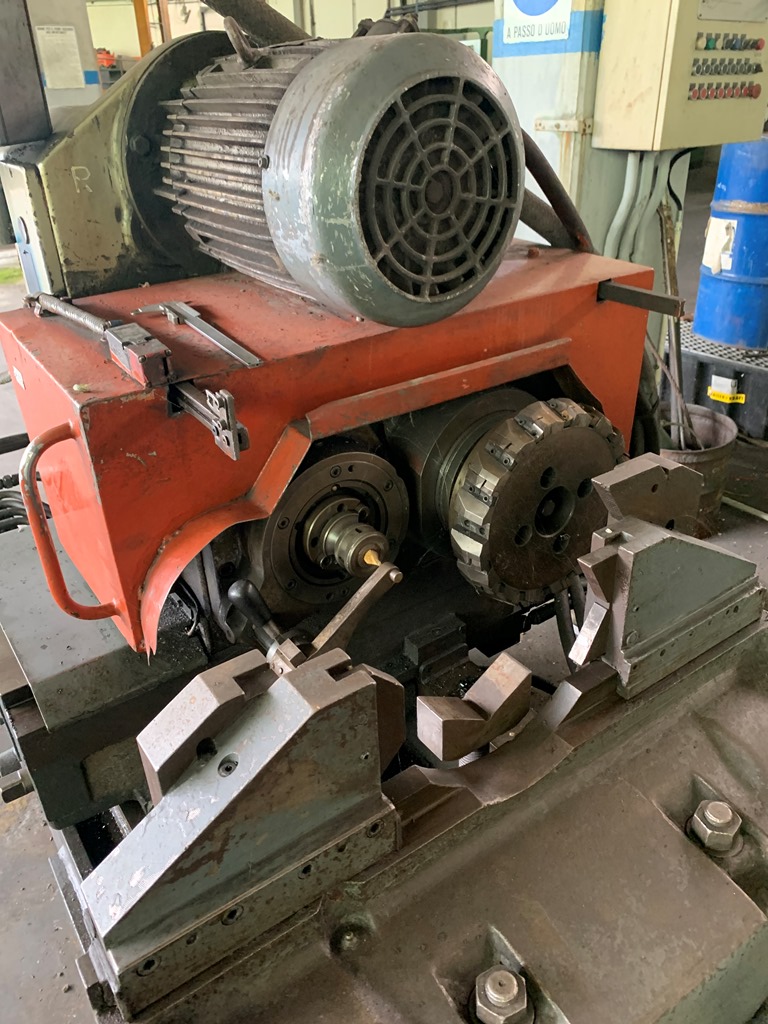

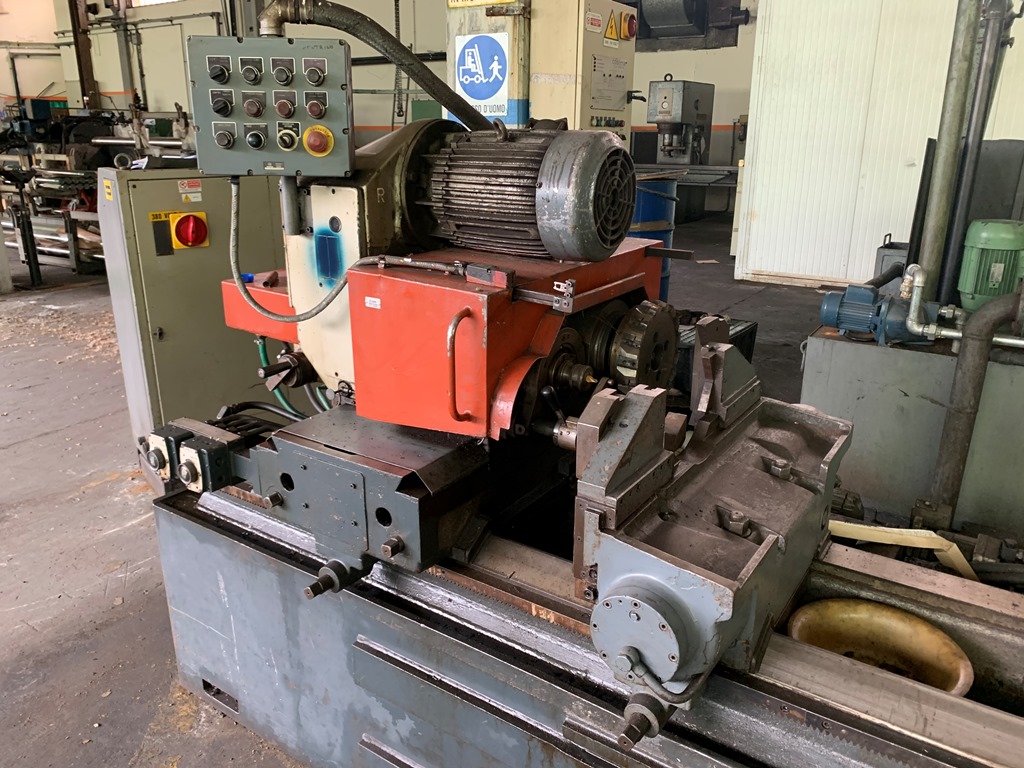

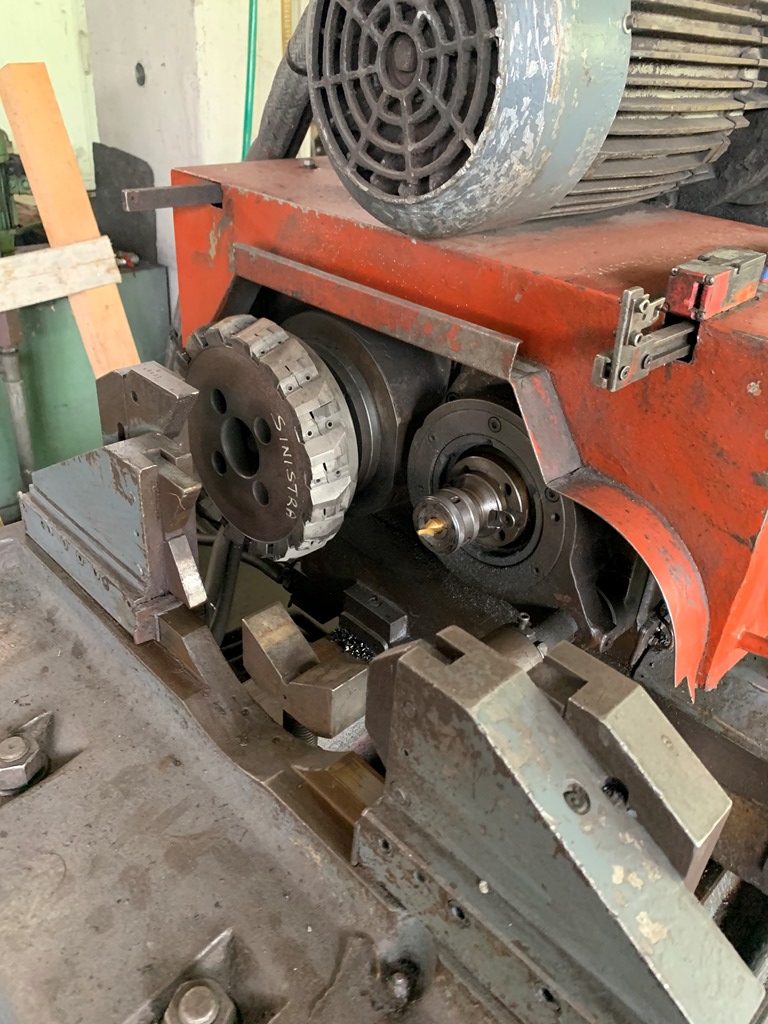

CENTERING MACHINE TOVAGLIERI MOD. HYDROCENTR X2
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
07446
WITH 2 HEAD.
-Max workpiece length allowed for two simultaneous facing and centerings and with workpiece clamped with two vices mm 5000
-Min workpiece length allowed for two simultaneous facing and centering and with workpiece clamped with two vices 170 mm
-Min workpiece length allowed for only two simultaneous centerings and with workpiece clamped with two vices 150 mm
-Max workpiece length allowed for two simultaneous facing and centering and with workpiece clamped with a vice mm 150
-Min workpiece length allowed for two jointings and simultaneous centering and with workpiece clamped with a vice 90 mm
-Min workpiece length allowed for the only two simultaneous centerings and with workpiece clamped with a vice 50 mm
-Max and min. diameter allowed in the vices mm 250-20
-Max hole diameter from center 18 mm
-Min. drilling diameter (for the centering centre) mm 3
-Max allowed stroke of centering spindle mm 60
-Max turning length of centering collar mm 50
-Max and min. turning diameter of centering collar mm 120-20
-Max over-metal on every end of the piece mm 5
-Max diameter of the workpiece allowed between two vices 500 mm
-Rev/min of milling spindles no.122-194-305-490
-Rev/min of centering spindles no.220-315-440-620-870-1220
-Milling spindle with taper ISO 50 DIN 2079
-Centering and blade spindle with ISO 40 DIN 2079 taper
-Total motors power around HP 25,5
USED MACHINE
IMAGES:
