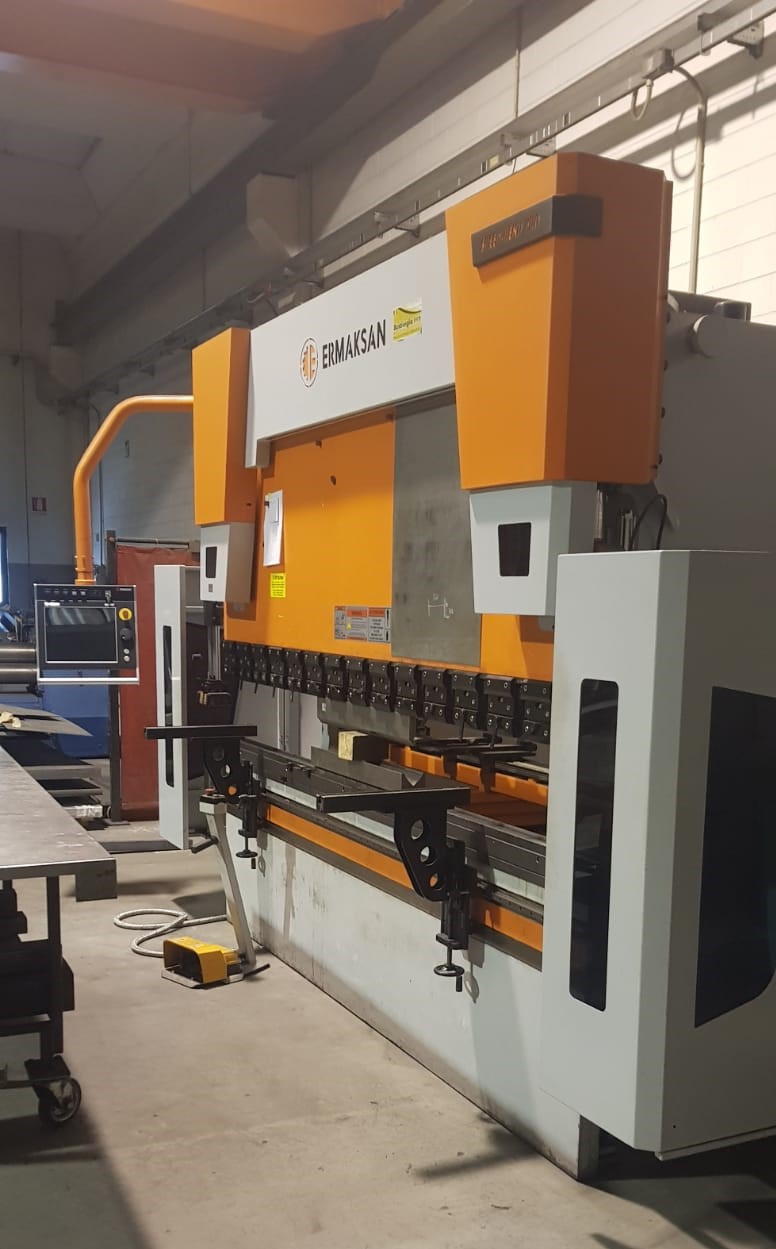

3100x175 6-AXIS TON
SYNCHRONIZED HYDRAULICS
TECHNICAL FEATURES:
Bending power 175 tons
Bending length 3100 mm
Axes Y1-Y2-X-R-Z1-Z2
Distance between columns 2600 mm
Throat depth 410 mm
Daylight 550 mm
Stroke Y1-Y2 275 mm
Table height 900 mm
Travel axis X 800 mm
Travel axis R 250 mm
Main motor power 15 kW
Approach speed 180 mm / sec
Working speed 12 mm / sec
Return speed 190 mm / sec
Dimensions 4250x2150xH2800 mm
Weight 9600 Kg
Voltage 380V 50Hz
GENERAL CHARACTERISTICS:
-HOERBIEGER hydraulic group
-SIEMENS electrical system
-Sensitive optical linear guides up to 0.001 mm
-Synchronized cylinders (Y1 and Y2)
-Lateral protections with CE regulations
-Heavy 4-axis register X, R, Z1 and Z2 (the X axis moves along guides and ball screws)
EQUIPPED WITH:
-1000 mm register
-N.02 additional manual tips

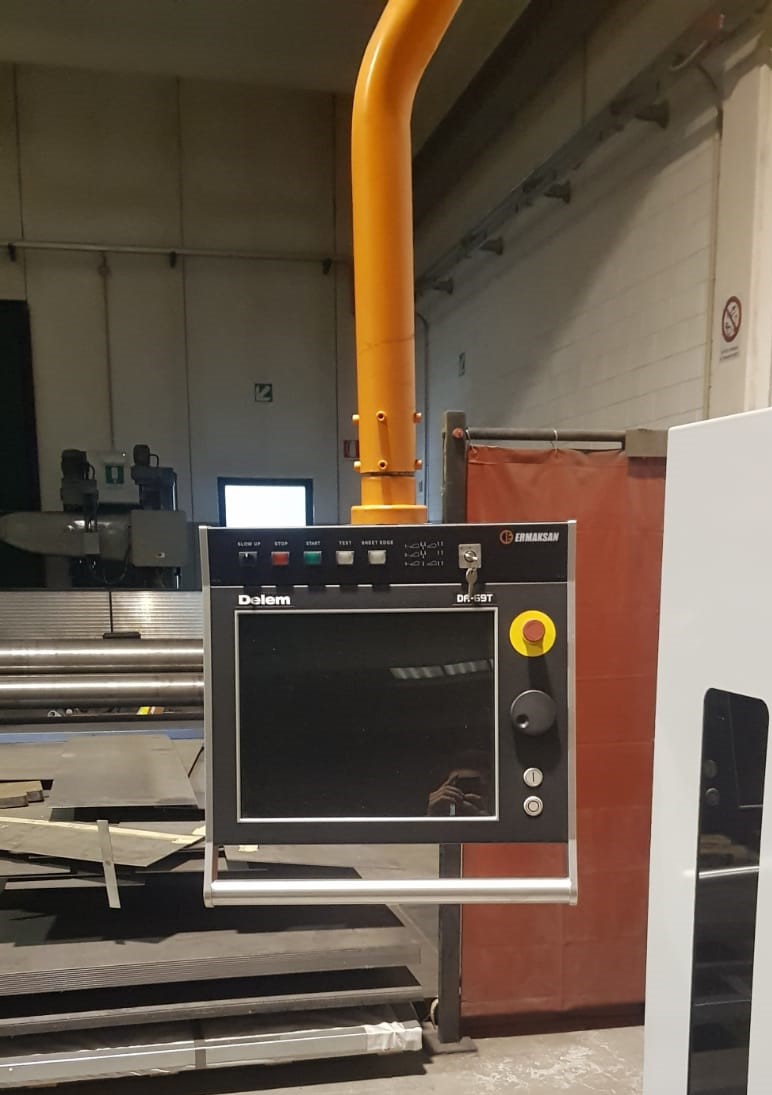

-CNC 2D videographic Touchscreen: Delem DA-66T or CNC ESA S650, including off-line SW (Profile 2D Lite for Delem)
-Motorized mechanical crowning table
-Two rear safety photocells
-DSP AP safety laser barriers with MCS (New Electronics)
-N.02 Front support arms sliding along the entire length of the machine and easy to adjust
-Intermediate quick locking with lever

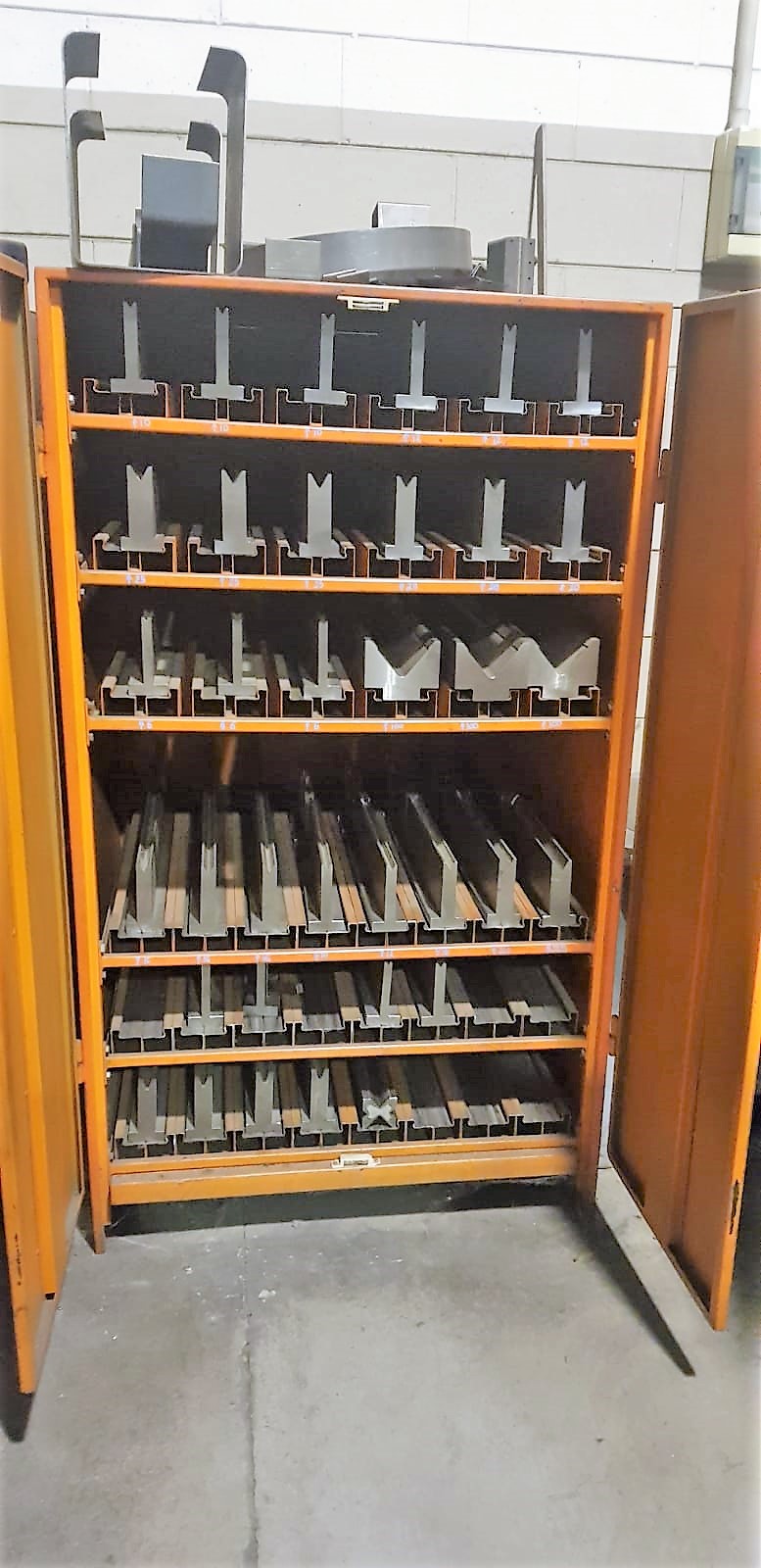

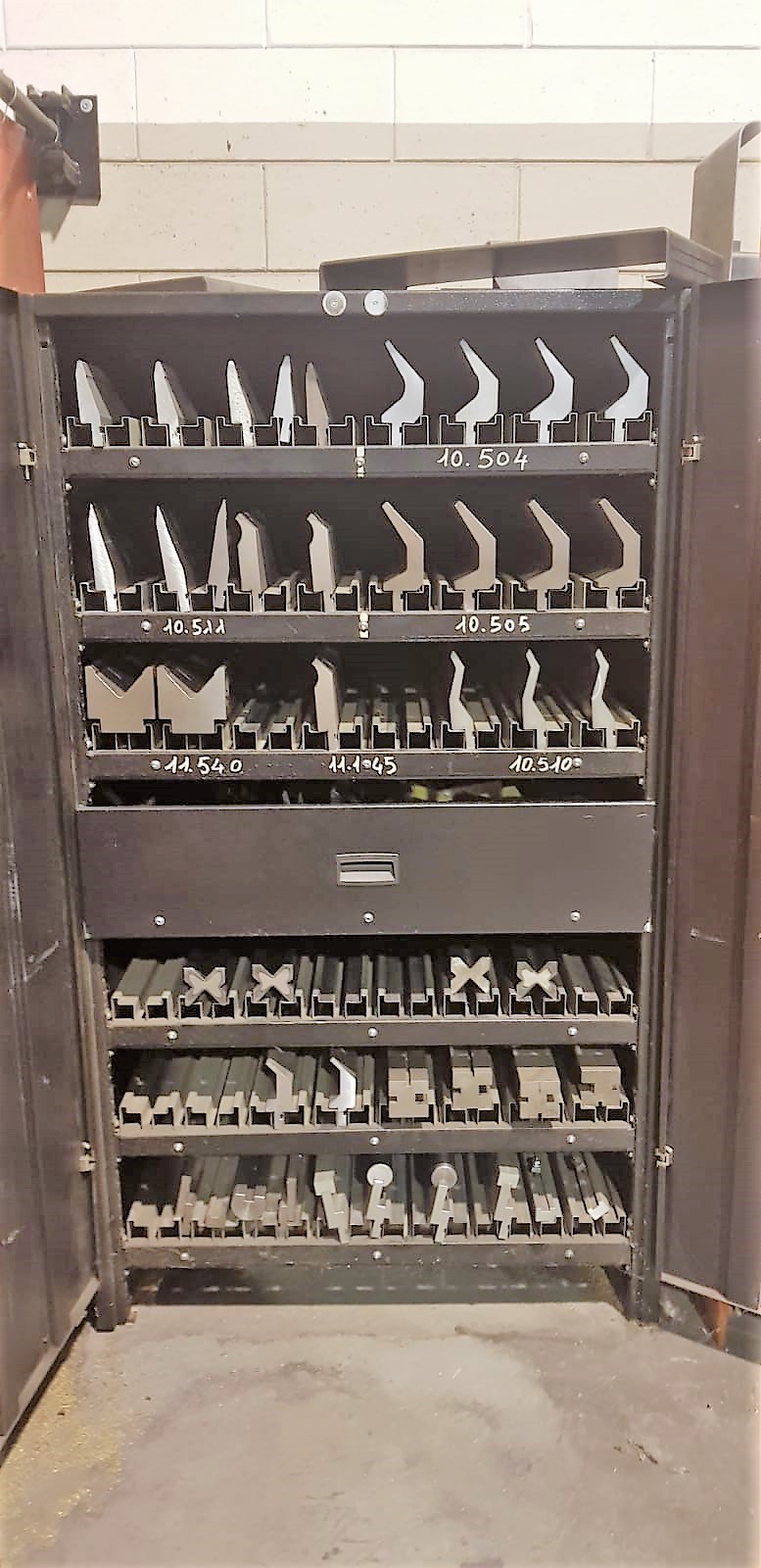

-Top tools
-Lower tools

USED MACHINE
YEAR 2018
