CENTER EUMACH MOD. SUMO 610
Single pallet
machine center - vertical - Used Machines
.jpeg)
.jpeg)
.jpeg)
EUMACH
08749
08749

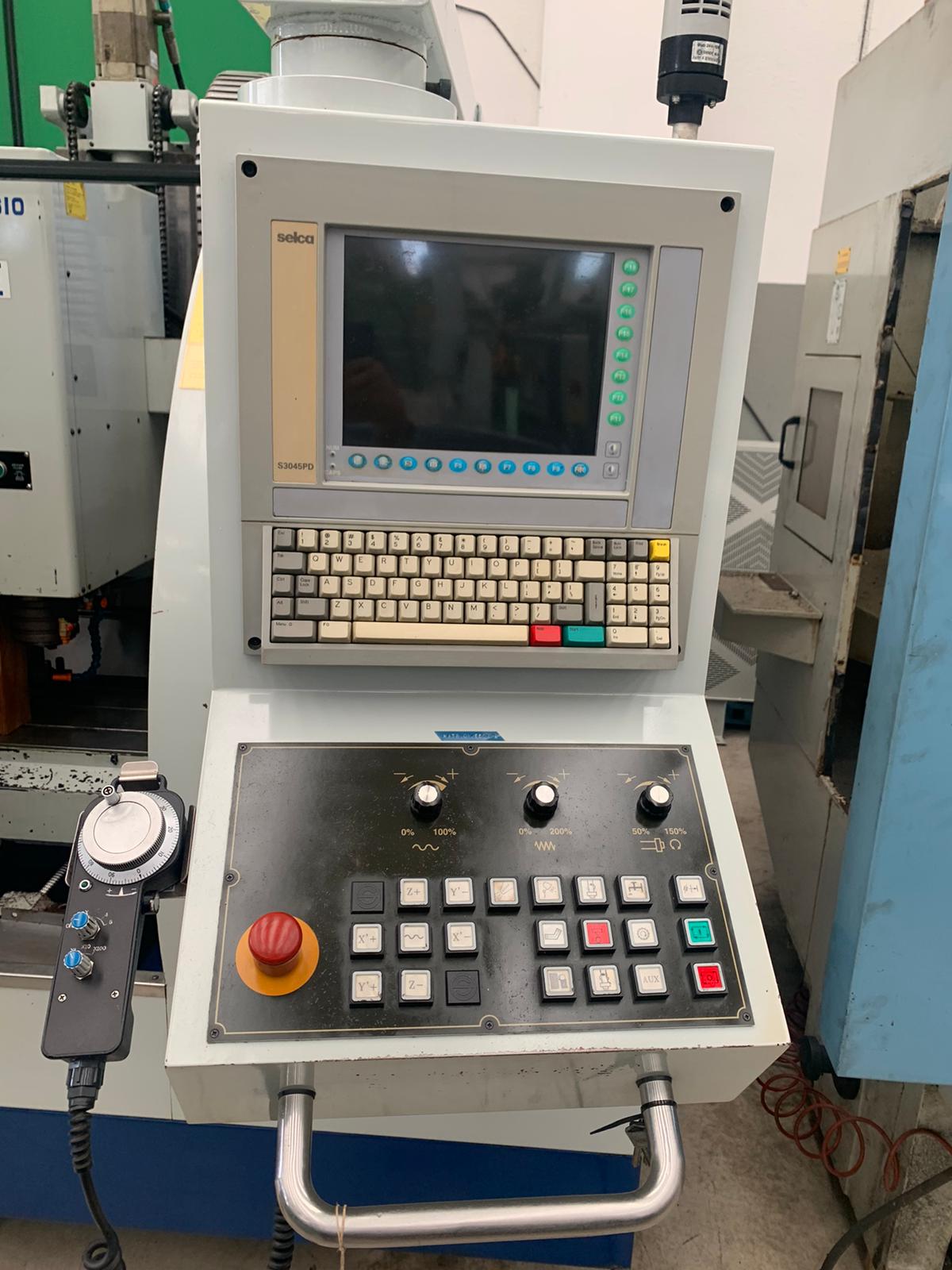

CNC SELCA S3045PD

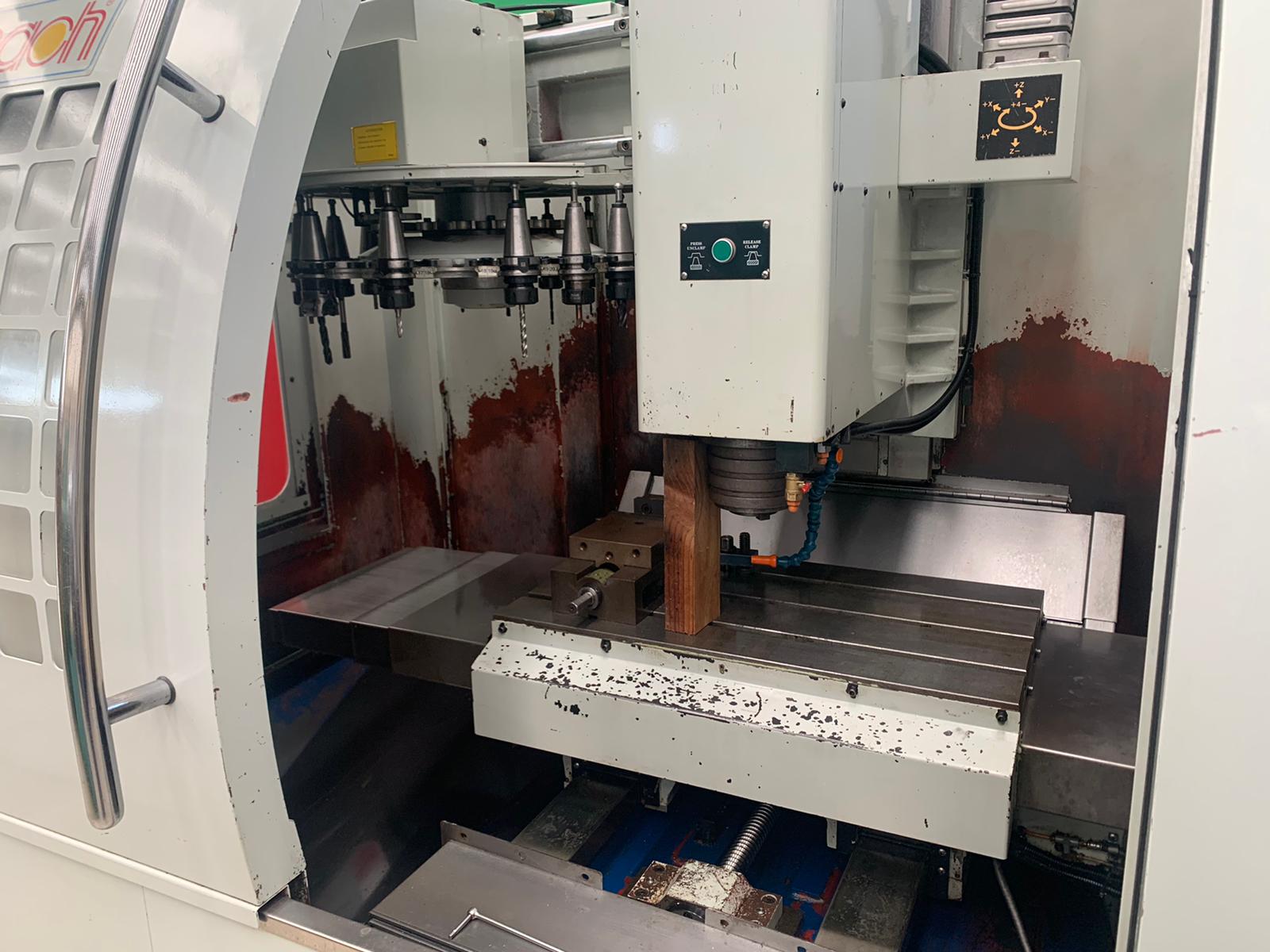

Table dimensions mm 800x450
Max table load Kg 400
T-slots (n. x dimensions) 3x18
Distance between spindle nose/table plane mm 100-600
Axis X stroke mm 600
Axis Y stroke mm 480
Axis Z stroke mm 500
Spindle cone BT 40
Spindle speed rpm 8000
Spindle motor power kW 7,5
Tool magazine 24 positions
Max tool dimension (diam.xlenght) mm 80x250
Max tool weight Kg 7
Machine weight Kg 4000
Overall dimensions 2160x2280x2490H
EQUIPPED WITH:
-Chip conveyor
USED MACHINE
IMAGES:
