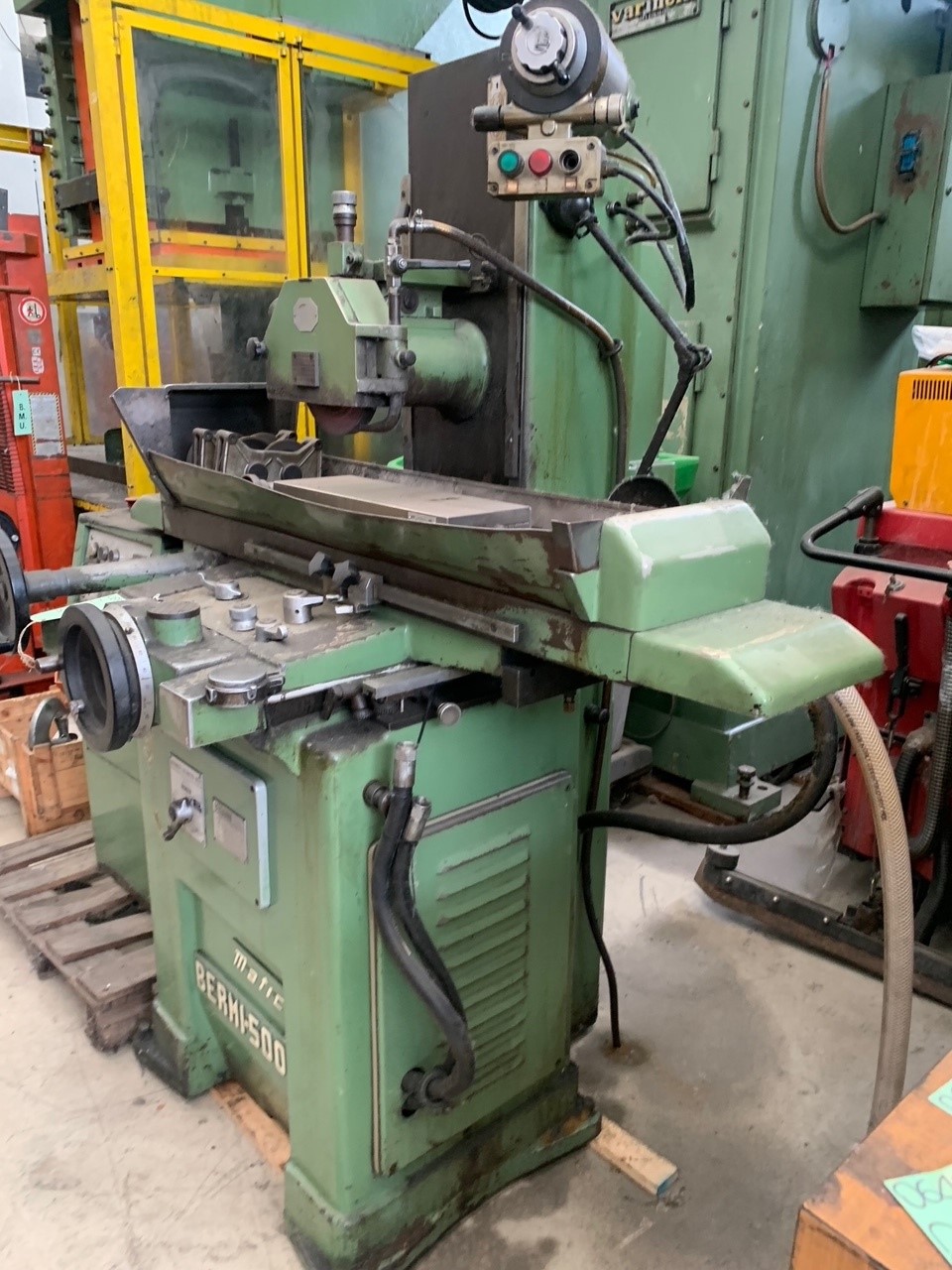

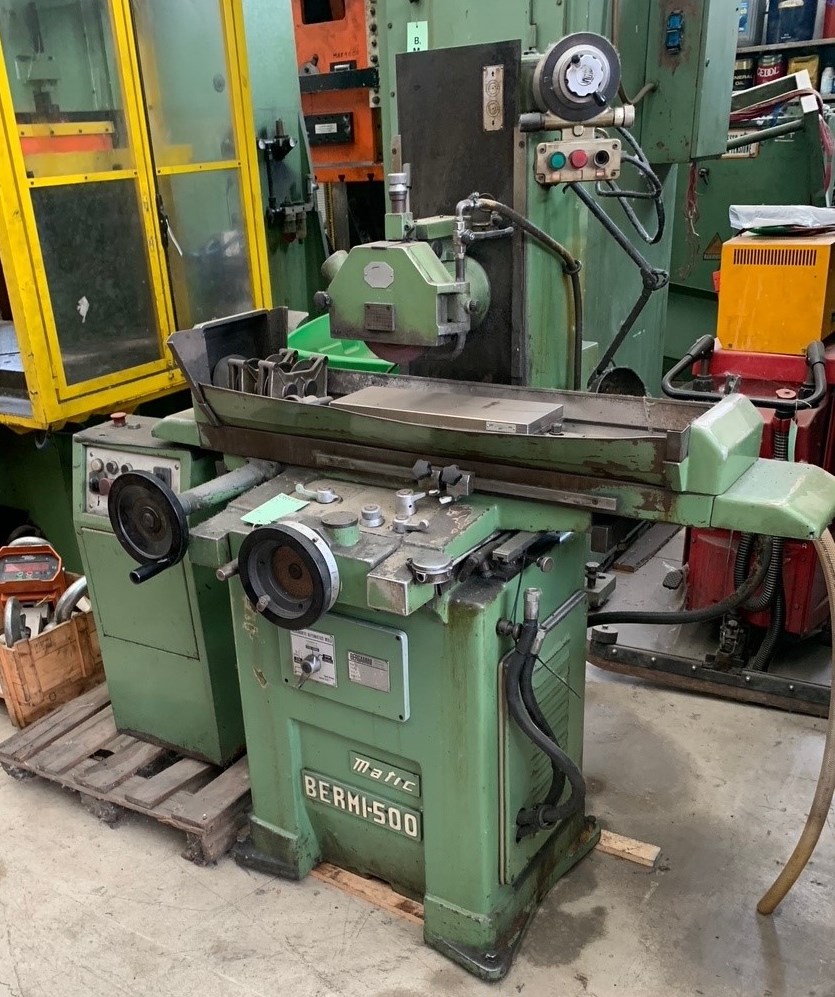

MOD. BERMI 500 MATIC

Useful table surface 500x180 mm
Max longitudinal stroke manual and automatic 505 mm
Cross stroke manual and automatic 200 mm
Vertical stroke between table axis and working surface 350 mm
Automatic longitudinal table speed Mt. 0 a 20 al 1'
Cross feed range impulse from 0 to 15 mm.
Cross feed range continuous Mt. from 0 to 5 al 1'
Handwheel cross feedrate 1 div. 0.02 mm
Handwheel with millesimal system 1 div. 0.002 mm
Vertical handwheel graduate 1 div. 0.002 mm
Wheel size (diameter-thickness-bore) 220x20 ÷ 40x50 mm
Wheel motor power at 3000 RPM - 2,2 Kw
Overall dimension x height 1100 x 1300 x 1750 mm
Net weight (only machine) ca. 1150 Kg.

USED MACHINE
