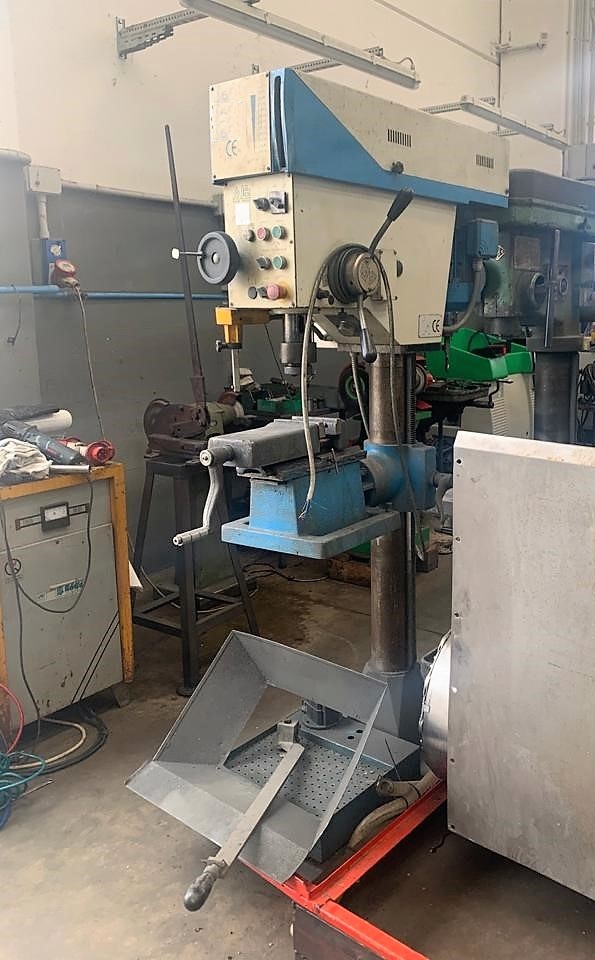

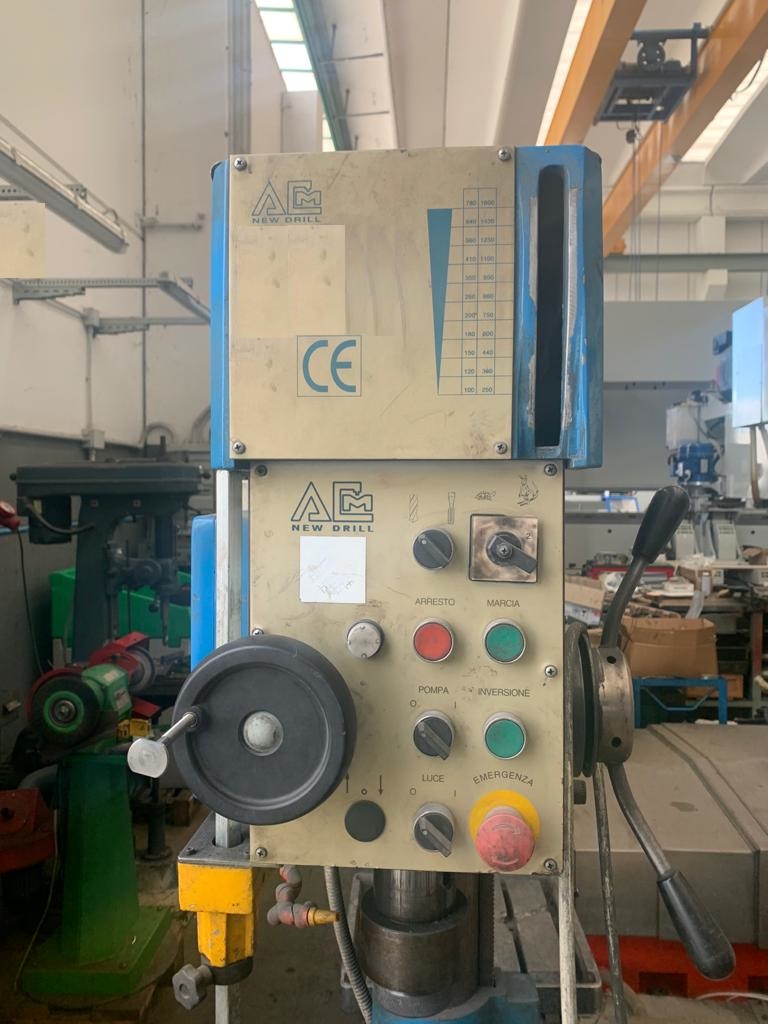

DRILLING ACM NEW DRILL 40
Column/bench type
08784
SPEED VARIATOR
TAPPING WITH TELEINVERTER
SPINDLE AUTOMATIC LOWERING
TILTING TABLE WITH VICE
Drilling capacity on steel mm 40
Drilling capacity on cast iron mm 42
Tapping on steel su acciaio M24
Tapping on cast iron M28
Distance between column-spindle axis mm 315
Distance between spindle-table mm 680
Base mm 450x660
Working table dimensions mm 330x330
Column diameter mm 124
Distance between base-spindle mm 1130
Sspindle speed n.12 / rpm 100-2400
Spindle taper CM 4
Quill diameter mm 72
Quill stroke mm 130
Motor power kW 1.2/2.2
Spindle quill auotomatic lowering m/min 0.05-0.15-0.2
Approx. weight Kg 395
Approx. overall dimensions (lenghtxhxwidth) mm 450x1940x660
EQUIPPED WITH:
-Cooling system
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
