CENTER MIND DART
Single pallet
08814
MOD. VMC 1000 A - TWIN SPPED

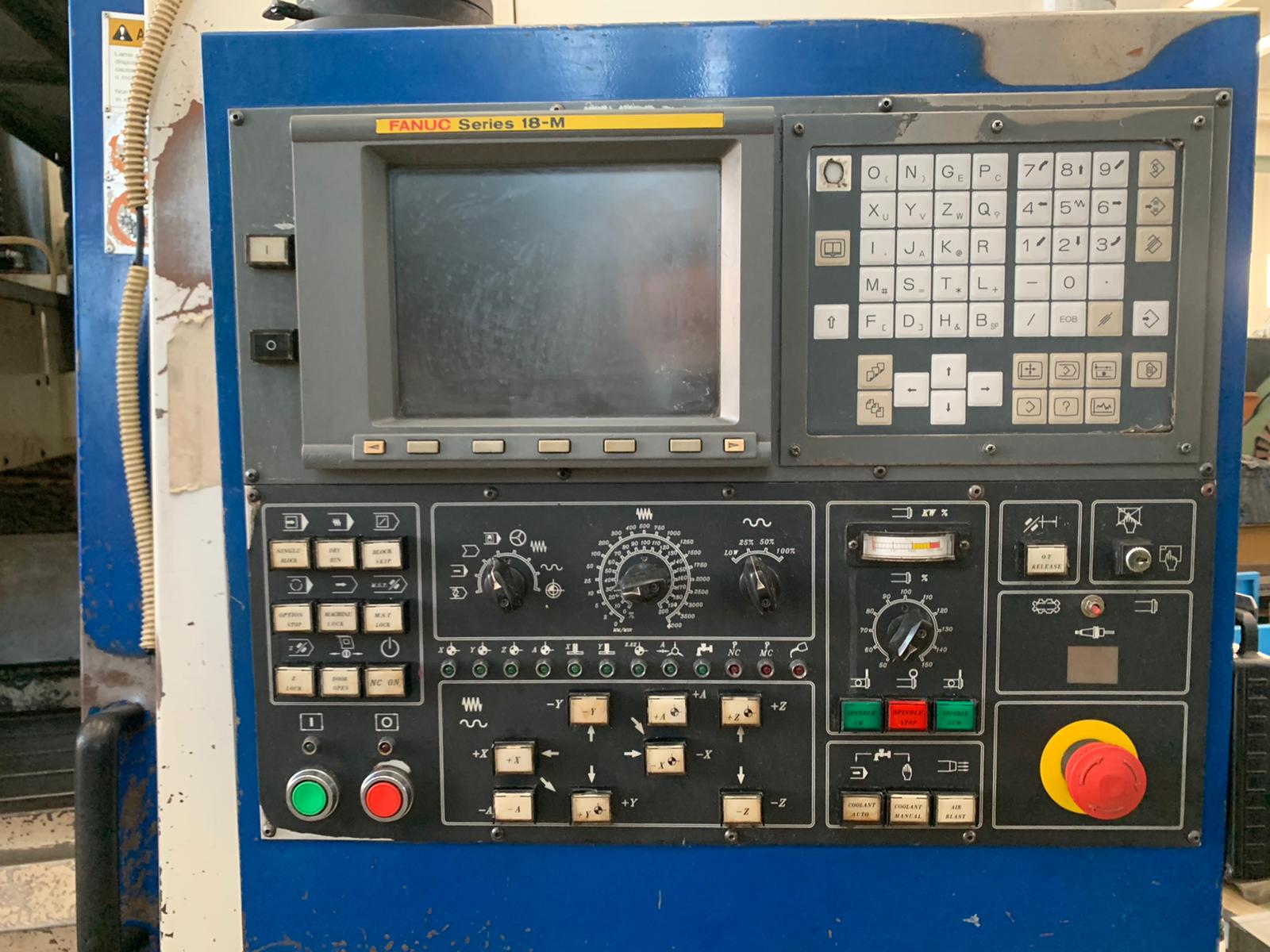

CNC FANUC 18 MC

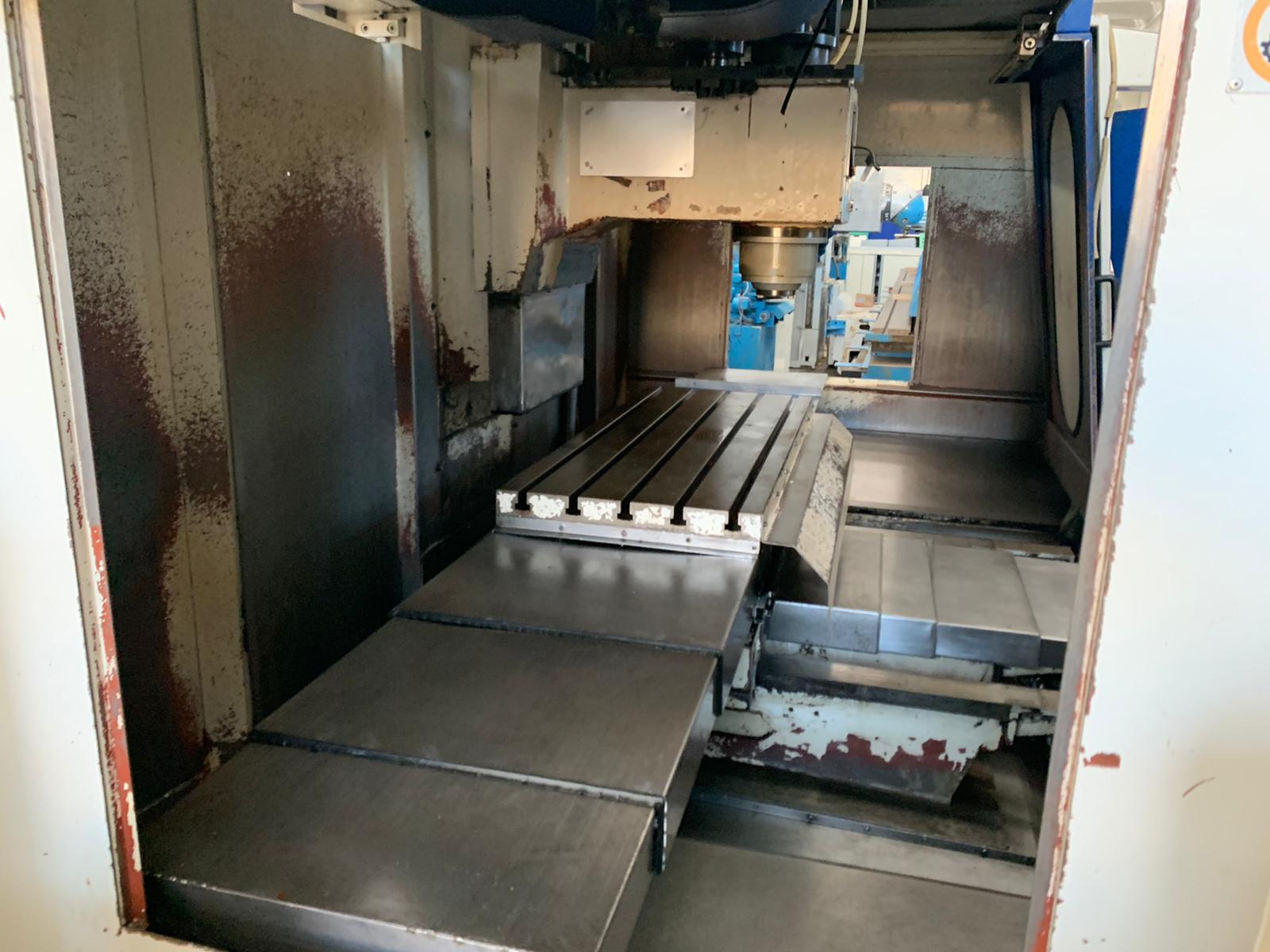

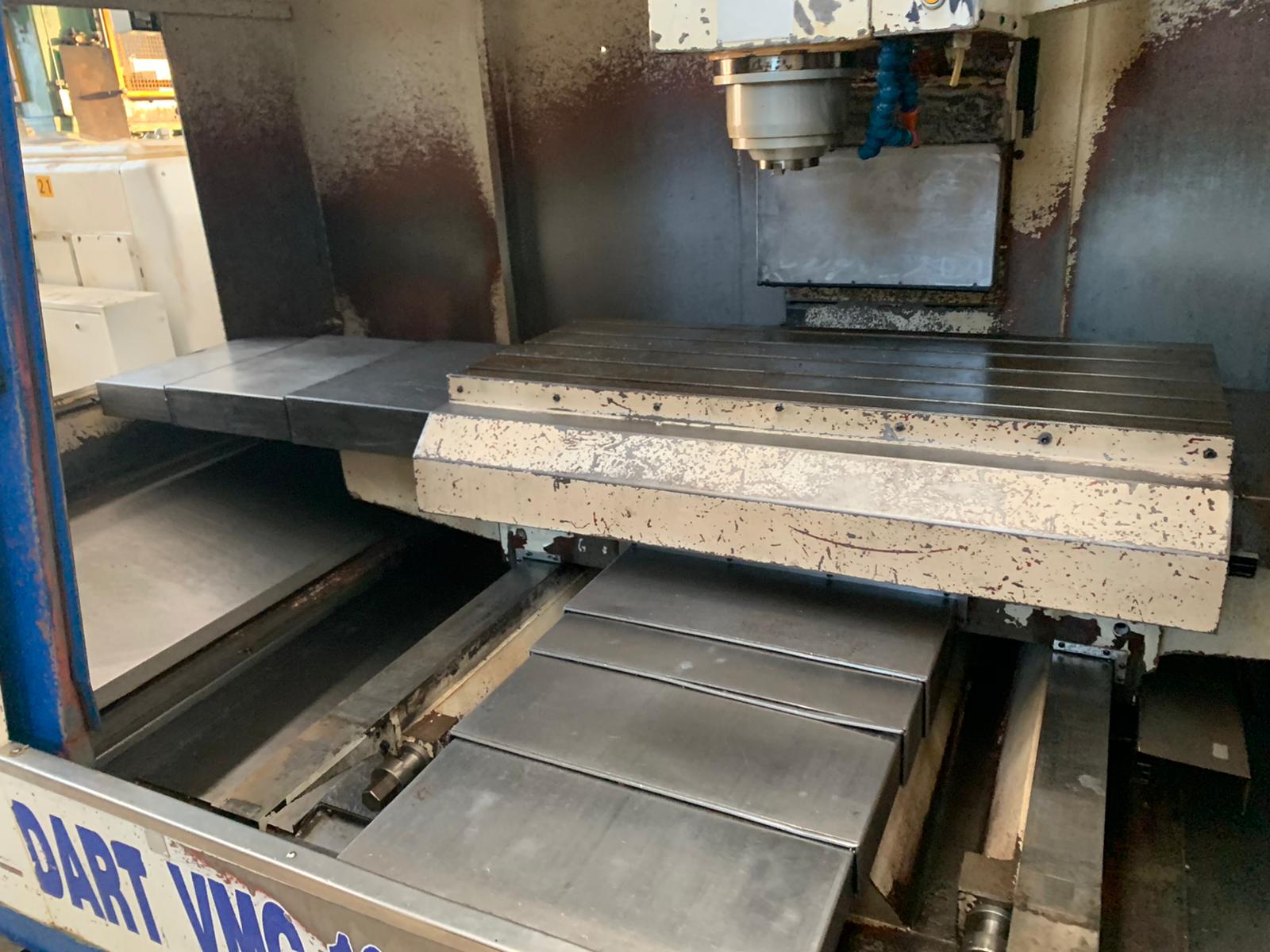

TABLE:
Working surface mm 1220x500
Max load Kg 1500
CORSE:
Axis X longitudinal stroke mm 1100
Axis Y cross stroke mm 530
Axis Z vertical stroke mm 640
Distance between spindle nose/table mm 150:790
Distance between spindle axis/column mm 550
HEAD:
Spindle diametr mm 75
Sindle nose ISO 40/BT 40
Spindle speed:
With gear transmission, range change ZF rpm 60:8000
Motor power kW 7.5/11
TOOL MAGAZINE WITH EXCHANGE ARM:
Tool magazine capacity n.24
Max tool weight Kg 10
Max tool dimensions mm 75x320
Tool taper BT40
VARIOUS:
Machine weight Kg 6300
Total power required kVA 25
Space required mm 3300x3300
EQUIPPED WITH:
-High pressure
-Chip conveyor
-Conveyor tanks
USED MACHINE
IMAGES:
