LATHE BIGLIA MOD. B501S
2 axis
08645

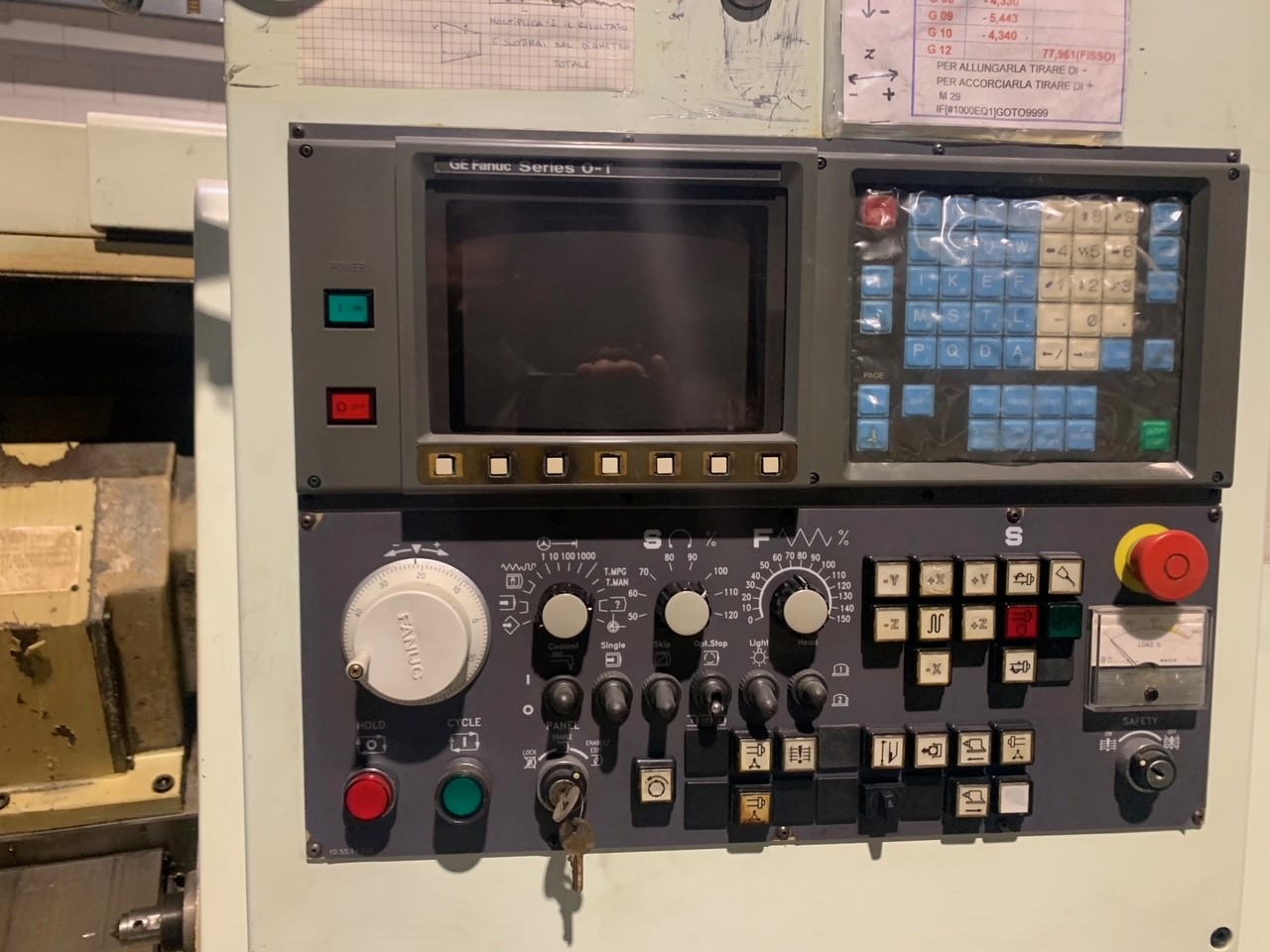

CNC GE FANUC serie O-T
CAPACITY':
Max bar turning diameter 54-68 mm
Max pick-up turning diameter mm 250
Max turning length 500 mm
Max swing diameter mm 520
SPINDLE:
Spindle speed rpm 40-4000
Spindle nose ASA 6 ''
Spindle bore 80 mm
Front bearing internal diameter mm 110
Motor power kW 11/15 (50%)
COUNTER SPINDLE:
Spindle speed rpm 40-4000
Spindle nose ASA 5 ''
Spindle bore 52 mm
Bar passaging 43 mm
Front bearing internal diameter mm 80
Motor power kW 5,5 / 7,5 (50%)

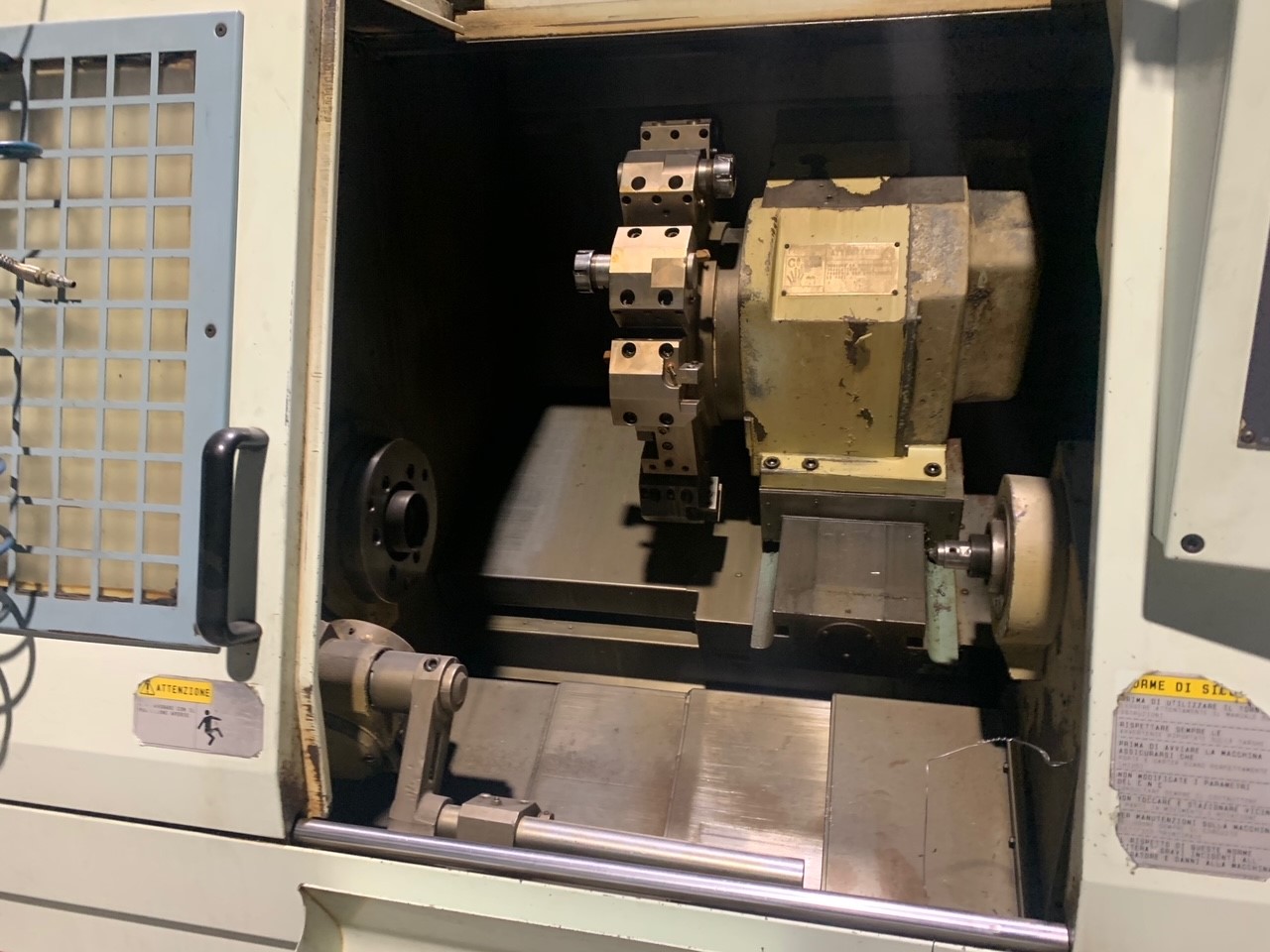

TURRET:
Number of positions 12
AXES:
X axis travel mm 210+5
Z axis travel mmn 500+10
B axis travel mm 505+5
DIMENSIONS AND WEIGHT:
Overall dimensions (with chip conveyor) mm 4000x1940x1960H
Weight (with chip conveyor) Kg 4900
EQUIPPED WITHI:

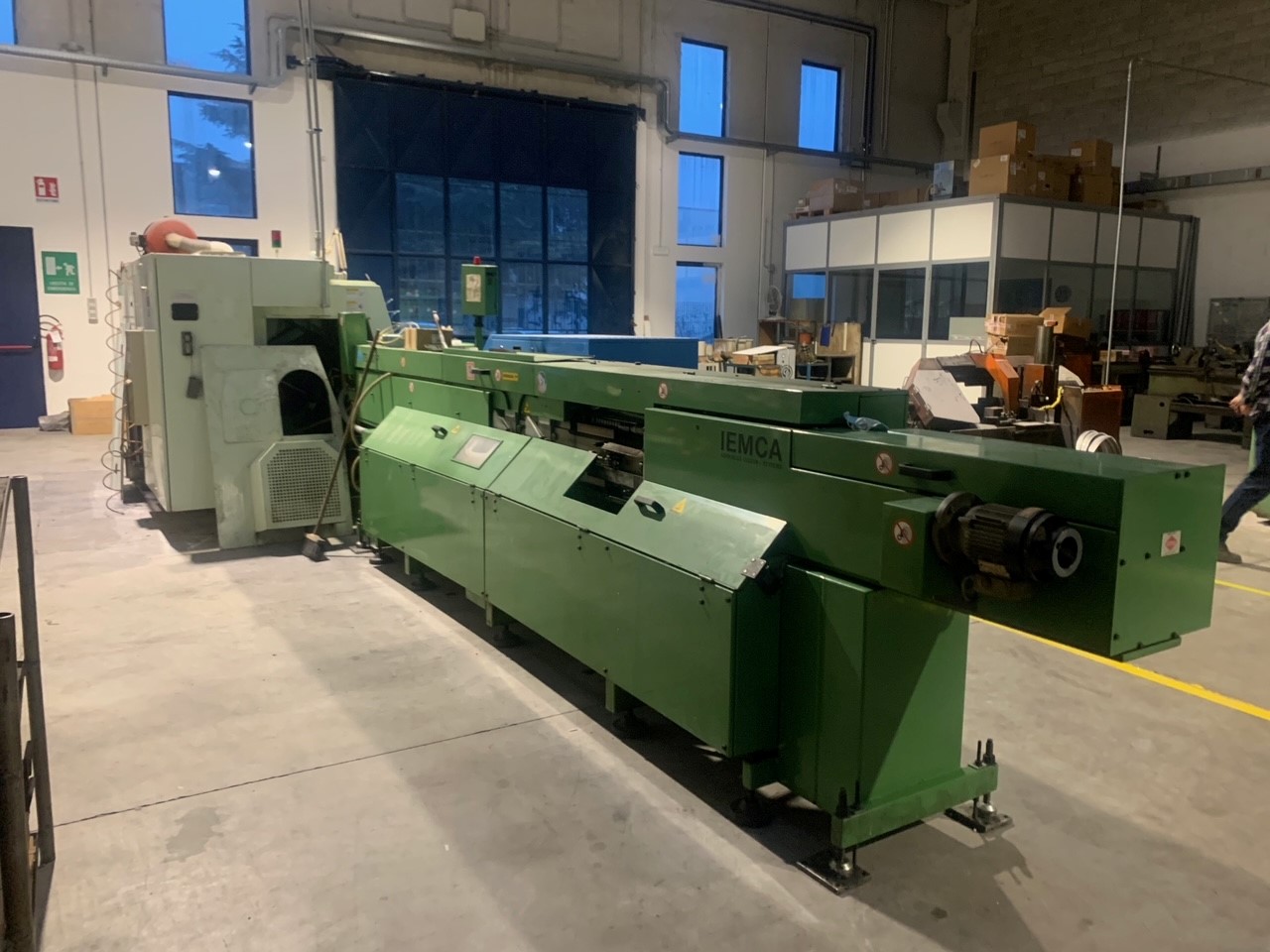

-Automatic bar loader IEMCA TS 560/33/P
-Chip conveyor
-Self-centering chuck PINTO
USED MACHINE
