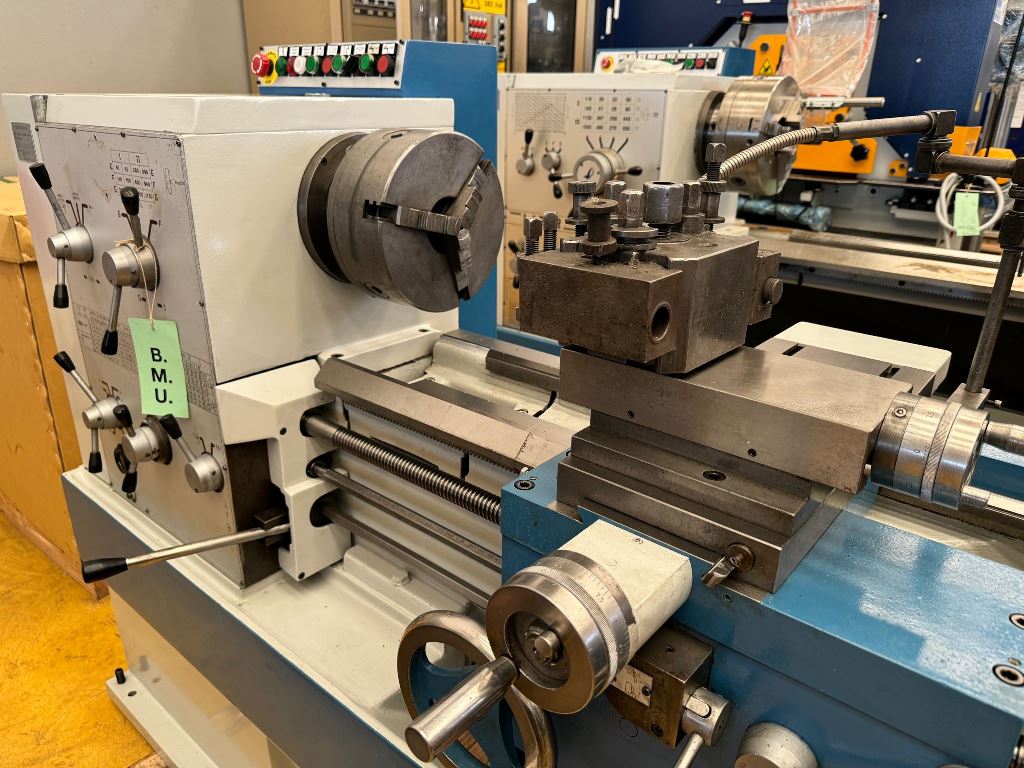

LATHE PADOVANI LABOR 200x1500
Diameter up to 600 mm
lathe conventional - Used Machines
PADOVANI
08827
08827
DIMENSIONS:
Height of centers mm 200
Distance between centers mm 1500
Bed width mm 290
Max turning diameter on the bed mm 400
Max turning diameter on the carriage mm 245
GAP:
Width mm 240
Max swing diameter mm 600
SPINDLE:
Front bearing diameter mm 75
Spindle bore mm 51
Spindle taper CAM-LOCK N.5''

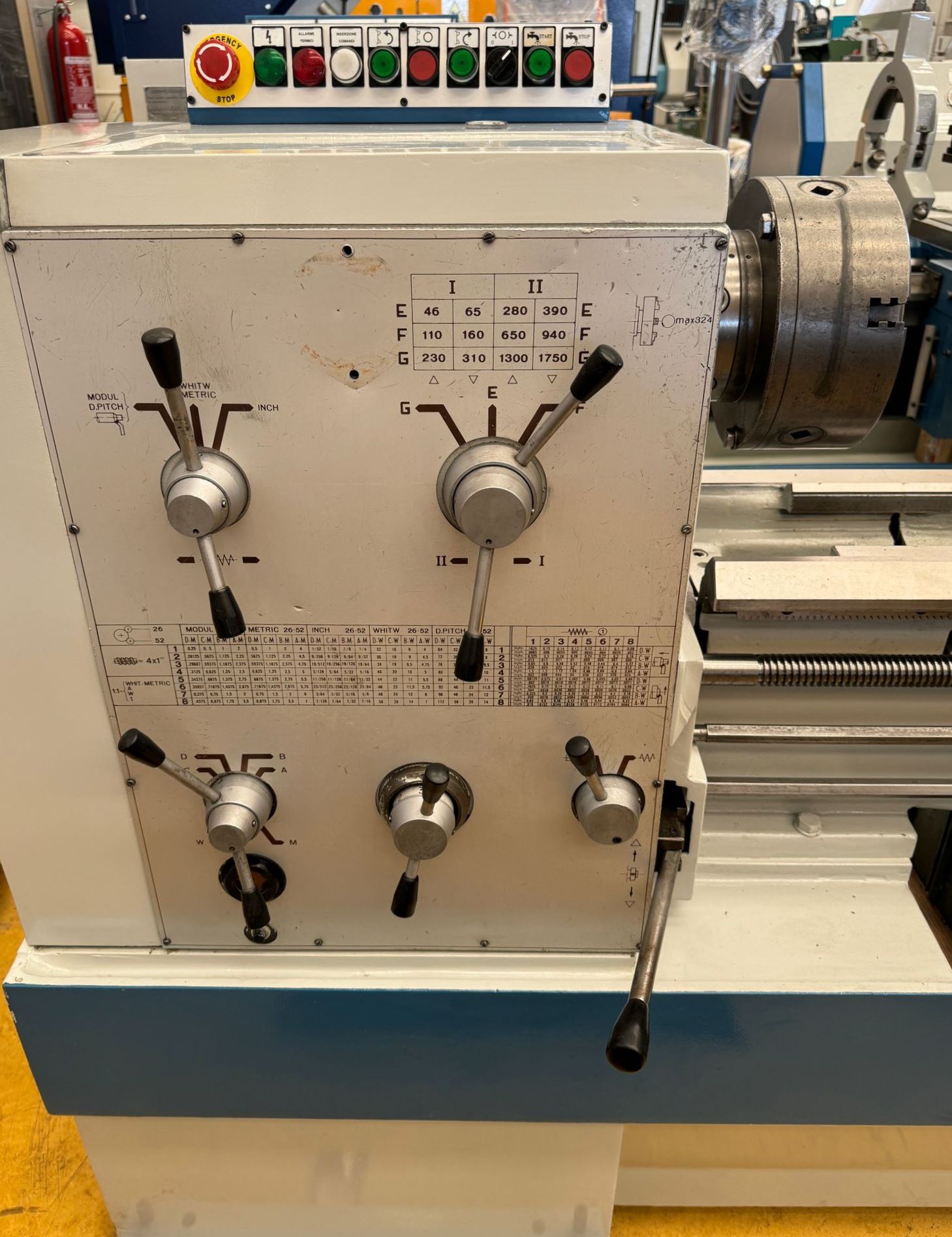

Speeds n.12 - rpm 46/1750
TAILSTOCK:
Quill diameter mm 52
Quill stroke mm 170
Quill cone Morse N.4
POWER:
Max absorbed power HP 5,5
EQUIPPED WITH:
-Self-centering chuck diam. mm 230 D.G. 3 + 3 + 3, hole 65 mm
-Plateau with 4 independent jaws diam. 300 mm
-Stellar stop
-Steady rest
-Follow rest
-Turret with 3 tool holders
USED MACHINE COMPLETELY RECONDITIONED
