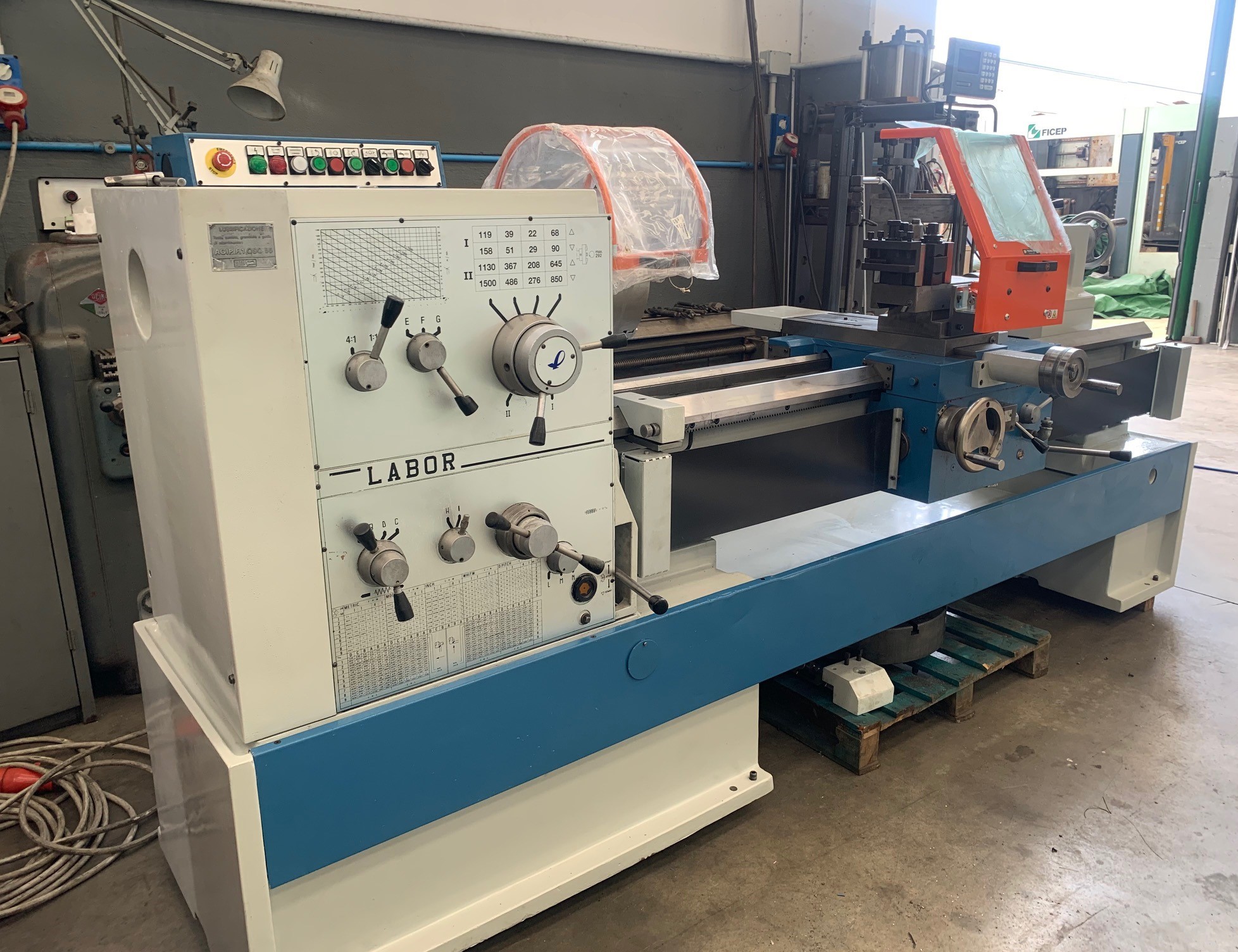

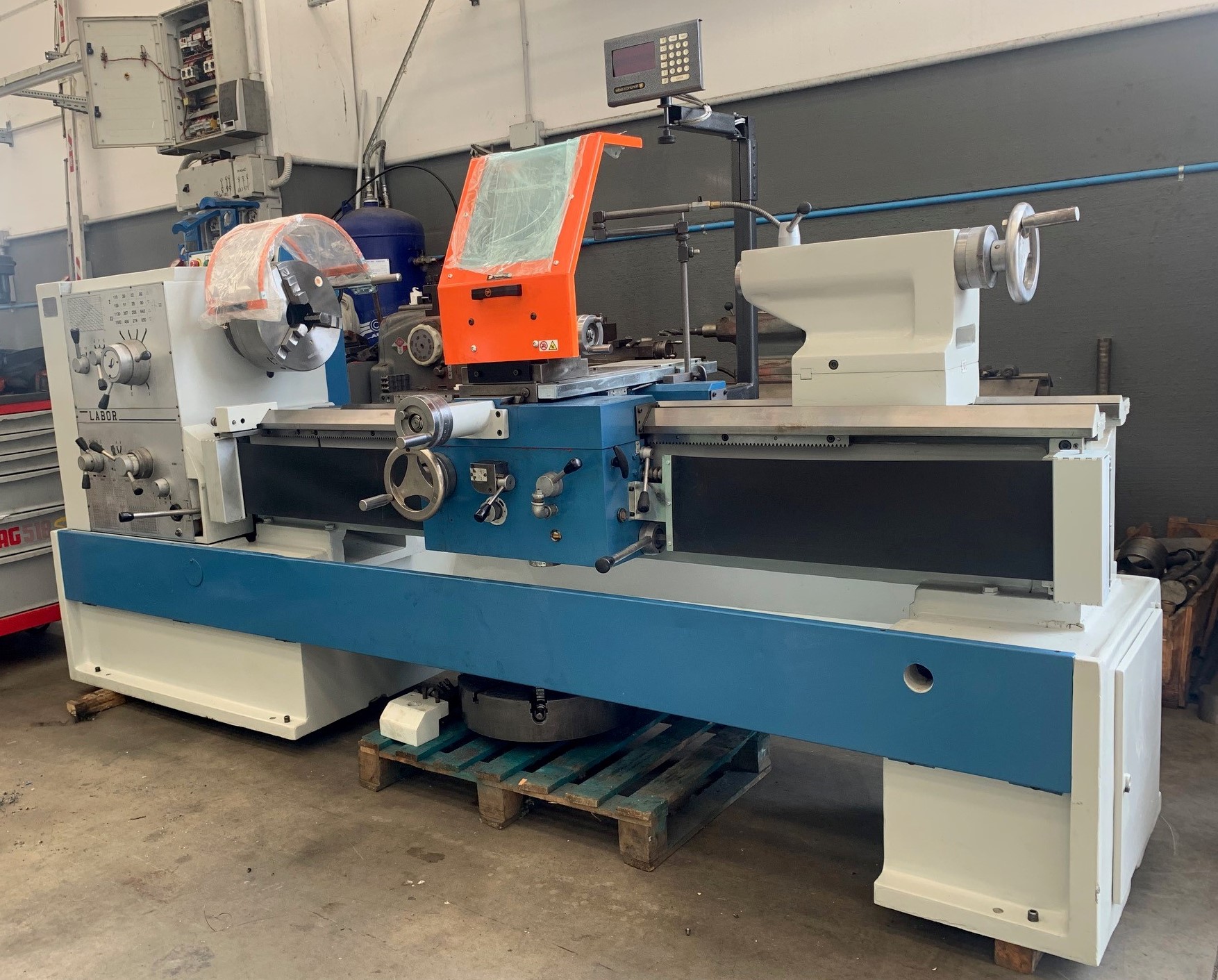

LATHE PADOVANI LABOR 275x1500
Diameter up to 600 mm
lathe conventional - Used Machines
PADOVANI
08828
08828
Height of centers mm 275
Distance between centers mm 1500
Turning diameter on the gap mm 740
Turning diameter on the cross slide mm 360
Gap lenght mm 300
Bed width mm 360
Spindle bore mm 77
Spindle taper CAM-LOCK D1-6''
Spindle speed 2 range, n.16 speeds, rpm 22-1500
Cone C.M.5
EQUIPPED WITH:
-3-jaw self-centering chuck diam. mm 260 3+3+3
-Turret with 5 tool holders
-Plateau diam. 450 mm
-Follow rest
USED MACHINE
IMAGES:
