CENTER ZPS MOD. MCFV 1680 STANDARD
Single pallet
08878

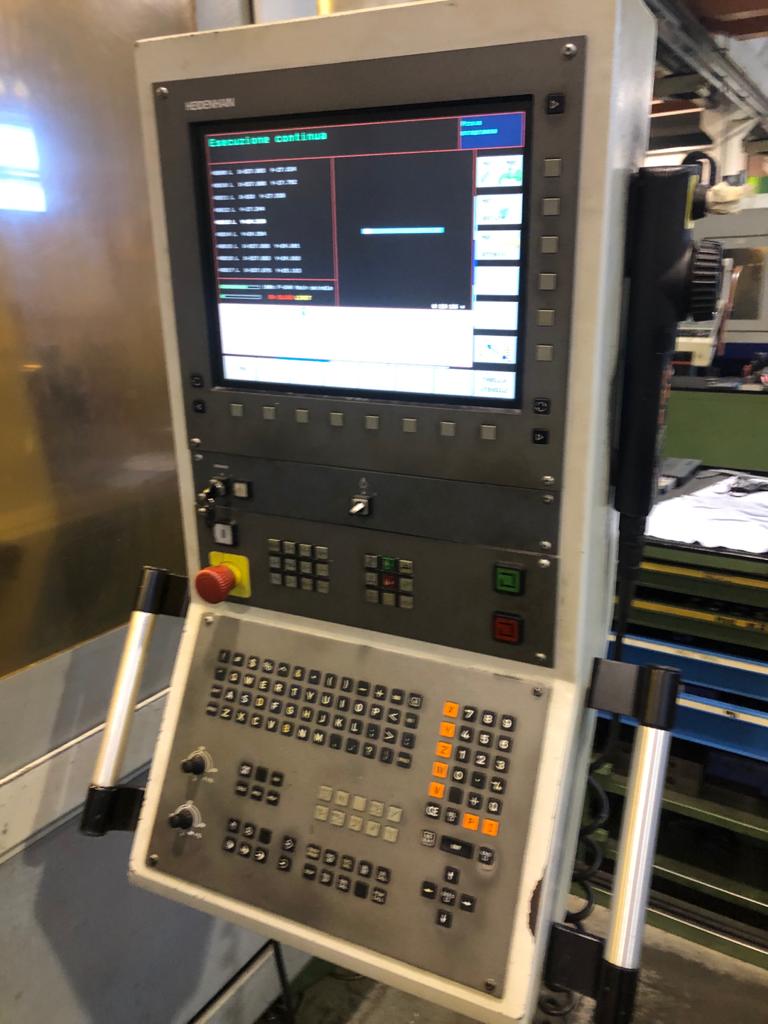

CNC HEIDENHAIN iTNC 530
TABLE:
Table dimensions mm 1800x780
T-slots number 5
T-slots distance mm 160
Max load Kg 2500
WORKING ARES:
Axis X stroke mm 1650
Axis Y stroke mm 810
Axis Z stroke mm 810
DISTANCE:
Spindle front to bed mm 110-920
Spindle axis to column mm 850
Spindle axis to tool front mm 990
Working bed to floor mm 1060
FEED:
Working feed axis X,Y,Z m/min 0-15
Rapid feed X,Y,Z, m/min 30
SPINDLE:
Spindle speed rpm 40-8000
Cone SK 50
Spinlde motor power (S1-S6 40%) kW 17-25
TOOL MAGAZINE:
Tool magazine 24 positions
Max tool diameter (con stazioni adiacenti piene/vuote) mm 110/180
Max tool lenght mm 300
Max tool weight Kg 15
MACHINE WEIGHT AND DIMENSIONS:
Machine weight (with tools magazines) Kg 13800
Machine overall dimensions mm 4120x2440
Max operating height of the machine mm 3470
Machina transport dimensions (with tool magazine disassembled) mm 4120x2440x2980
Max absorbed power kVA 35
EQUIPPED WITH:
-High pressure through the spindle
-Chip conveyor
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
