MILLING IM PARPAS ML90/6000
Floor type
08889
Numeric Control DELECTRON AZ102
Longitudinal travel mm 6000
Vertical travel mm 2000
Cross travel mm 1000
Spindle motor Brushless kW 22
Max torque Nm 525
Spindle taper ISO 50
Continuous rotary table mm 1800x1600, 15 ton.
Automatic head, axis A in continuous, axis B 2,5 degrees, ISO 50
Variable spindle speed motor Brush-Less type with kW 30 power and direct drive
Spindle speed rotation 3000 g/min
Automatic hydraulic clamping/unclamping of rotation in fron surface of slideway
Axis movement by ground ballscrews with double preloaded nut, driven by Brush-Less motor
Induction grounded guide and counterguide covered with special material anti-friction
Centralized and temporized automatic lubrication of guides
USED MACHINE

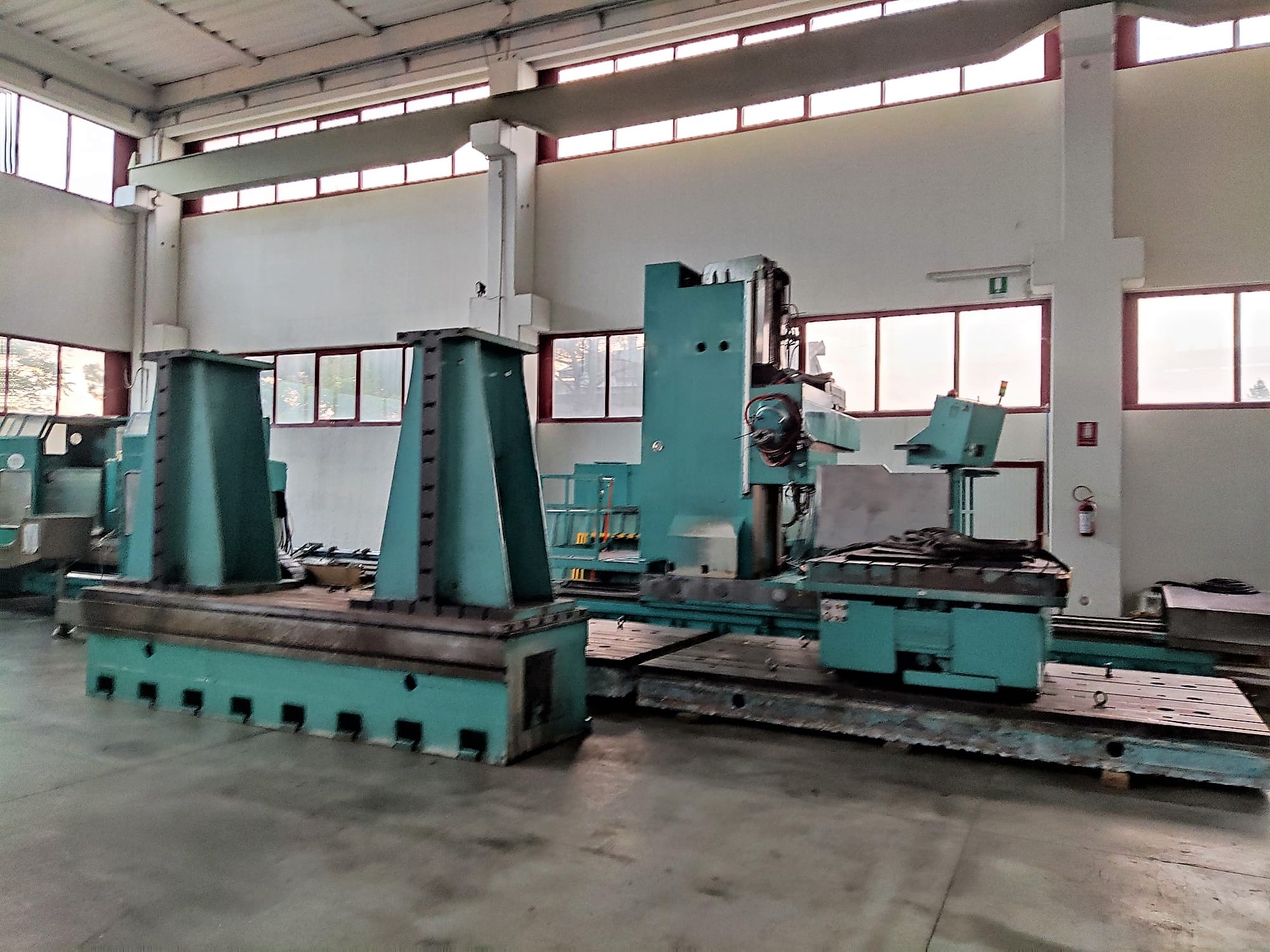

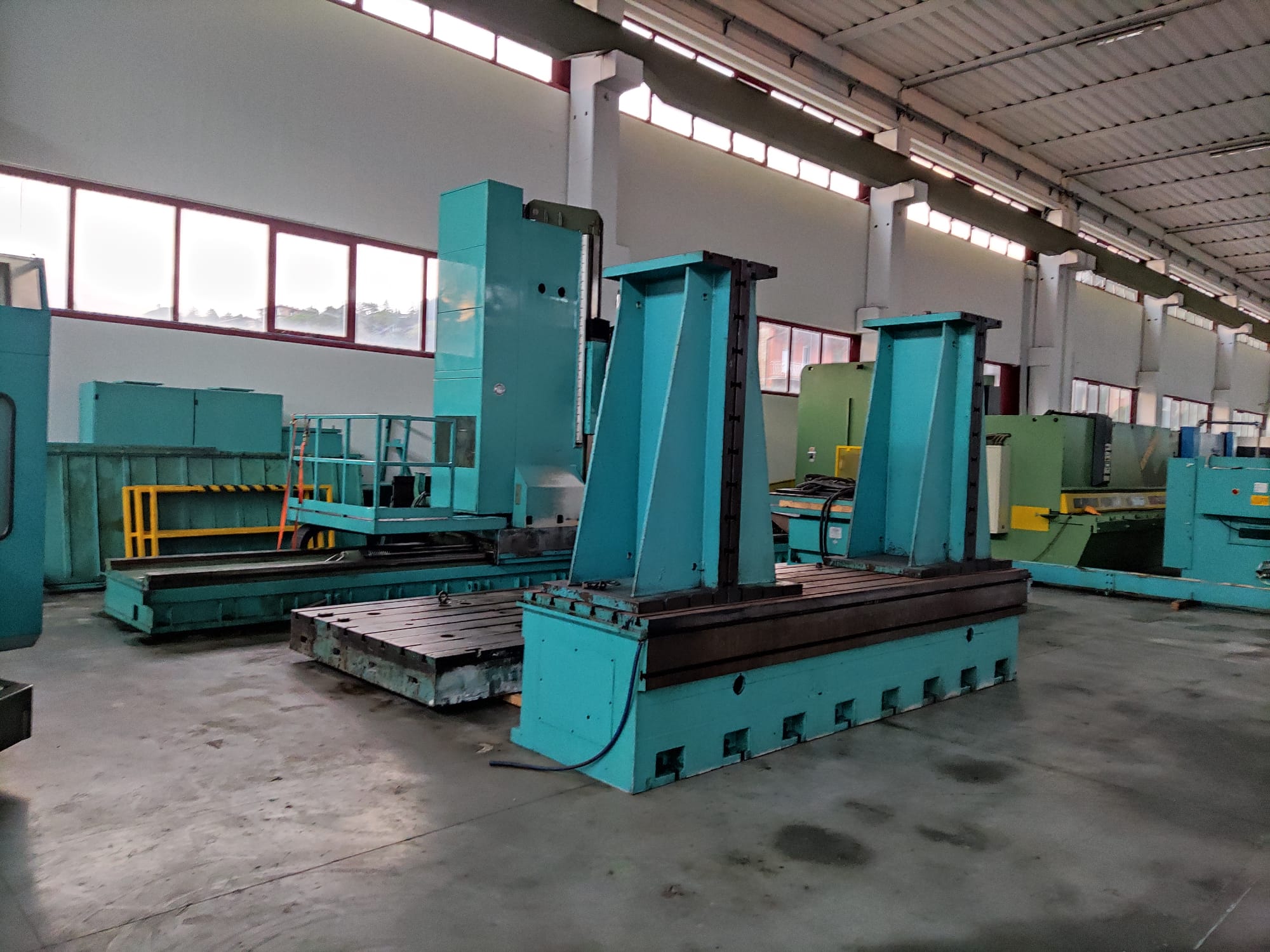

IMAGES:
