MILLING INDUMA MOD. 3U
Universal
milling - Used Machines
INDUMA
08893
08893
TABLE:
Table surface mm 1524x310
Number and dimensions T-slots 3x18
Distance between T-slots mm 60
Rotation in both directions 45 degrees
STROKES:
Longitudinal mm 1100
Cross mm 310
Vertical mm 470
Distance between spindle axis to table surface min/max mm 0/470
SPINDLE:
Cone n.50
Nose diameter mm 128.570
Speeds number 12 - rpm min/max 25/1500
Spindle motor (4 e 6 poli) 5,5 CV
WEIGHT AND DIMENSIONS:
Approx. net weight Kg 2800
Packaging size mt 2x2x1,8
EQUIPPED WITH:

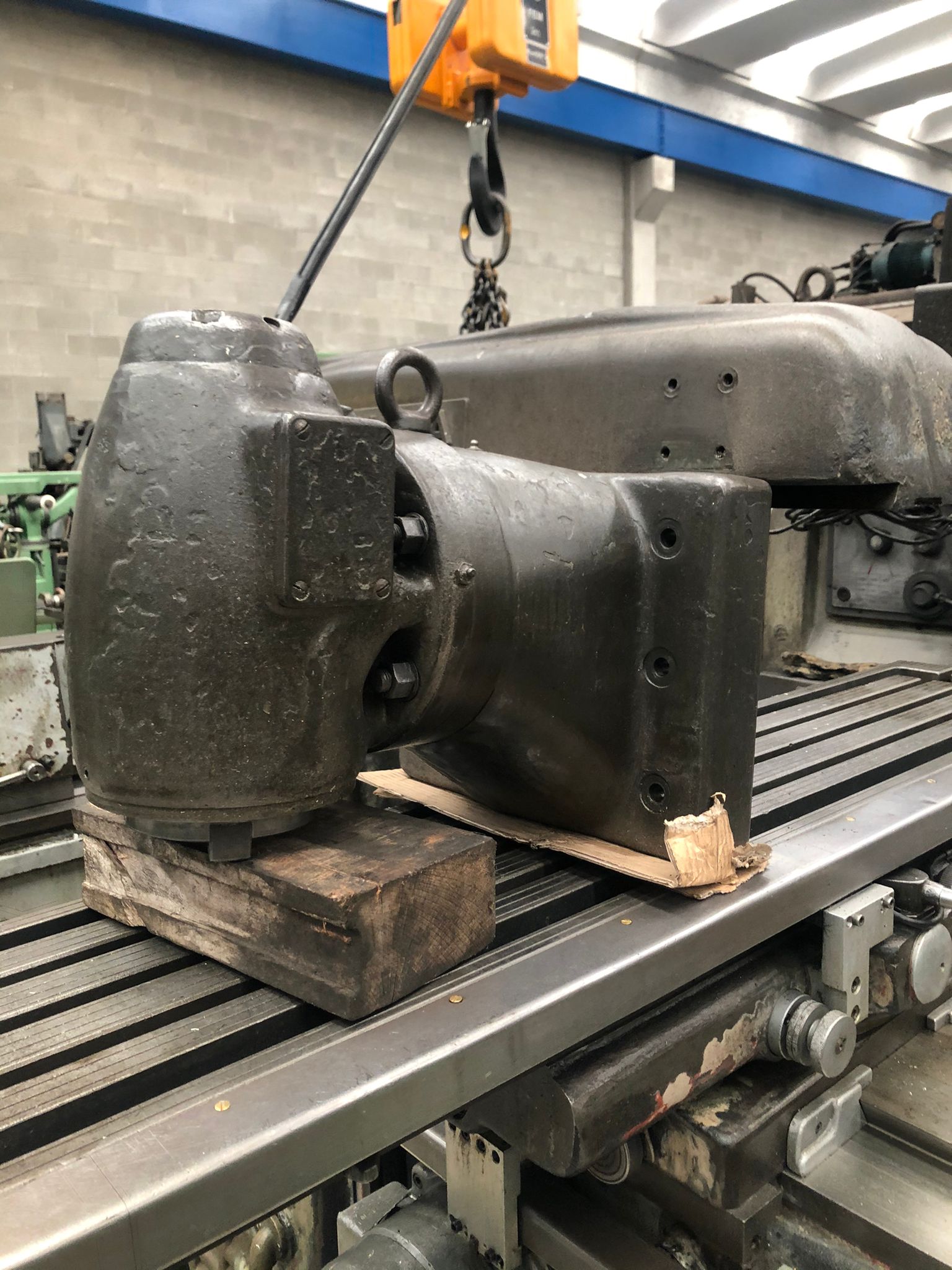

-Universal head ISO 50
USED MACHINE
