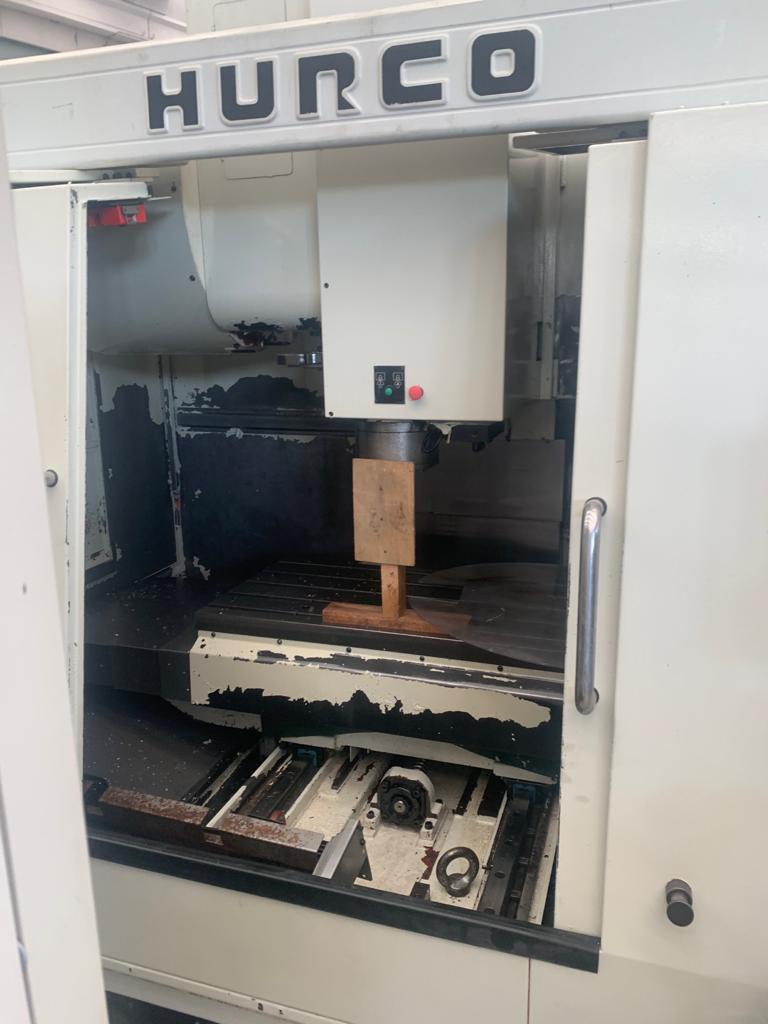

CENTER HURCO VMX 30
Single pallet
machine center - vertical - Used Machines
HURCO
08921
08921

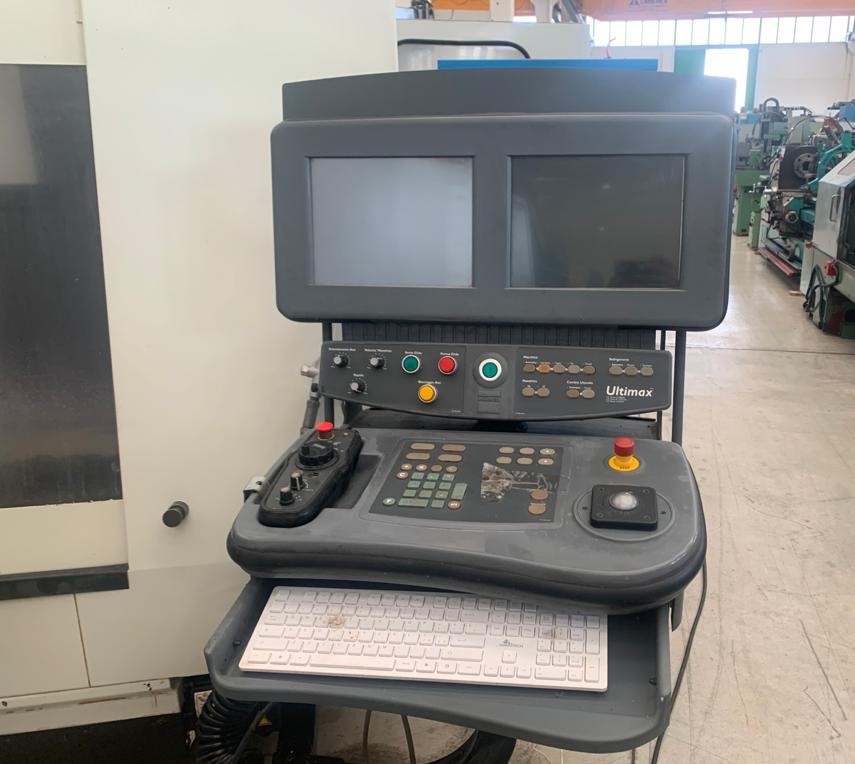

CNC ULTIMAX
TABLE:
Table surface mm 1020x510
T-slots number 5
Widht/Distance T-slots mm 18/100
Load capacity Kg 1360
STROKES:
Axis X mm 760
Axis Y mm 510
Axis Z mm 610
SPINDLE:
Spindle speed rpm 0-10.000
Spindle motor power continuous kW/HP 11/15 (1 min. rating kW/HP 14/18.75)
TOOL MAGAZINE:
Cone 40
Tool magazine 24 poitions
Max tool diameter mm 80 (with free adjacent pocket) mm 120
Max tool lenght mm 300
Max tool weight Kg 7
EQUIPPED WITH:
-Chip conveyor
USED MACHINE
IMAGES:
