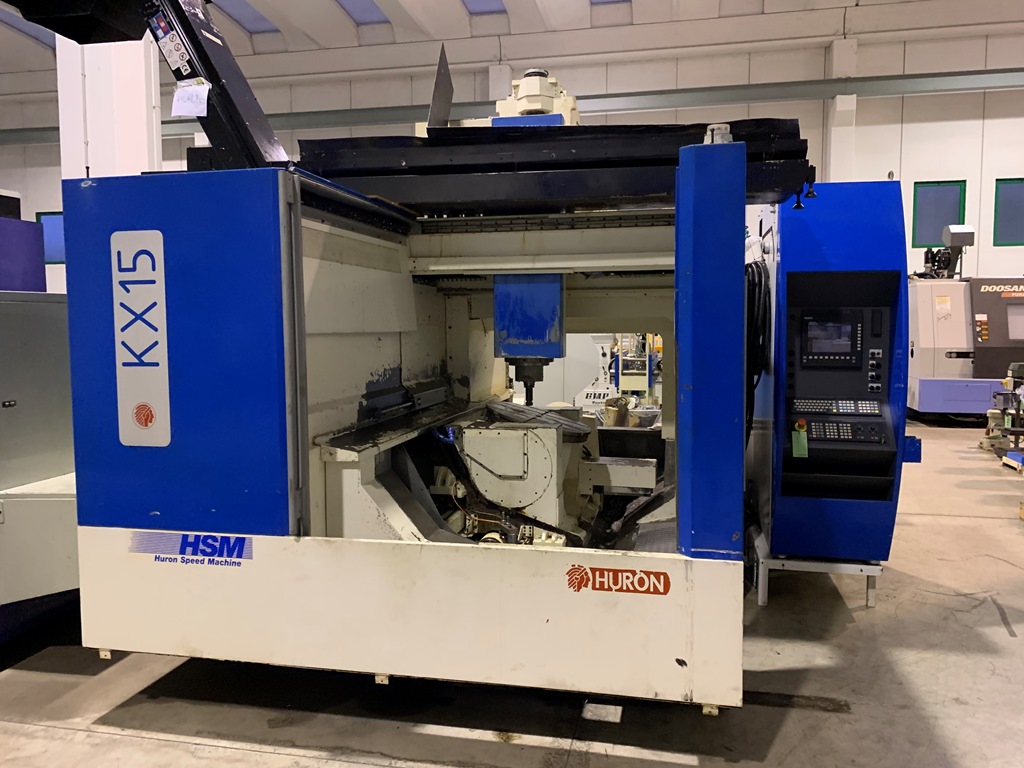

CENTER HURON KX 15
5 axis machine center - Used Machines
HURON
08960
08960
5-AXIS PORTAL
CNC SIEMENES 840D
STROKES:
X axis stroke table 800 mm
Y axis stroke carriage mm 1000
Z axis stroke ram 550 mm
B axis travel (tilting) + 20°/-100°
C axis travel (rotation) 360°

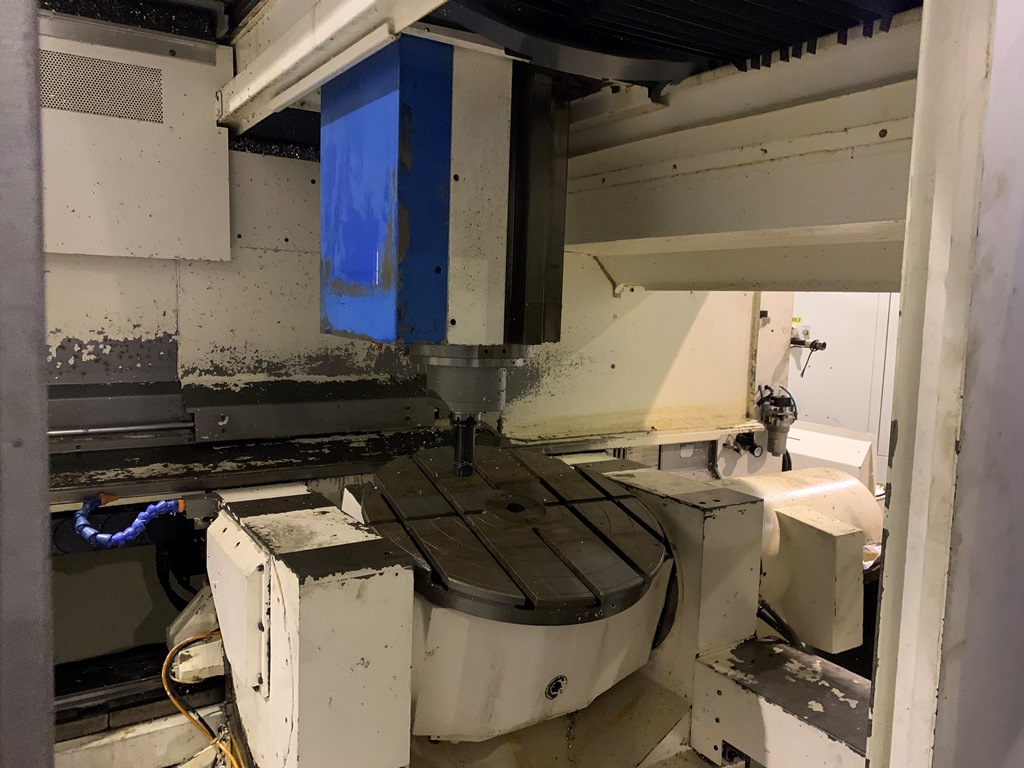

TABLE:
Useful surface roto-tilting table diam. 630 mm
Admissible load Kg 500
Height between table top and floor 1050 mm
ELECTRIC SPINDLE:
Tool cone DIN 69893: HSK 63-A
Spindle speed rpm 24.000
Spindle motor power (S1-100% / S6-80%) kW 18/20
Air/Oil Lubrication
AUTOMATIC TOOL CHANGE:
Tool magazine 32 positions
VARIOUS:
Total installed power kW 46
Weight approx. machine Kg 14.000
EQUIPPED WITH:
-Chip evacuator
-High pressure
-Optical lines on all axes
USED MACHINE
