CHAMFERING MACHINE SERTOM MOD. C25
Chamfering machines
sheet metal working - Used Machines
SERTOM
08896
08896
Max sheet metal resistance Kg/mm2 40/60
Max chamfer length 25 mm
Max sheet metal thickness mm 65
Min. width piece mm 60
Min. length piece mm 300
Cutting speed and feed m/min. 2/4/6
Chamfer angle variations 20/55 degrees
Workable diameter of round pieces mm 600
Control unit motor for blade rotation kW 5
Chamfering angle adjustment motor kW 0.37
Manual blank holder adjustment
Manual carriage adjustment
Nominal electric power kW 5,5
Supply voltage Volt 380
Power frequency Hz 50-60
Worktop height (adjustable top) 950 mm
USED MACHINE

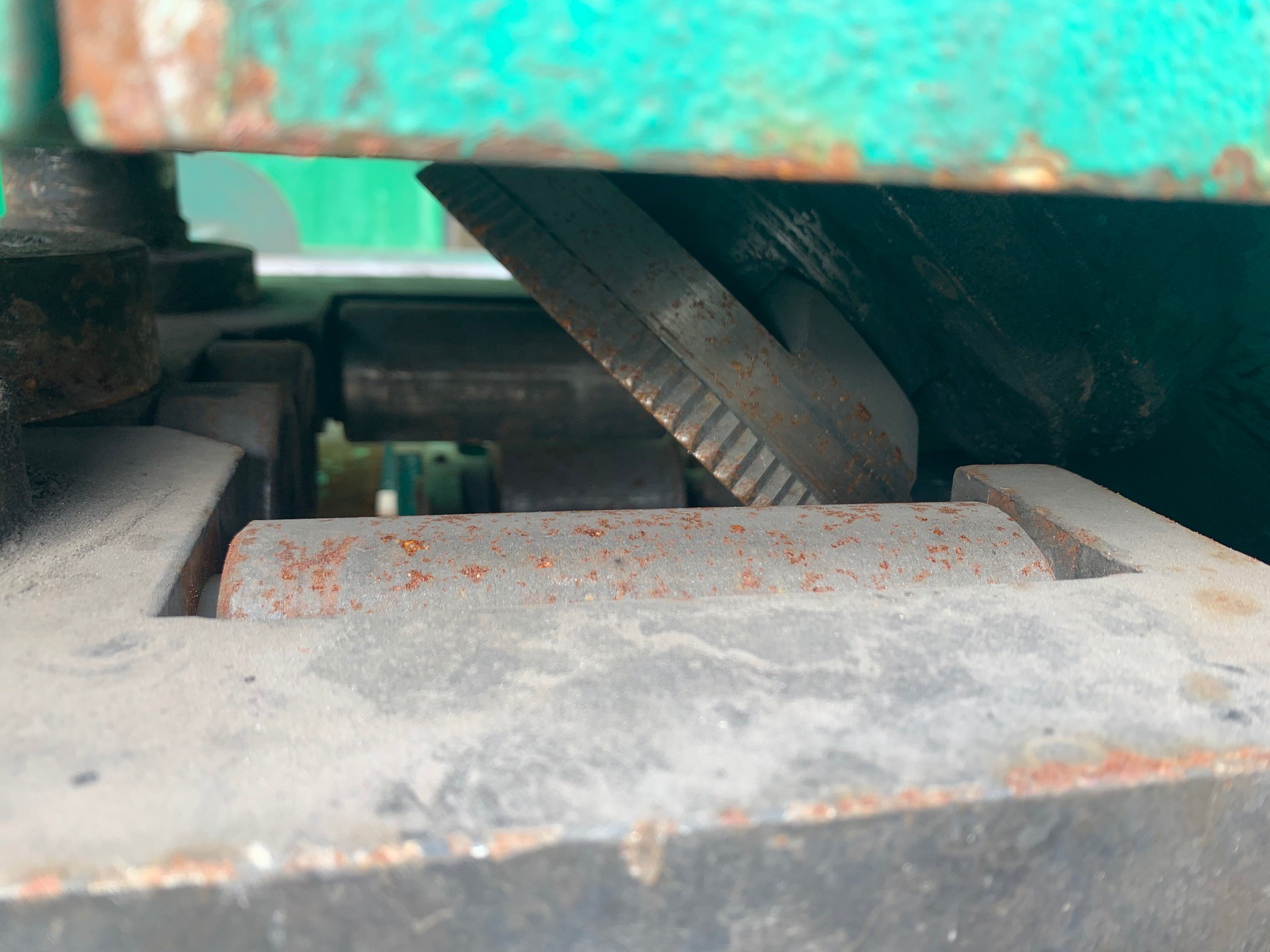

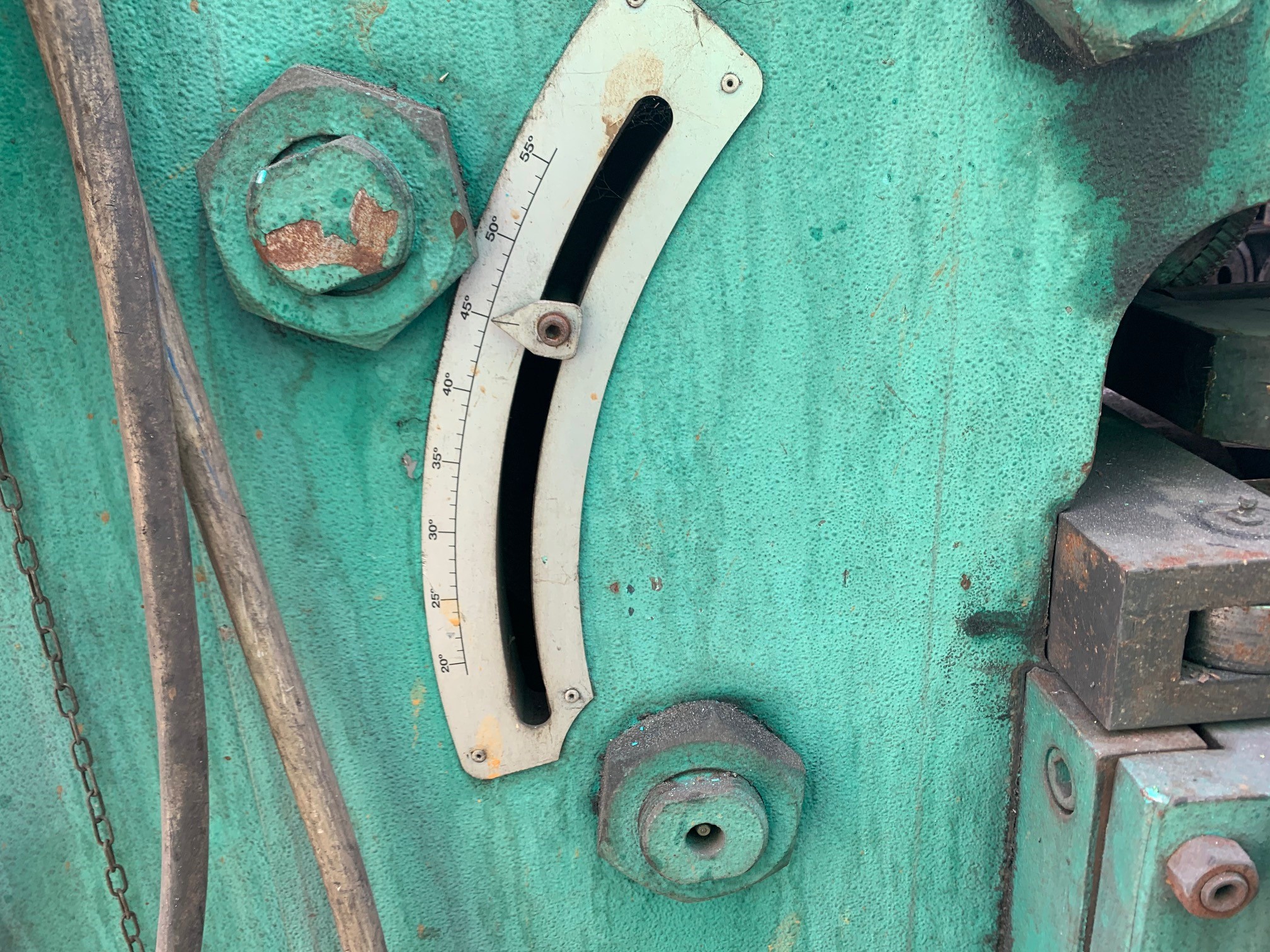

IMAGES:
