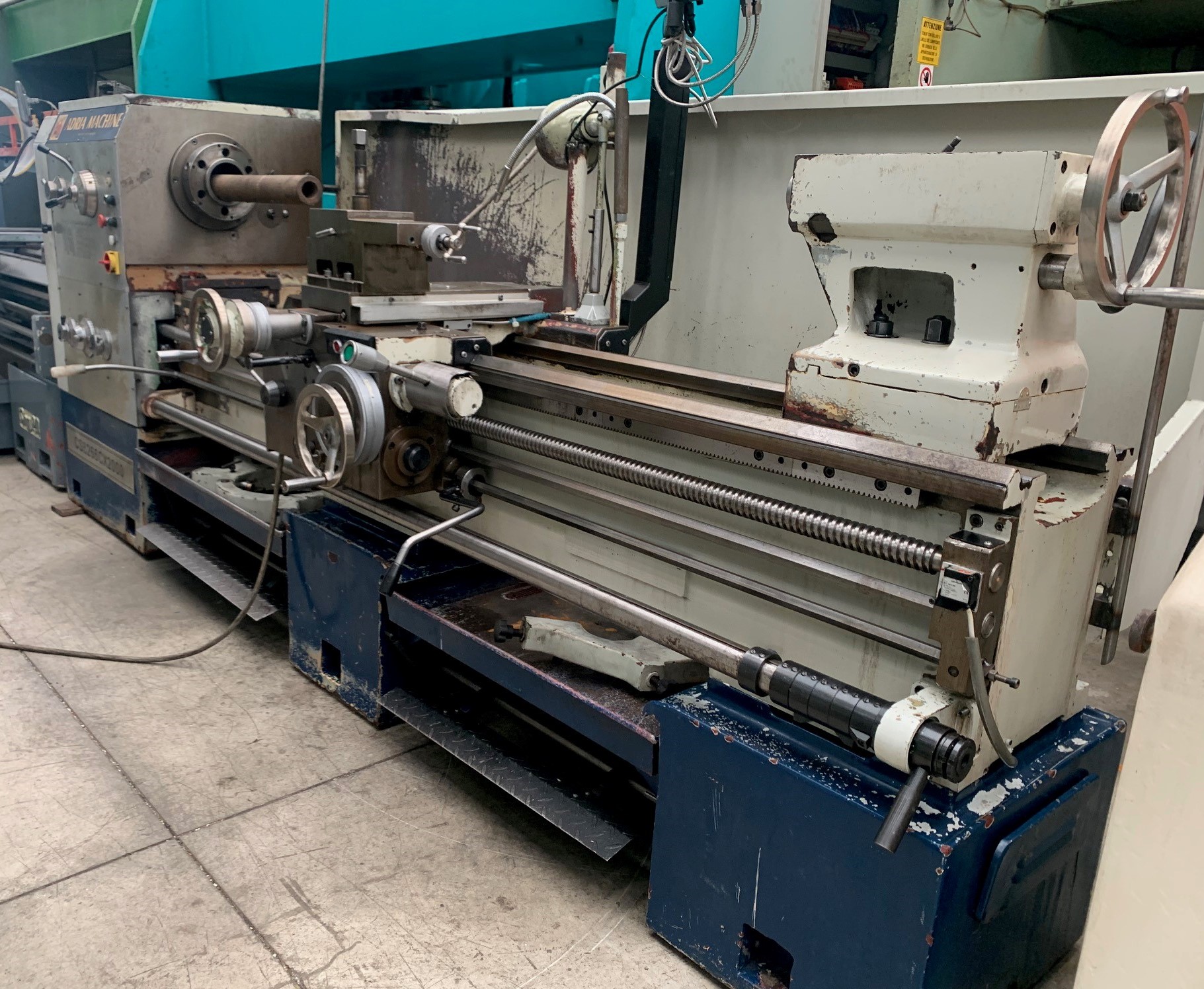

MOD. CS 6266Cx2000
CAPACITY':
Turning diameter over bed mm 660
Turning diameter on the carriage mm 420
Max turning diameter in the gap 870 mm
Bench width 390 mm
Distance between centers 2000 mm
SPINDLE:
Spindle taper ISO702 / II NO.8 CAMLOCK
Spindle bore 105 mm
Bar passaging 113 mm
Spindle speed n.12, rpm 30-1600
Main motor power Kw 7,5 (HP 10)
FEEDRATE AND THREADS:
Max tool slide stroke 145 mm
Max carriage stroke 310 mm
Max tool section 25x25 mm
X axis feeds mm/revs 0.027-1.07
Z axis feeds mm/revs 0.063-2.52
Metric thread range mm 1-14
TPI 20-2 inch thread range
Modular thread range MMe 0.5-7
DP 56-4 diametral pitch thread range
TAILSTOCK:
Quill diameter mm 75
Quill cone MT No. 5
Quill stroke 150 mm
DIMENSIONS AND WEIGHTS:
Overall dimensions approx. (length x width x height) cm 363x100x135
Net weight approx. Kg 2700
EQUIPPED WITH:
-Steady rest
-Follow rest

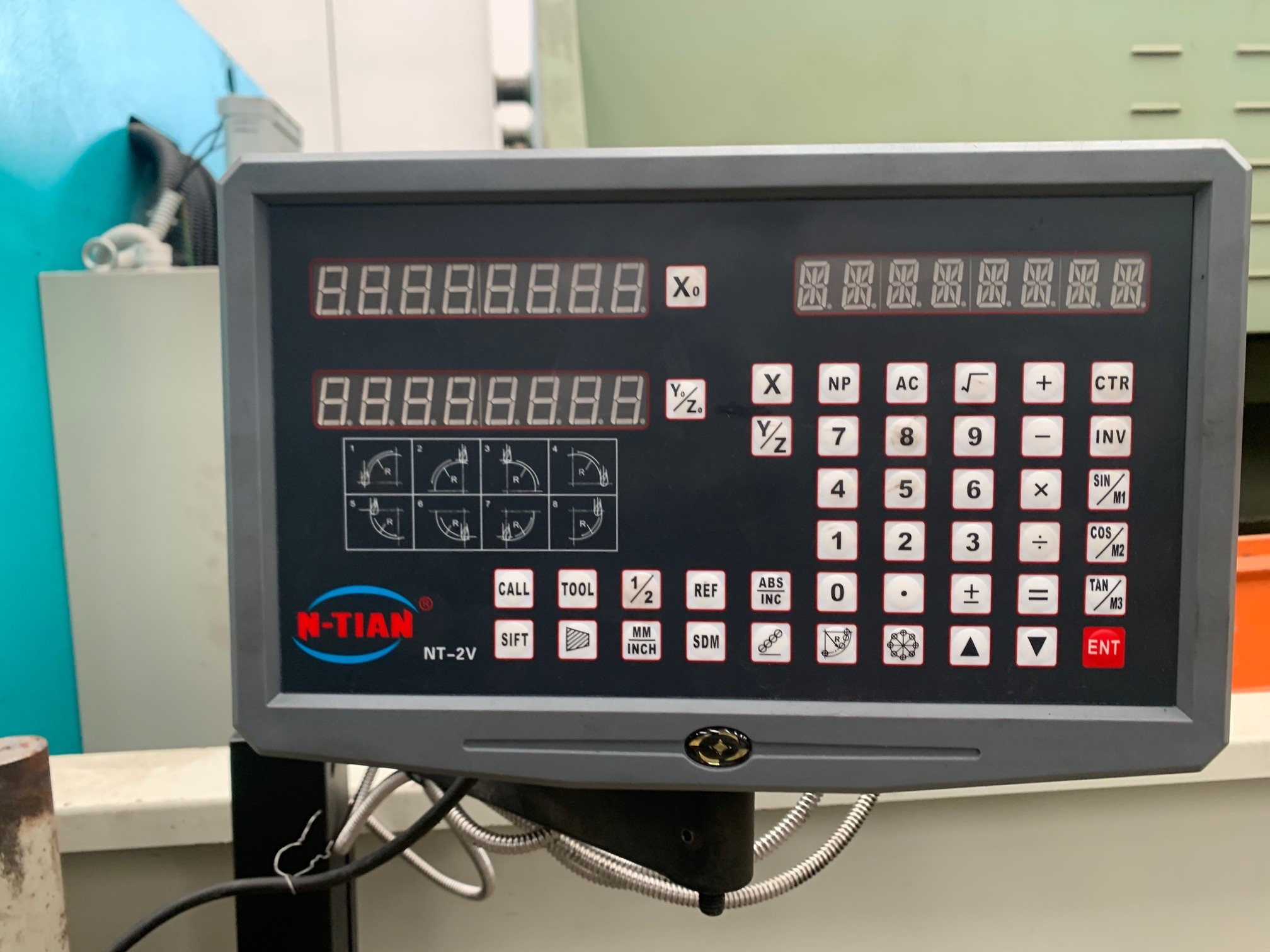

-DRO

USED MACHINE
