MILLING MACHINE TIGER THS59 EVO
Bed type
milling cnc - Used Machines
VIDEOS:
TIGER
08988
08988

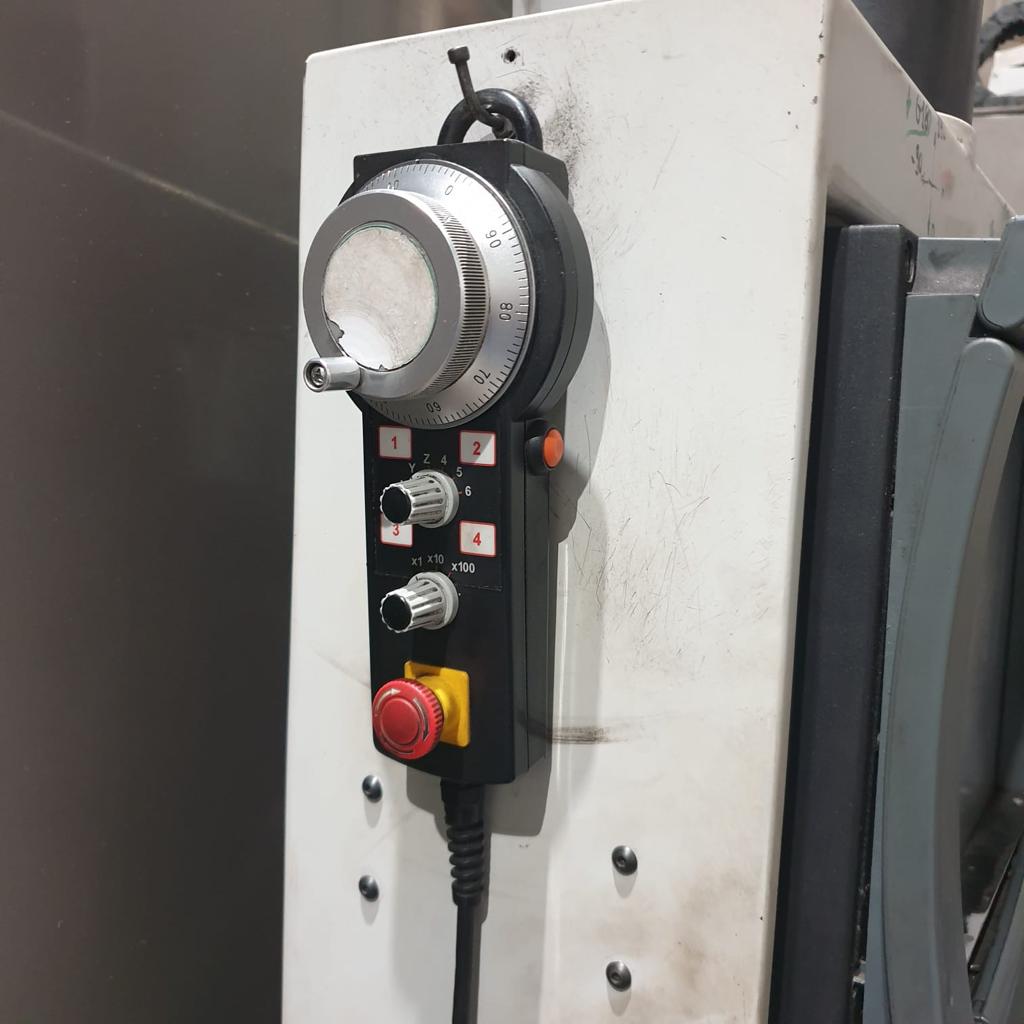

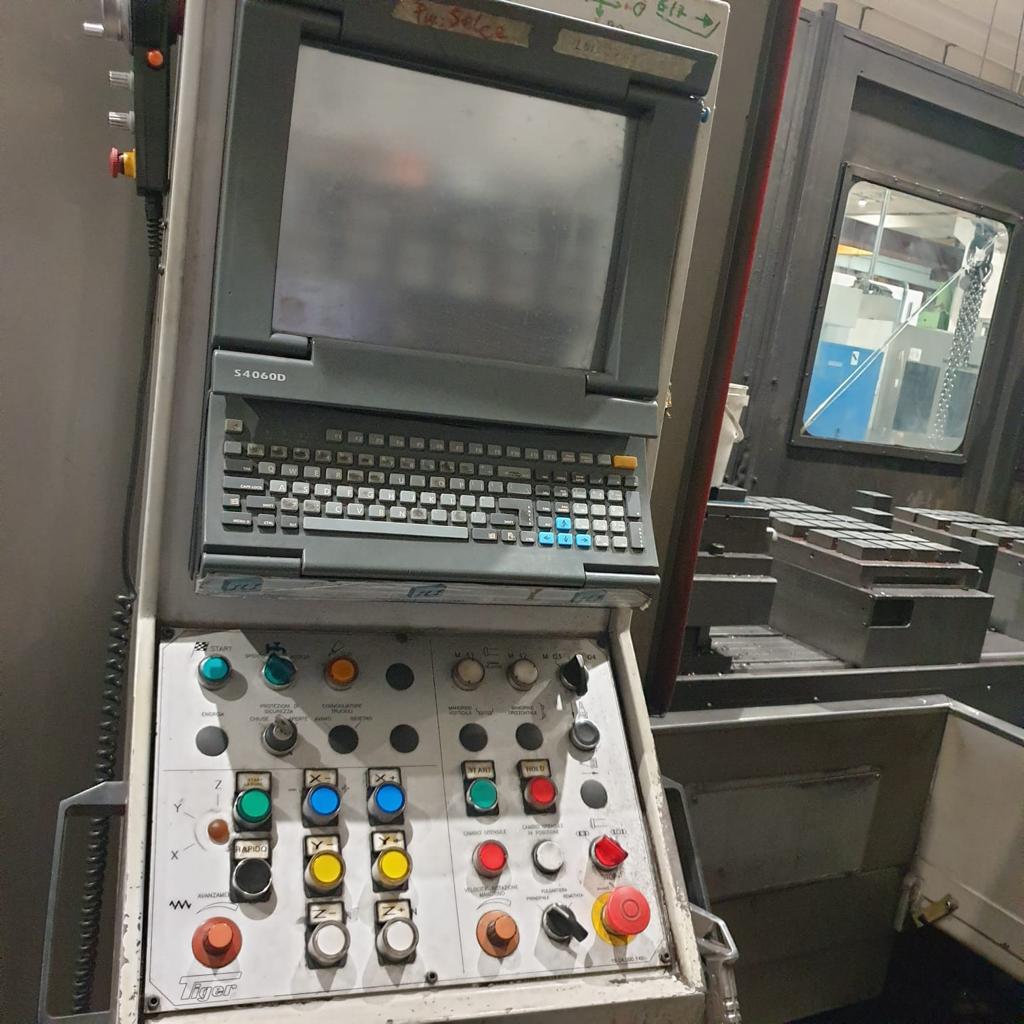

CNC SELCA S4060-D + Selbox S2 remote handwheel

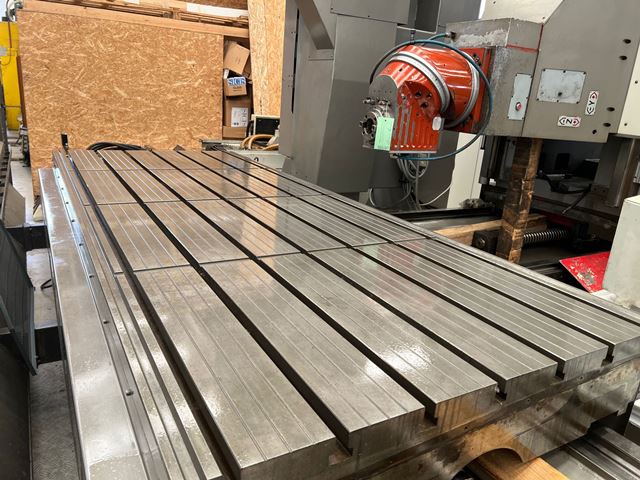

TRANSLATING TABLE:
Table length mm 2800
Table width mm 1100
Table height 210 mm
Central T-slot dimensions 22 H7 - other 22 H8
Number of T-slots n. 7
T-slot center distance 160 mm
Max weight allowed 10.000 Kg
WORKING CAPACITY:
Longitudinal stroke 2500 mm
Cross travel 1675 mm
Vertical stroke mm 1250
FEED:
Rapid mm / min 30,000
SPINDLE:
Spindle taper ISO 50 DIN 69871
Rotation speed rpm 5000
Speed ranges n.2:
-I range 250-1250 rpm
-II range 1000-5000 rpm
Spindle motor power 17 Kw

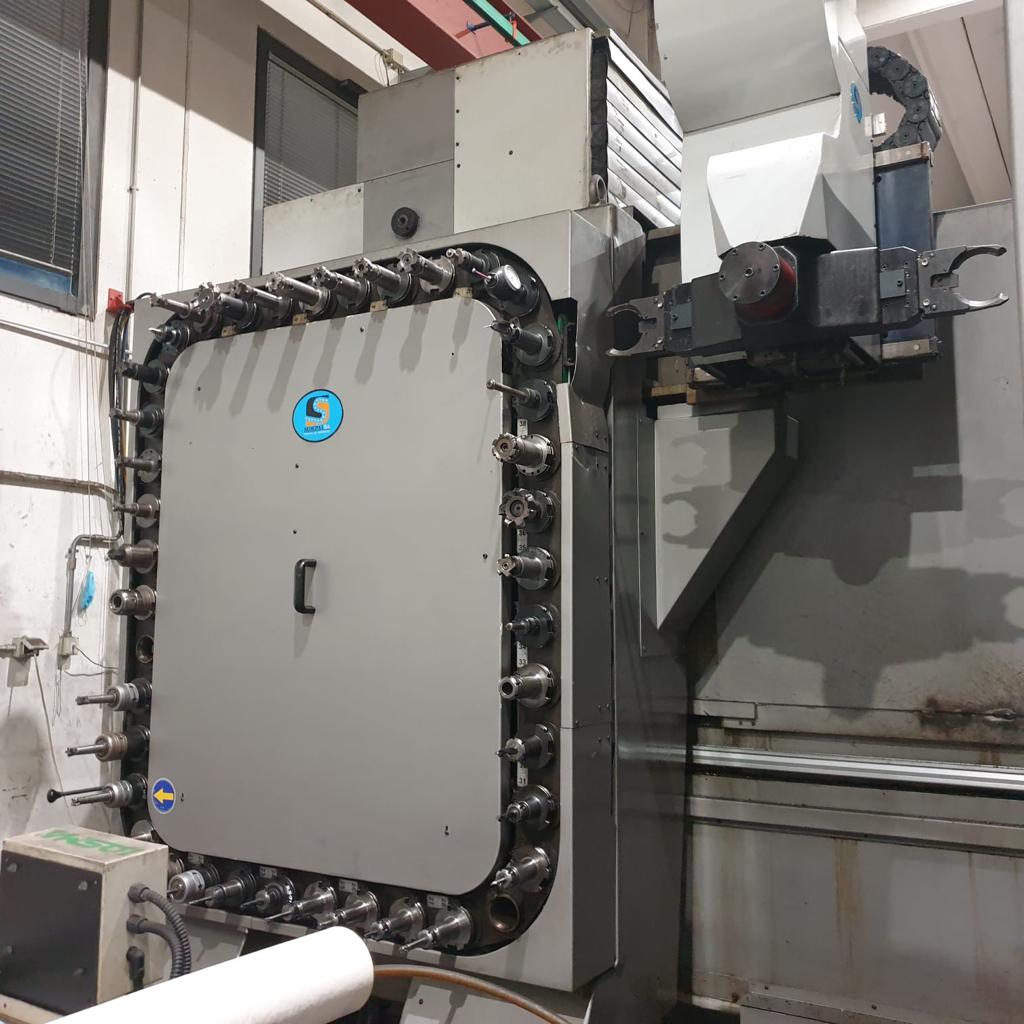

TOOL CHANGE:
-Tool change 40 positions
EQUIPPED WITH:
-Automatic head
AXIS A 1 degrees
AXIS B 1 degree
-coolant trugth spindle inside/outside
USED MACHINE
VIDEOS:
FILL OUT OUR FORM FOR MORE INFORMATION
