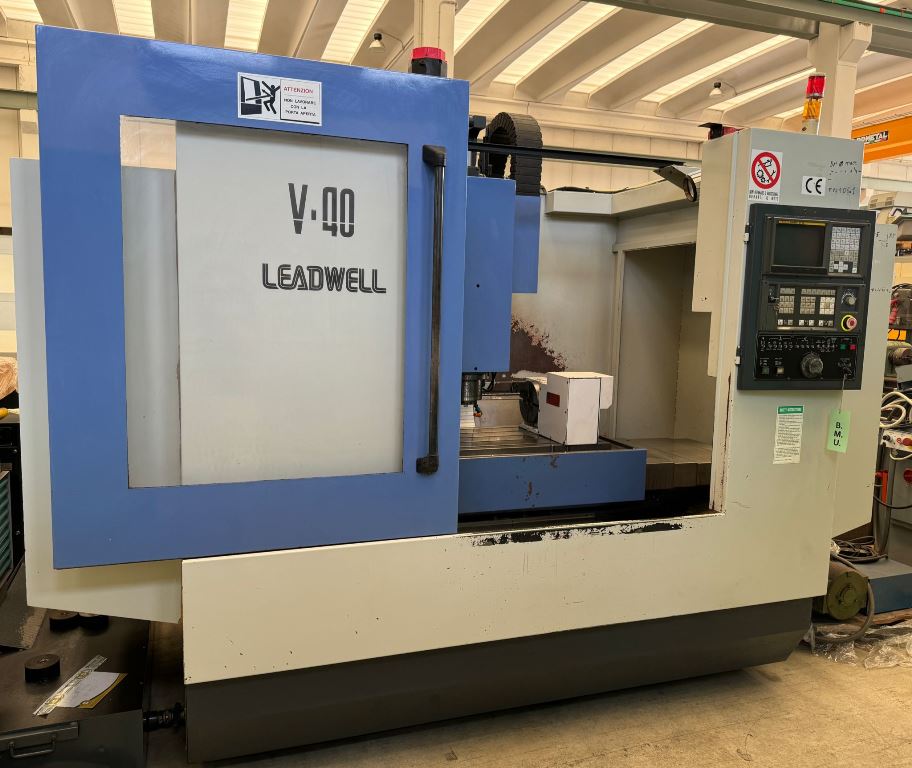

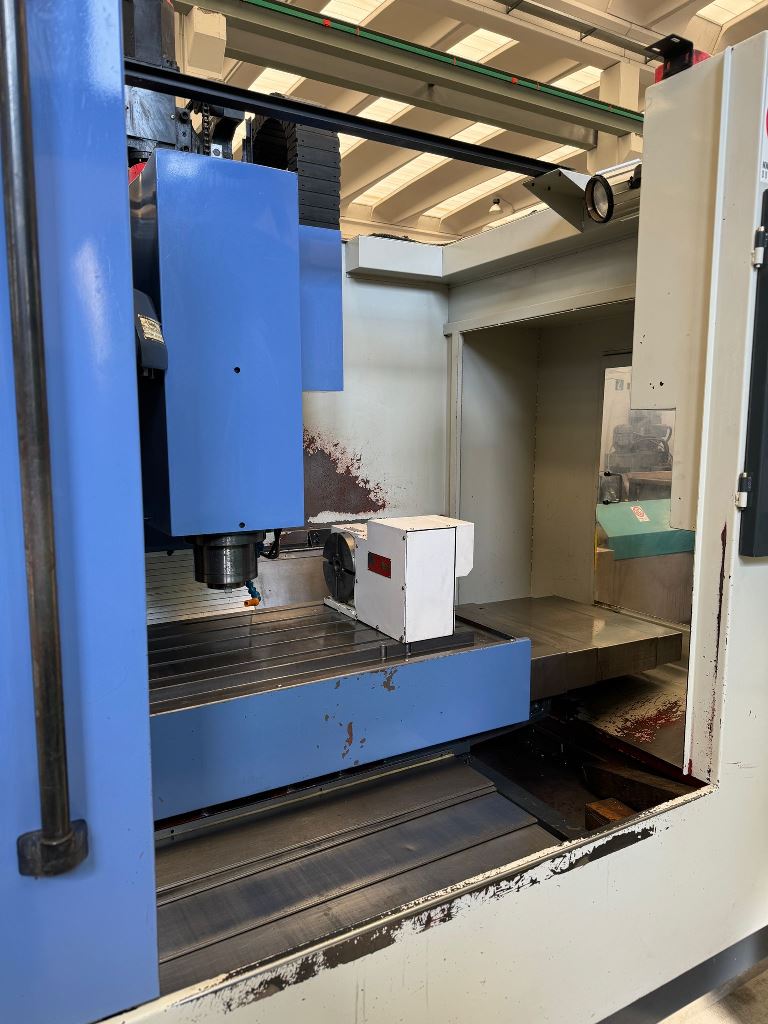

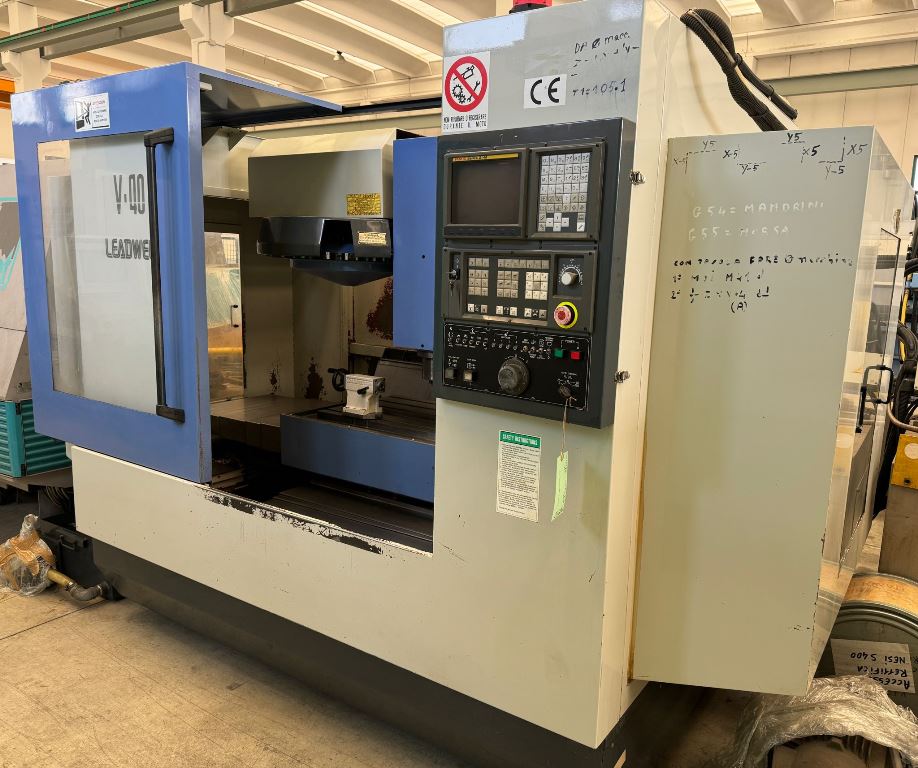

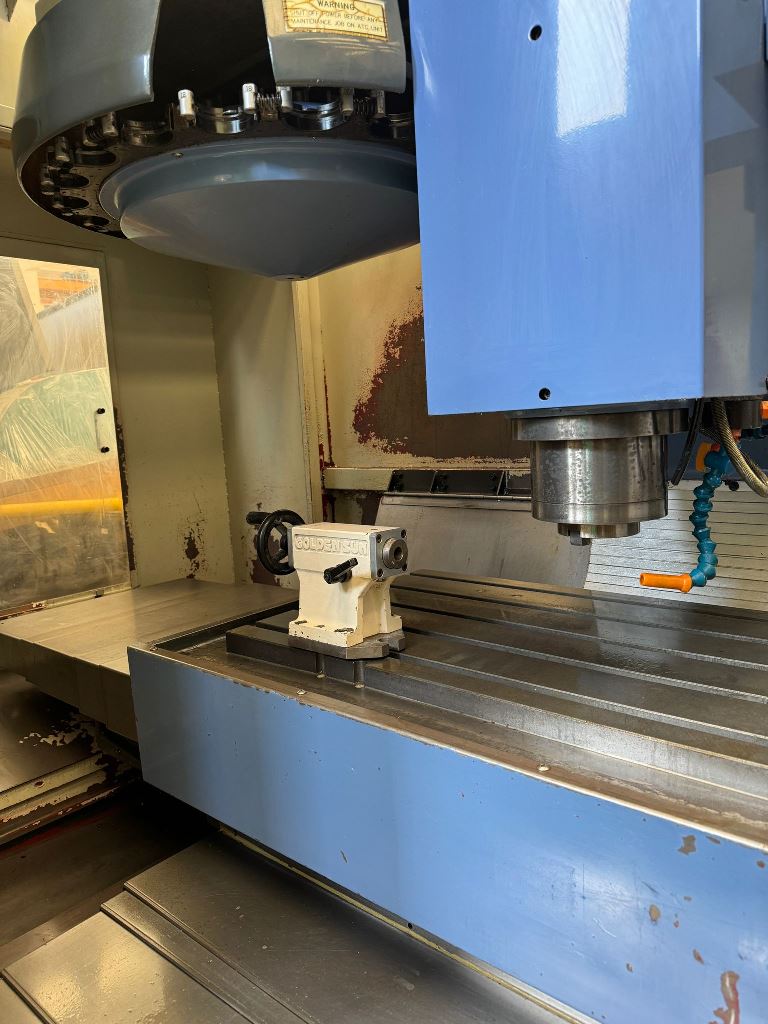

CENTER LEADWELL V40
Single pallet
machine center - vertical - Used Machines
LEADWELL
08952
08952
TAVOLA:
Table dimensions mm 1200x500
Max load Kg 500
STROKES:
Axis X mm 1020
Axis Y mm 510
Axis Z mm 510
Distance between spindle nose to table surface mm 160-670

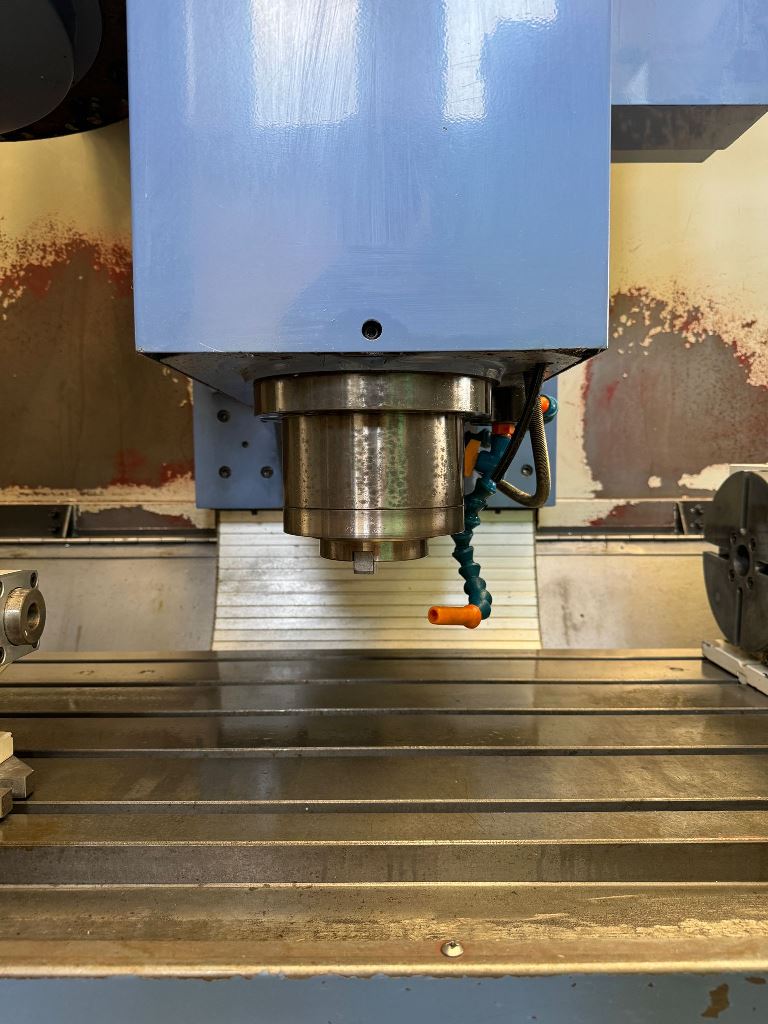

SPINDLE:
Spindle motor kW 7.5/9
Spindle speed rpm 80-8000
Spindle nose MAS-BT40

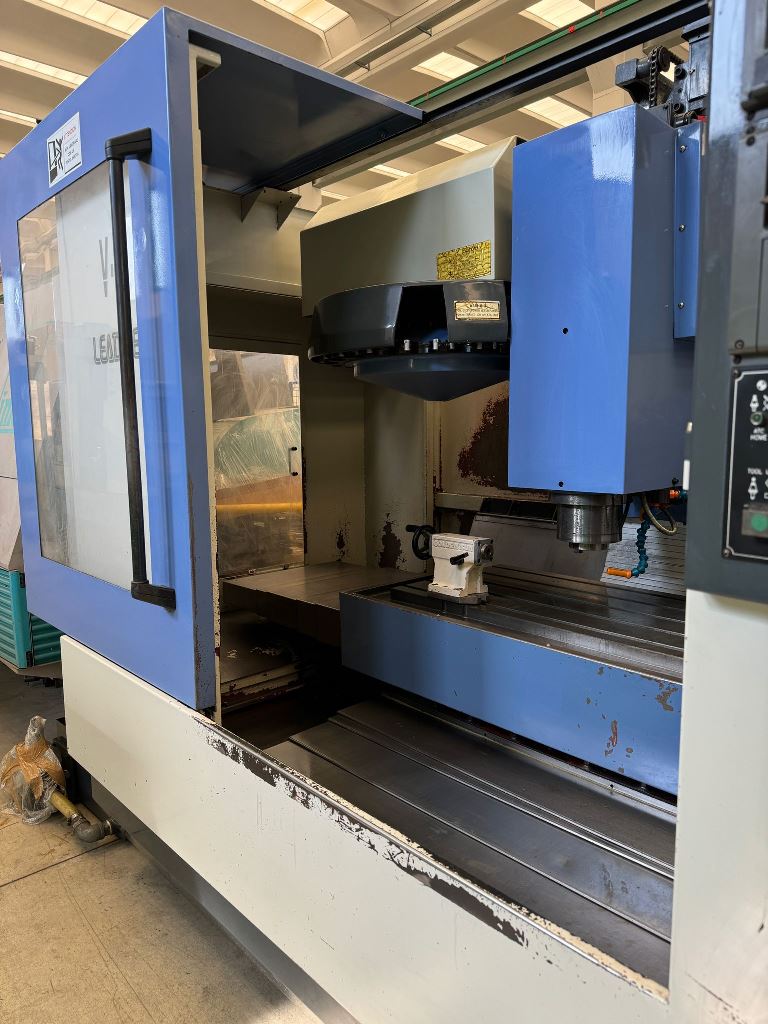

AUTOMATIC TOOL CHANGE:
Tool cone BT 40
Tool magazine capacity 20
Max tool diameter mm 115
Max tool lenght mm 250
Max tool weight Kg 7
OVERALL DIMENSION AND WEIGHT:
Lenght mm 2250
Width mm 2990
Height mm 2600
Weight Kg 5000
EQUIPPED WITH:

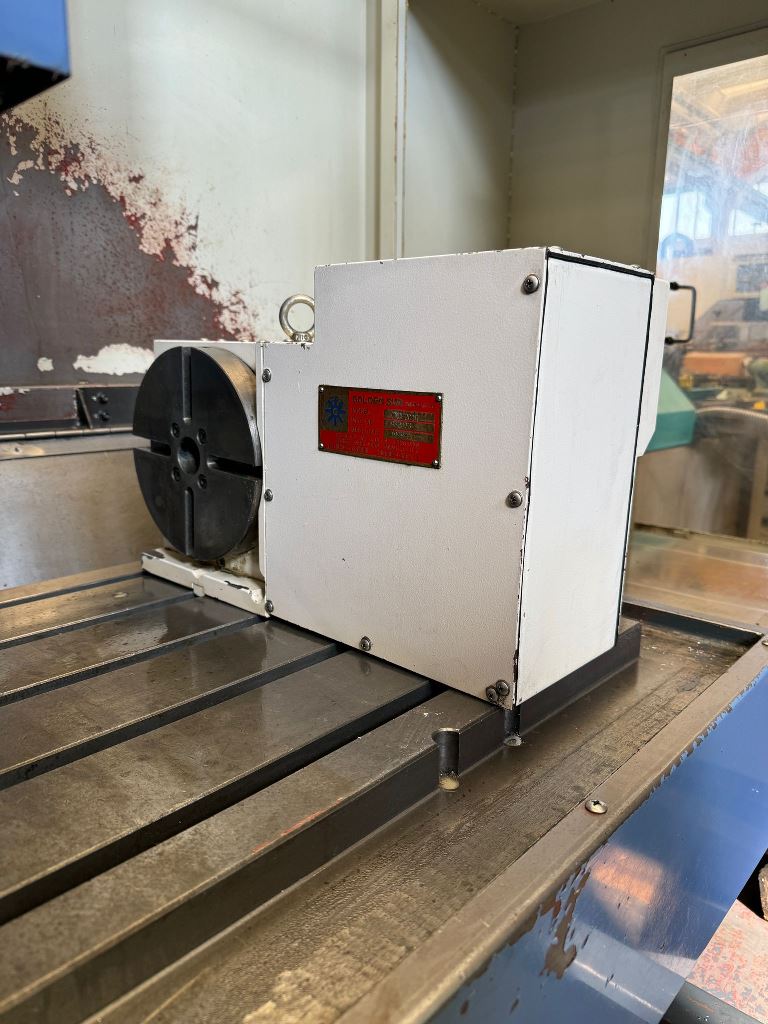

-Fourth axis
USED MACHINE
IMAGES:
FILL OUT OUR FORM FOR MORE INFORMATION
