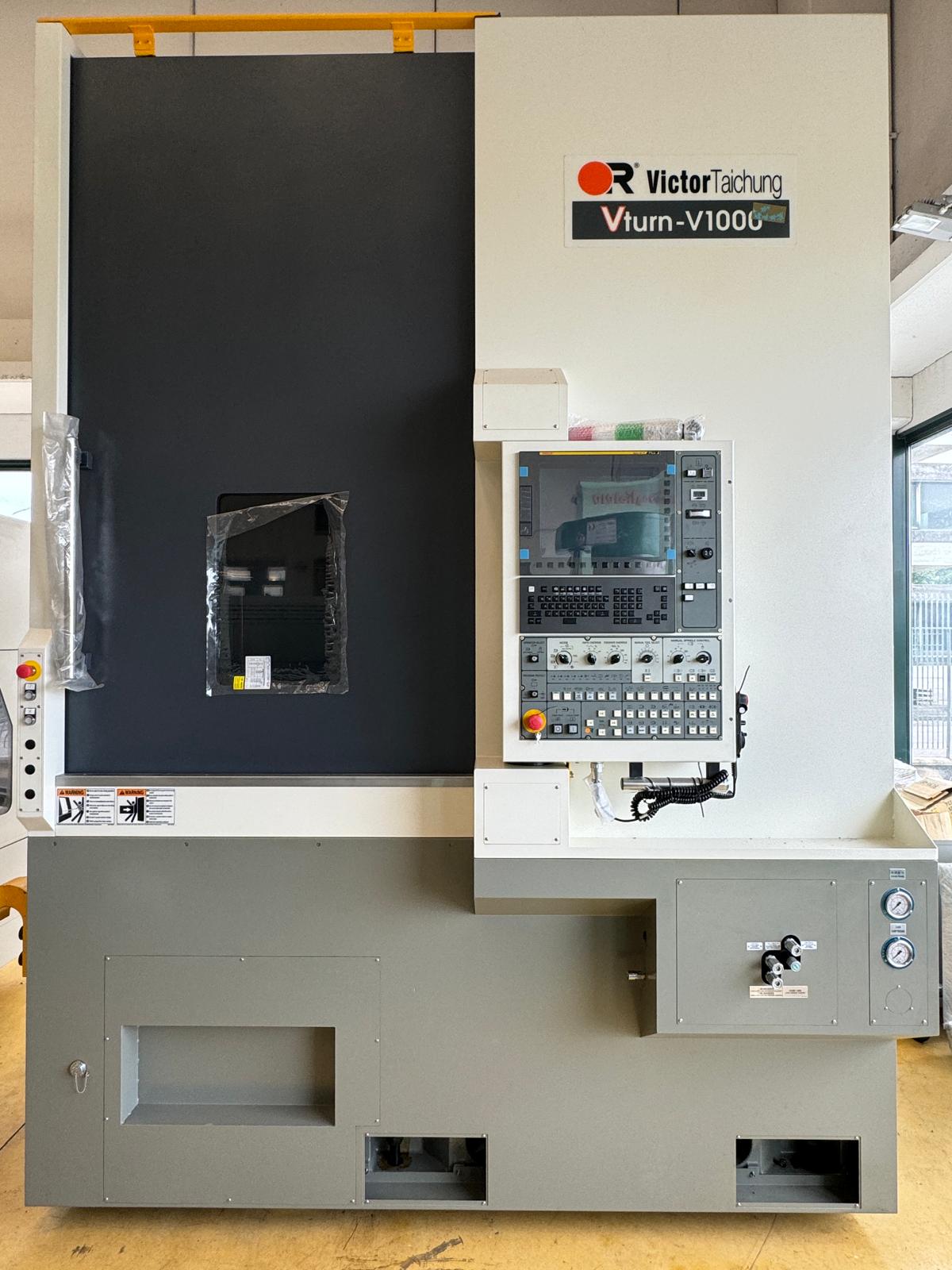

LATHE VICTOR MOD. V1000C
09025
VERTICAL WITH LIVE TOOLS
Strokes:
Max swing diameter 1100 mm
Max turning height 825 mm
Max turning diameter 1000 mm
Axis X 500+40 mm
Axis Z 850 mm
Spindle:
Max speed 1500 rpm
Spindle nose ASA A2-15
Max workpiece weight (chuck included) 1250 Kg
Turret:
No.12 positions
Max speed 3000 rpm
Taper BMT-85
Feeds:
Rapid feedrates X - Z 20 - 20 m/min
X axis screw diam. 50 x 8 mm
Z axis screw diam. 50 x 8 mm
Motors:
Spindle motor 37 - 45 kW
Live tool motor 7 kW
Servomotor X axis - Z 4 - 7 kW
General info:
Lenght 2510 mm
Width 4155 mm
Height 3546 mm
Weight 16000 kg
ACCESSORIES INCLUDED:

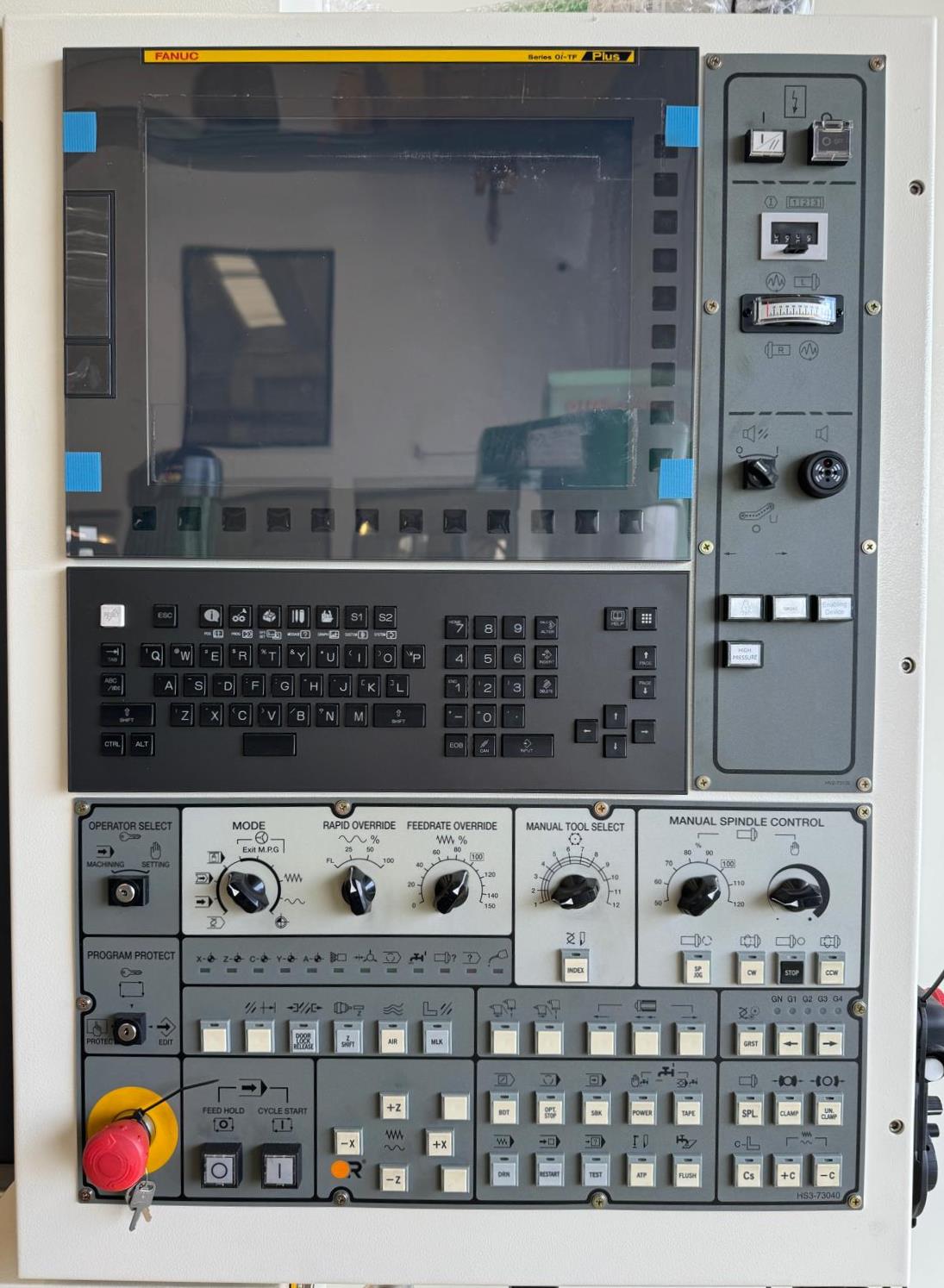

-CNC 0i-TF Plus (15'') Type 0, color graphic display, Manual Guide I, keyboard ONG, electronic wheel
-Serial output, ethernet e USB
-Belt spindle, 1500rpm, Alpha40/6000i, 37-45 kW, ASA A2-15
-Without chuck
-Servo turret BMT, 12 position. with live tools
-Chip conveyor
-High pressure pump 15 BAR
-End work cycle and alarm lamp 3 colors
-Machine area working light
-Adjusting wedges
-Tool box with service tool
-Air blowing through spindle
-Live tool motor increased - from Fanuc a30iF (30Nm) to Fanuc a40iF (38Nm)
-Pressure release (dual pressure)
-Tool setter manual Renishaw M.T.P.
-Oil skimmer
-Kit static toolholder
-Preparation for exhaust fume
-Color black
NEW MACHINE READY DELIVERY
IMAGES:
