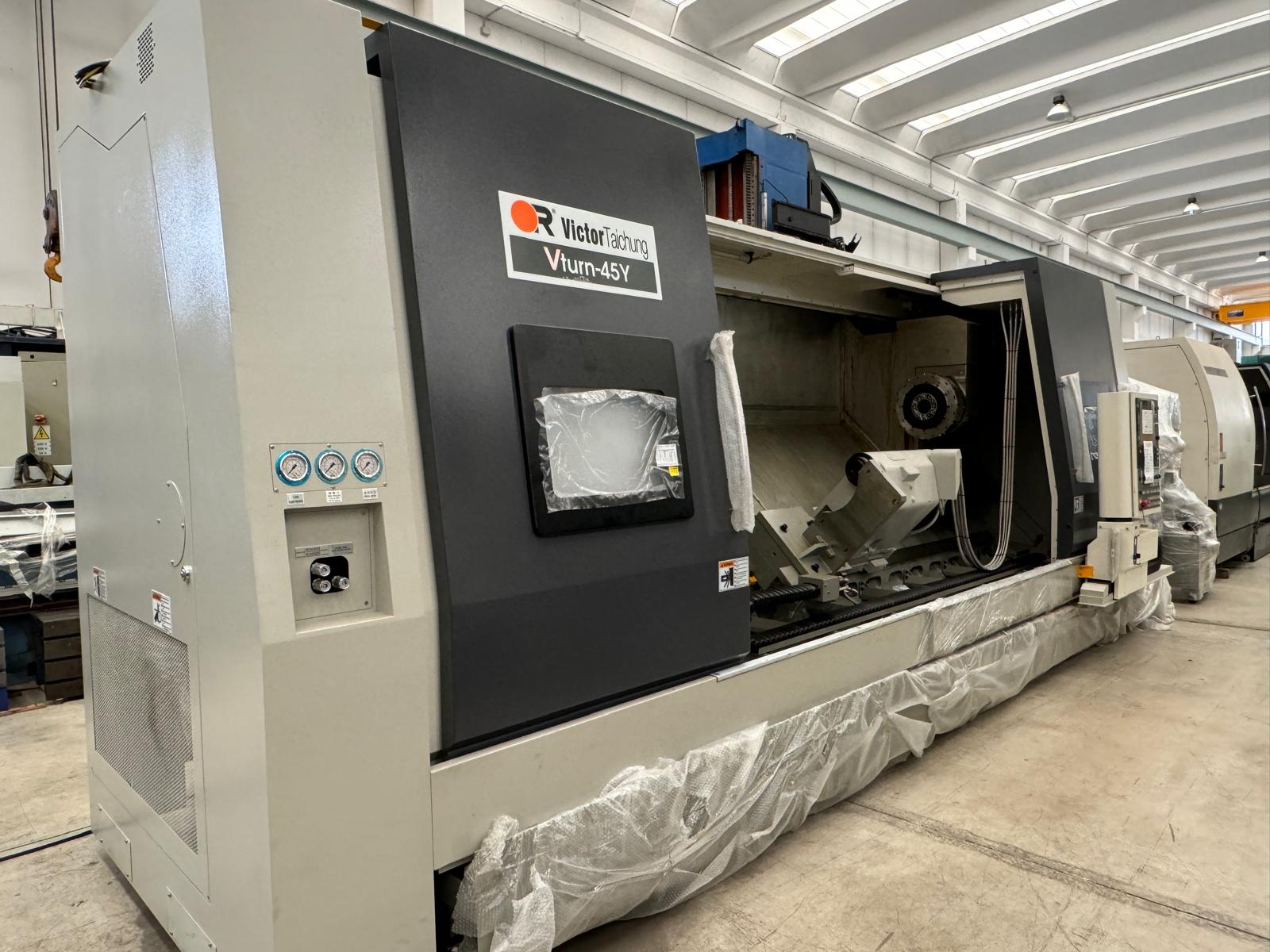

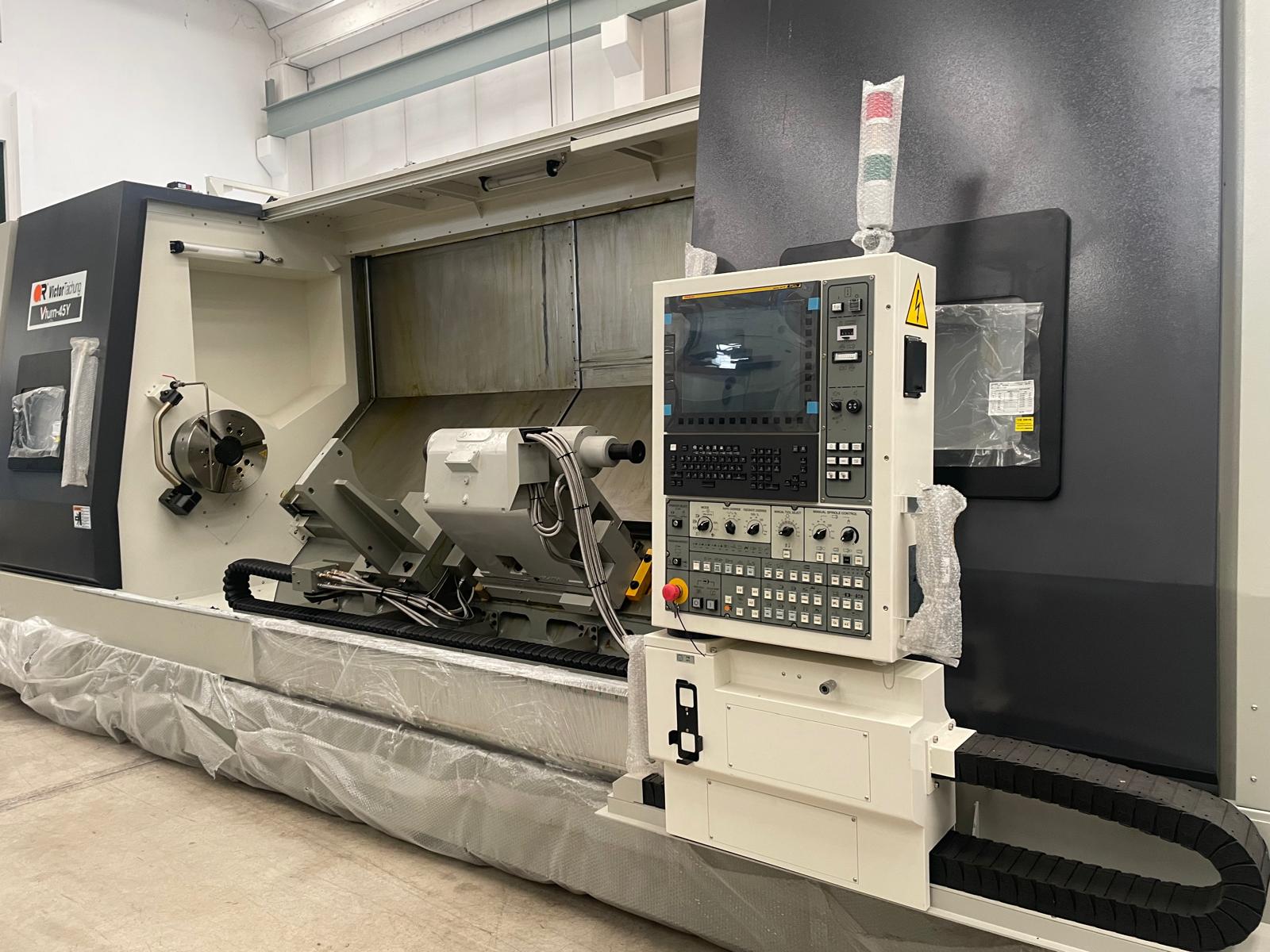

LATHE VICTOR MOD. VT-45/325YC
With live tools
09026
WITH LIVE TOOLS AND Y AXIS
TECHNICAL DETAILS:
Axis:
Distance between centre 3425 mm
Max swing diameter 780 mm
Max turning diameter 600 mm
Axis X 280+120 mm
Axis Y ± 80 mm
Axis Z 3250 mm
Spindle:
Bar passaging 117,5 mm
Max speed 2000 rpm
Spindle nose ASA A2-11
Turret:
No.12 positions
Max speed 3000 rpm
Turret BMT-75
Feedrates:
Rapids X - Z 20 - 12 m/min
Motors:
Spindle power 30 - 37 kW
Live tool motor 7 kW
Servomotor axis X - Z 4 - 6 kW
Servomotor axis Y 4 kW
General info:
Lenght 8500 mm
Width 2700 mm
Height 2900 mm
Weight 19000 kg
ACCESSORIES INCLUDED:

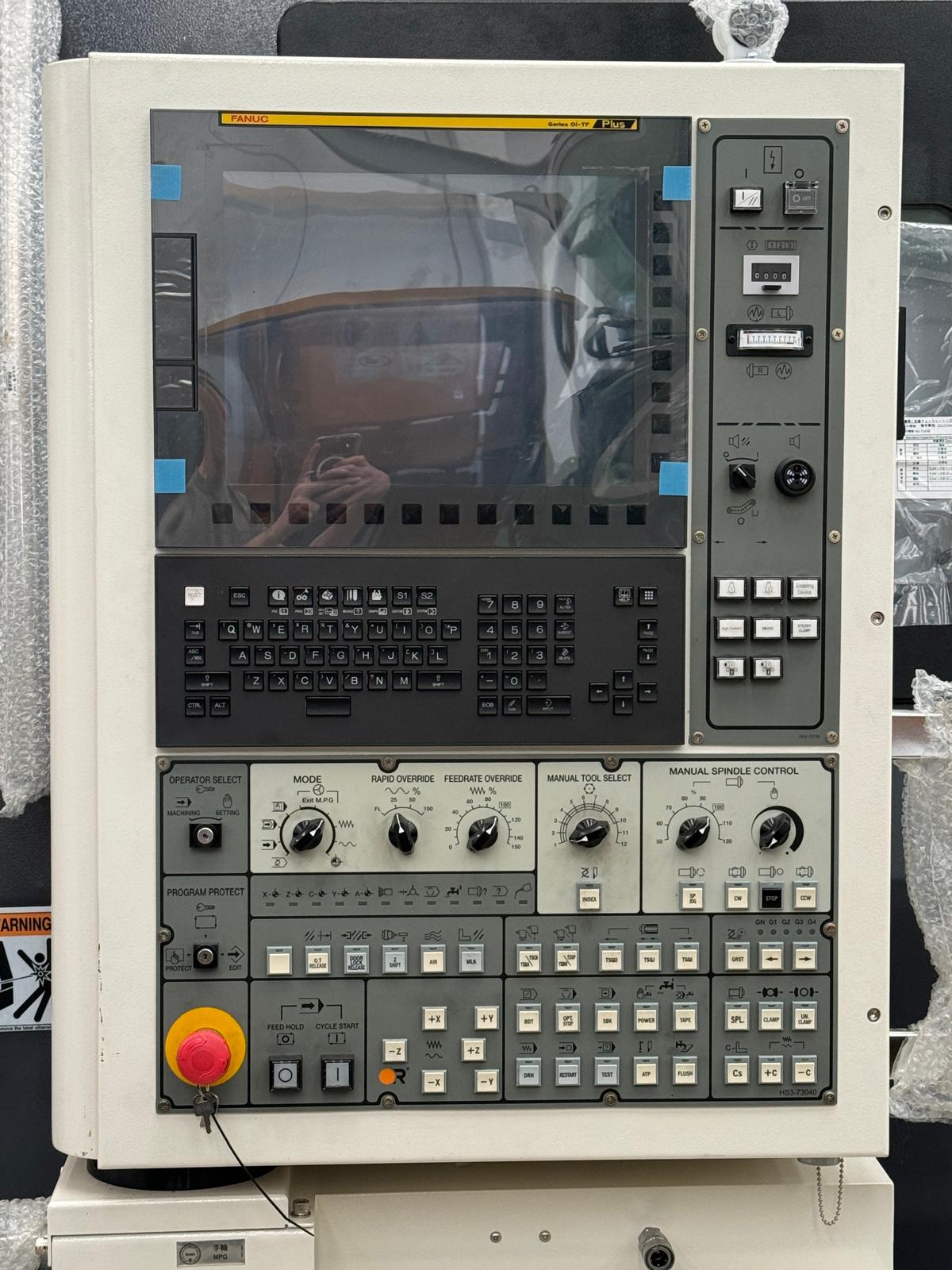

-CNC FANUC 0i-TF Plus (15'') Type 0, color graphic display, Manual Guide I, keyboard ONG, elettronico handwheel
-Serial output, ethernet e USB
-Belt spindle, 1500rpm, Alpha30/6000i, 30-37 kW, ASA A2-11
-Hydraulic chuck - AutoStrong 18"
-Bar passaging 117.5mm
-Chip conveyor
-Rotary tailstock (Built-in)
-High pressure pump Grundfos CRK2-180 (20 BAR) with tank capacity 150L
-Air conditioning of electric cabinet
-Base for hydraulic steady with body positioning by upper carriage clamping
-Oil skimmer
-Lampada di allarme e fine ciclo a 3 colori
-Luce di lavoro integrata nella macchina
-Piedini d'appoggio
-Cassetta portautensili con chiavi di servizio
-Sistema di soffiaggio ad aria per autocentrante
-Manual tool presetting Renishaw M.T.P.
-Carteratura sopra mandrino con incasso per bareni sporgenti
-Preparation for fume exhaust
-Color black
NEW MACHINE READY DELIVERY
IMAGES:
