WORKING AREA:
Center height 315 mm
Turning diameter on the guides 630 mm
Turning diameter on the cross carriage mm 430
Turning diameter on the gap 830 mm
Distance between centers 3000 mm
SPINDLE:
Spindle nose CAMLOCK 11
Spindle bore 103 mm
Spindle taper Metric 120
SPINDLE:
No. speed 21
Spindle revolutions Rpm 20 - 1250
Main motor power Kw 7,5-11
FEEDS:
No. of feeds 120
Longitudinal feed range mm / revs 0.04-12
THREAD:
No. of threads 64
Metric thread range 0.5-120 mm
Thread range withworth tpi 1 / 4-60
Modular Thread Range Module 0.125-30
DP 1-240 diametral pitch thread range
CARRIAGE:
Carriage travel 295 mm
Tool slide stroke 135 mm
TAILSTOCK:
Quill diameter mm 75
Quill taper M5
Quill stroke 250 mm
OVERALL DIMENSIONS:
Length 4600 mm
Width 1250 mm
Height 1400 mm
Net weight 3590 kg
COMPLETE WITH:
-PINTO DG 400 3+3 chuck
-Type C quick change turret with 5 tool holders
-Steady rest diam. 300 mm
-Brake pedal for emergency stop
-Rear cover

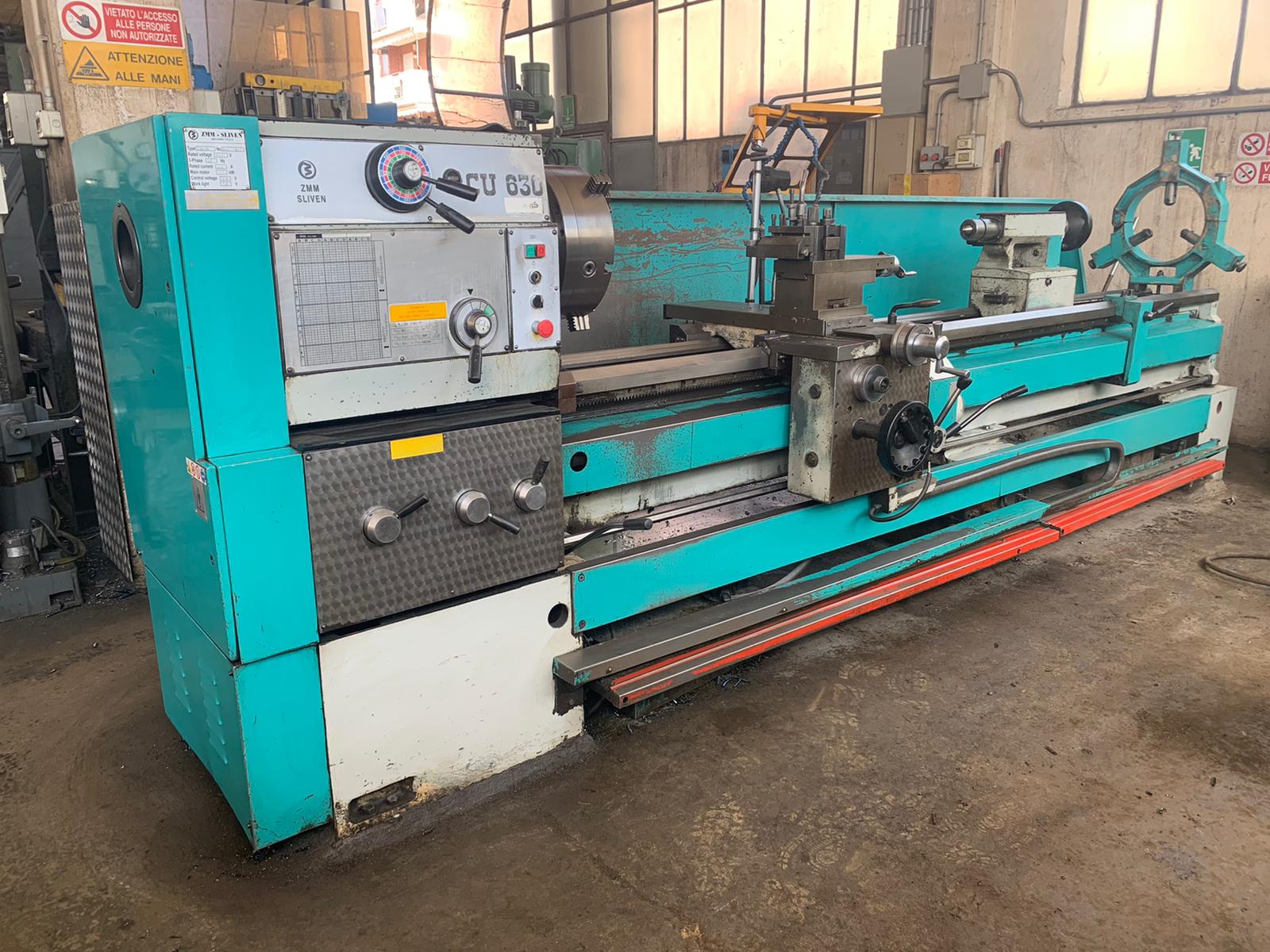

USED MACHINE
