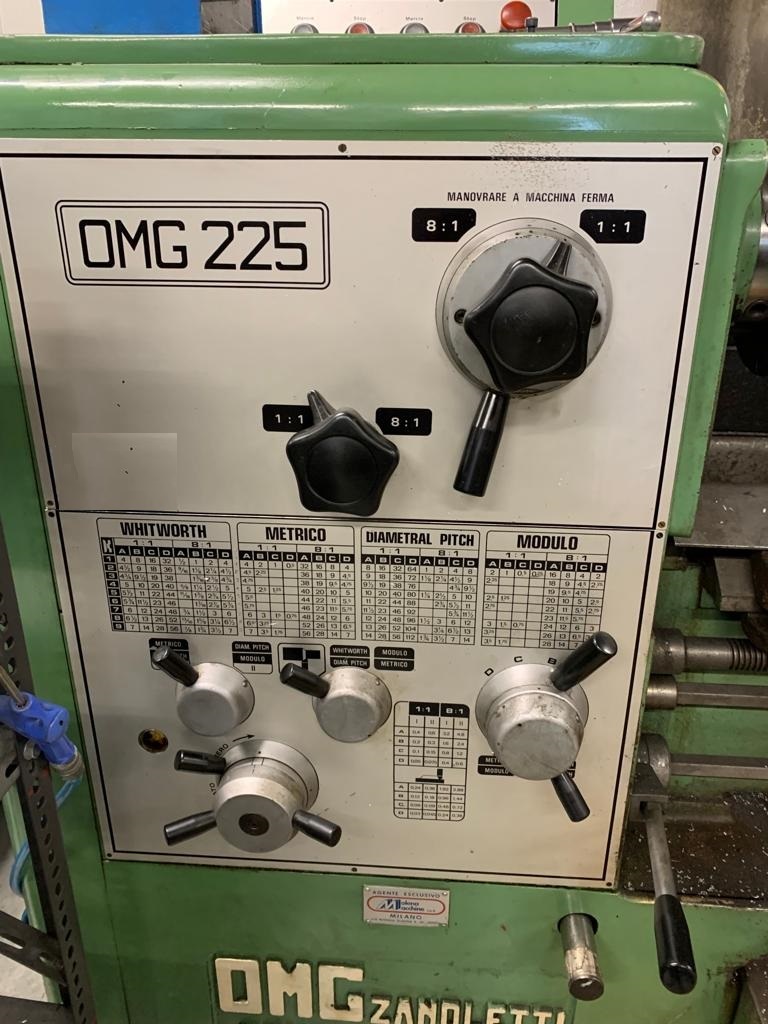

LATHE OMG ZANOLETTI 225x1500
Diameter up to 600 mm
09163
MOD. TP 225x1500
Turning diameter over bed 450 mm
Swing diameter overthe gap 630 mm
Turning diameter on the carriage 280 mm
Length of the carriage resting on the bed 550 mm
Cross carriage length 580 mm
Distance between centers 1500 mm
Bed width 330 mm
Gap lenght 300 mm
Spindle speed 33-2000 rpm
Spindle bore 55 mm
Spindle nose CL in. 6 "
Spindle motor power 5,5 kw
Tailstock quill stroke 220 mm
Tailstock quill diameter 70 mm
Tailstock quill length 370 mm
Morse taper of tailstock No. 5
Cross carriage stroke 320 mm
Tool slide stroke 160 mm
Spindle bearing diameter 100/120 mm
Weight 2250 kg
EQUIPPED WITH:
-Speed variator
-Self-centering chuck diam. 250 mm
-Plateau with 4 jaws diam. 300 mm
-Turret with 19 tool holders
-Steady rest

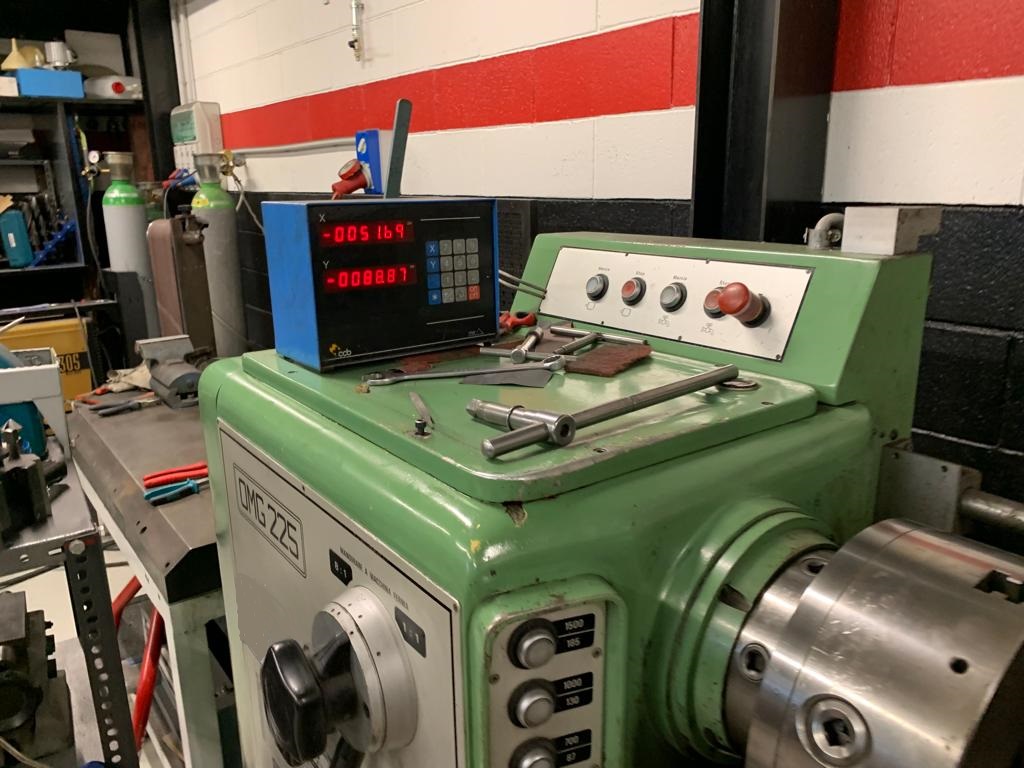

-DRO
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
