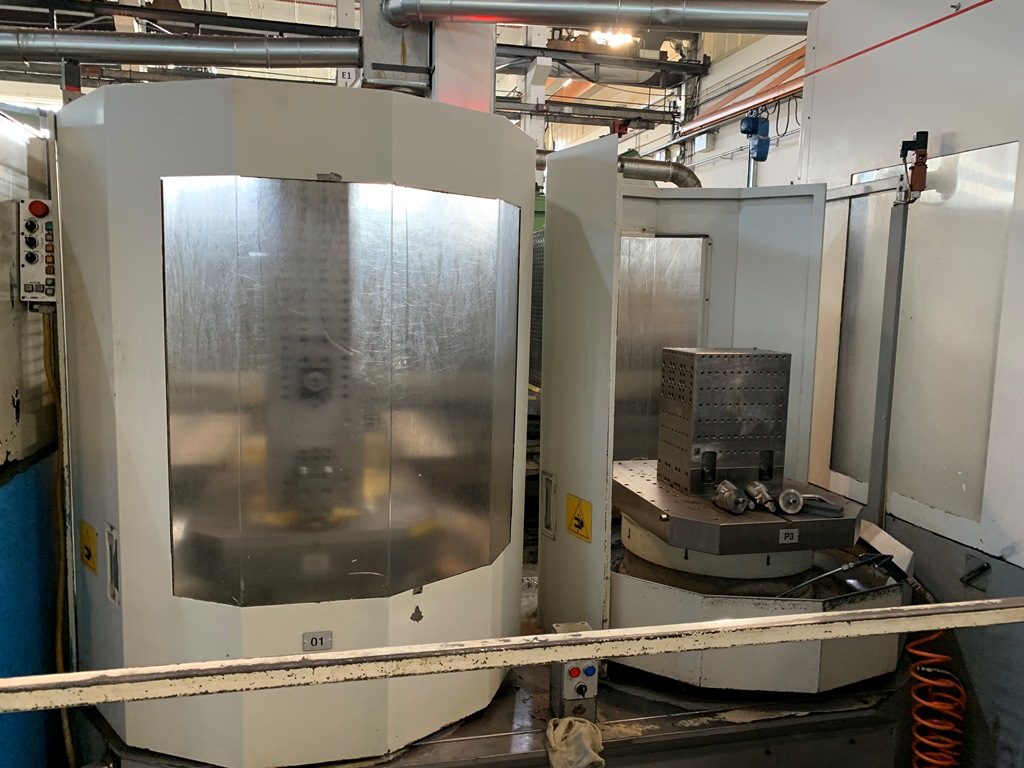

HORIZONTAL CENTER
Multipallet
machine center - horizontal - Used Machines
VIDEOS:
LINEA
09193
09193
LINEA SPAZIO 20 METRO
7 PALLET

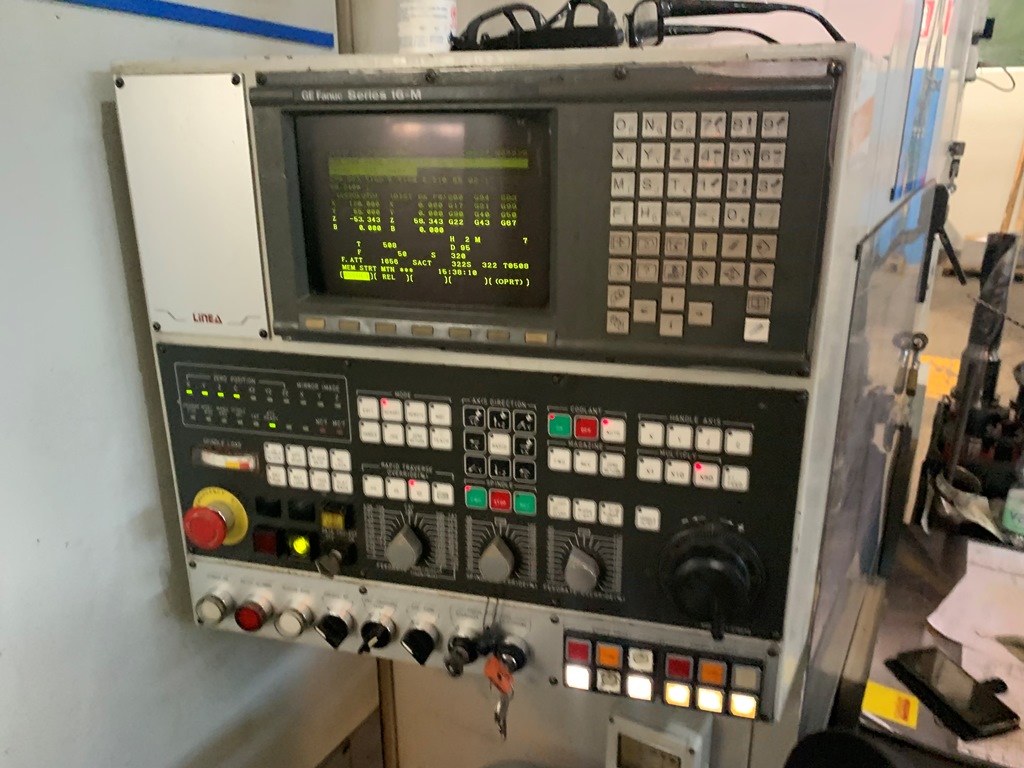

CNC GE FANUC serie 16-M
STROKES_
Axis X stroke mm 1150
Axis Y stroke mm 850
Axis Z stroke mm 910
SPINDLE:
Spindle taper ISO 50 7388/1
Spindle speed rpm 4.000
Spindle motor power (continuous/30 min.) kW 18,5/22
2 speed range change
MULTIPALLET:
Pallet dimensions mm 630x800
Max pallet each weight Kg 1000
TOOL CHANGE:
Tool change 130 positions
Max tool diameter mm 120/400
Max tool lenght mm 400
Max tool weight Kg 25
EQUIPPED WITH:
-Chip conveyor
-Piece washing
-Tool integrity check
-Power controller
-High pressure system 50 bar
-Remote push button
-Optical lines
-Rigid tapping
USED MACHINE
