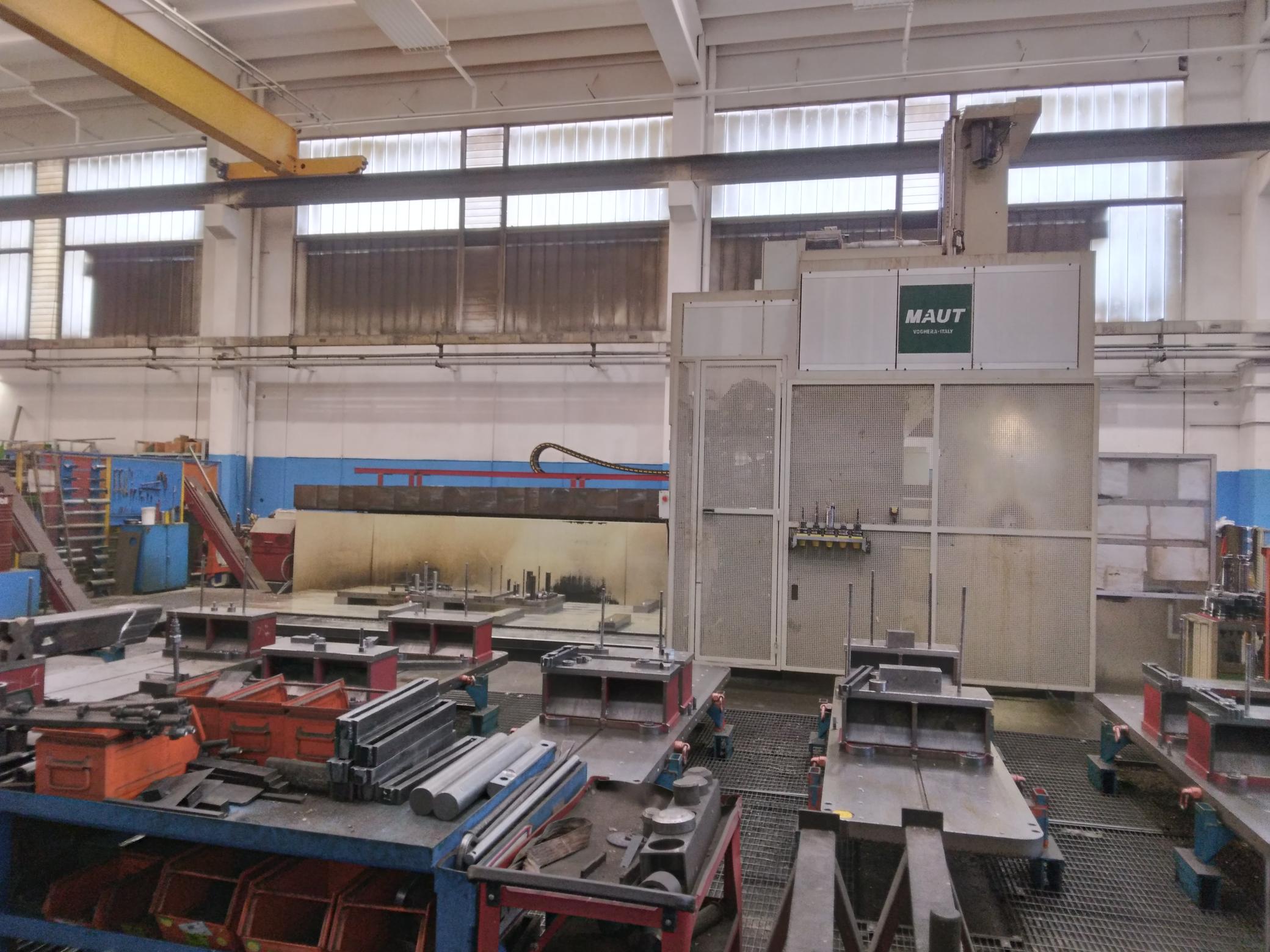

MILLING MAUT MOD. PM3
milling gantry/portal - Used Machines
VIDEOS:
MAUT
09200
09200
CNC HEIDENHAIN TNC 530
AXIS STROKES:
Longitudinal stroke X axis 7000 mm
Vertical travel Z axis 1500 mm
Cross travel Y axis 3600 mm
WORK PLAN:
Dimensions mm 9000x2500x300
T-slots n.10, mm 22 H7
Distance between T-slots 250 mm
FEEDRATES:
Working speed mm/min 15000
Rapid speed mm/min 20000
TOOLS MAGAZINE:
Number of positions 60
Max tools diameter mm 125
Max tool length 350 mm
MILLING HEAD:
Spindle taper BT50
Continuous power (S3) kW 32
Rotation speed rpm 3300
Positions:
-Axis A 2x180°
-Axis B 144x2,5°
MACHINE OVERALL DIMENSIONS:
Overall dimensions mm 14400x7900
Height mm 6000
EQUIPPED WITH:
-N.2 chip conveyors
USED MACHINE
