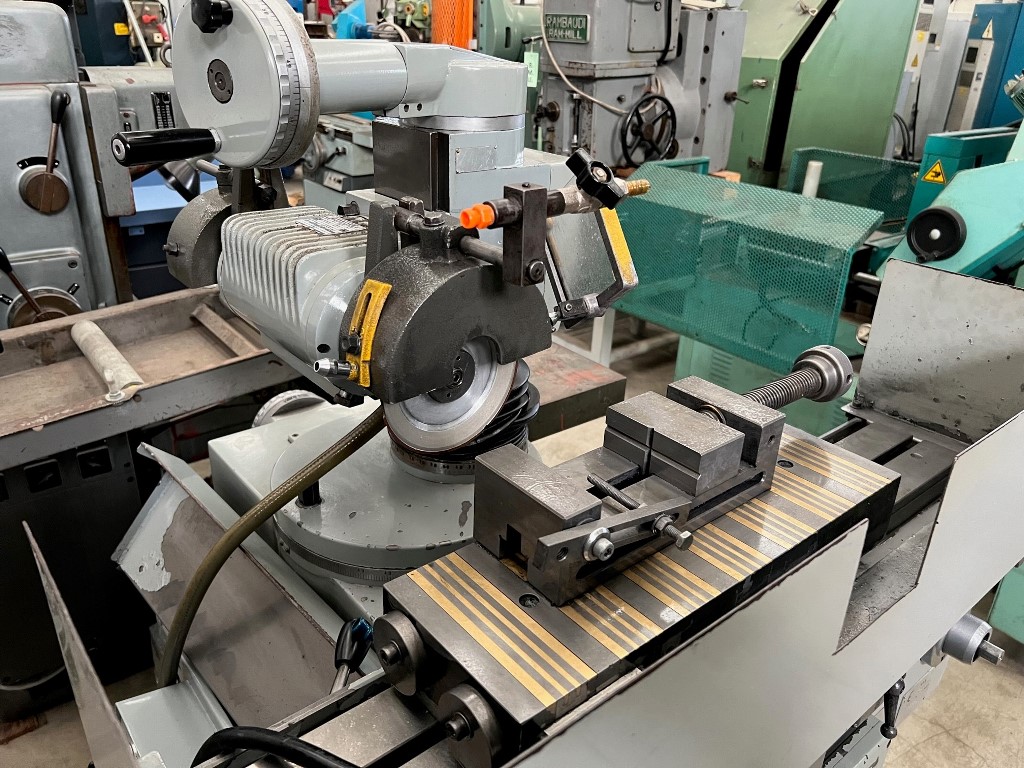

SHARPENING NESI GRINDER 400S
Universal
sharpeners - Used Machines
NESI
09214
09214
UNIVERSAL
LONGITUDINAL TABLE:
Stroke 400 mm
Work table length 800 mm
Work table width mm 105
Workpiece table rotation 360 degree
GRINDING HEAD:
Vertical working stroke 195 mm
Vertical electrospindle movement mm 110
Overall movement 305 mm
Bilateral movement +/- 80 mm
Rotation 360 degree
ELCTRIC SPINDLE:
Speed 3000/6000 rpm
equipped:
Magnet plate.
USED MACHINE
IMAGES:
FILL OUT OUR FORM FOR MORE INFORMATION
