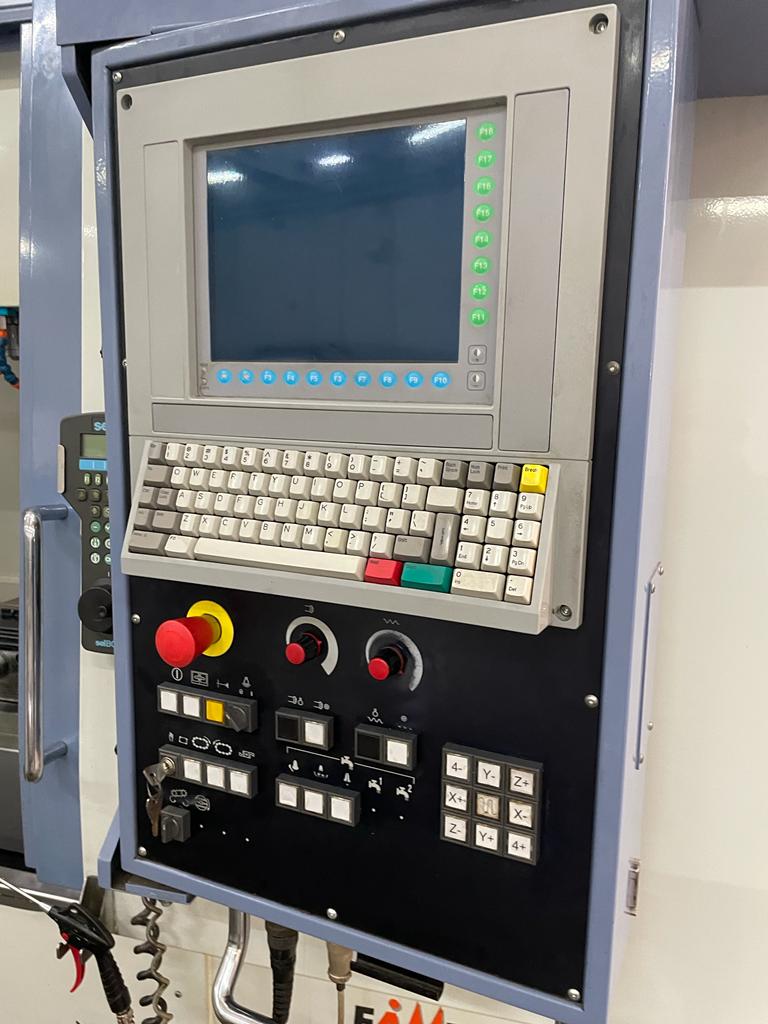

CNC SELCA 3045
STROKES:
X axis (Iongitudinal) 1200 mm
Y axis (transversal) mm 600
Z axis (vertical) mm 600
TABLE:
Dimensions 1380x620 mm
Max table capacity Kg 800
SPINDLE:
Cone DIN 69871 ISO 40
Spindle motor power (30 min) Kw 18.5
Continuous power (S1) Kw 15
Rotation speed 1 / min 50-10.000
TOOL CHANGE:
Number of places in stock 24
BIDIRECTIONAL tool selection
Max tool diameter 75 mm
Max tool length 280 mm
Max tool weight Kg 6
Tool change time sec 1.7
Chip / chip tool change time (indicative) sec 3.5
GENERAL DATA AND INSTALLATION:
Surface occupied 4290x3810 mm
Overall height 3300 mm
Total weight Kg 6500
REFRIGERANT SYSTEM:
Coolant collection tank capacity dm3 500
EQUIPPED WITH:
-Tool cooling through the spindle
-Chip evacuator
-Electrical predisposition for the 4th axis

USED MACHINE
