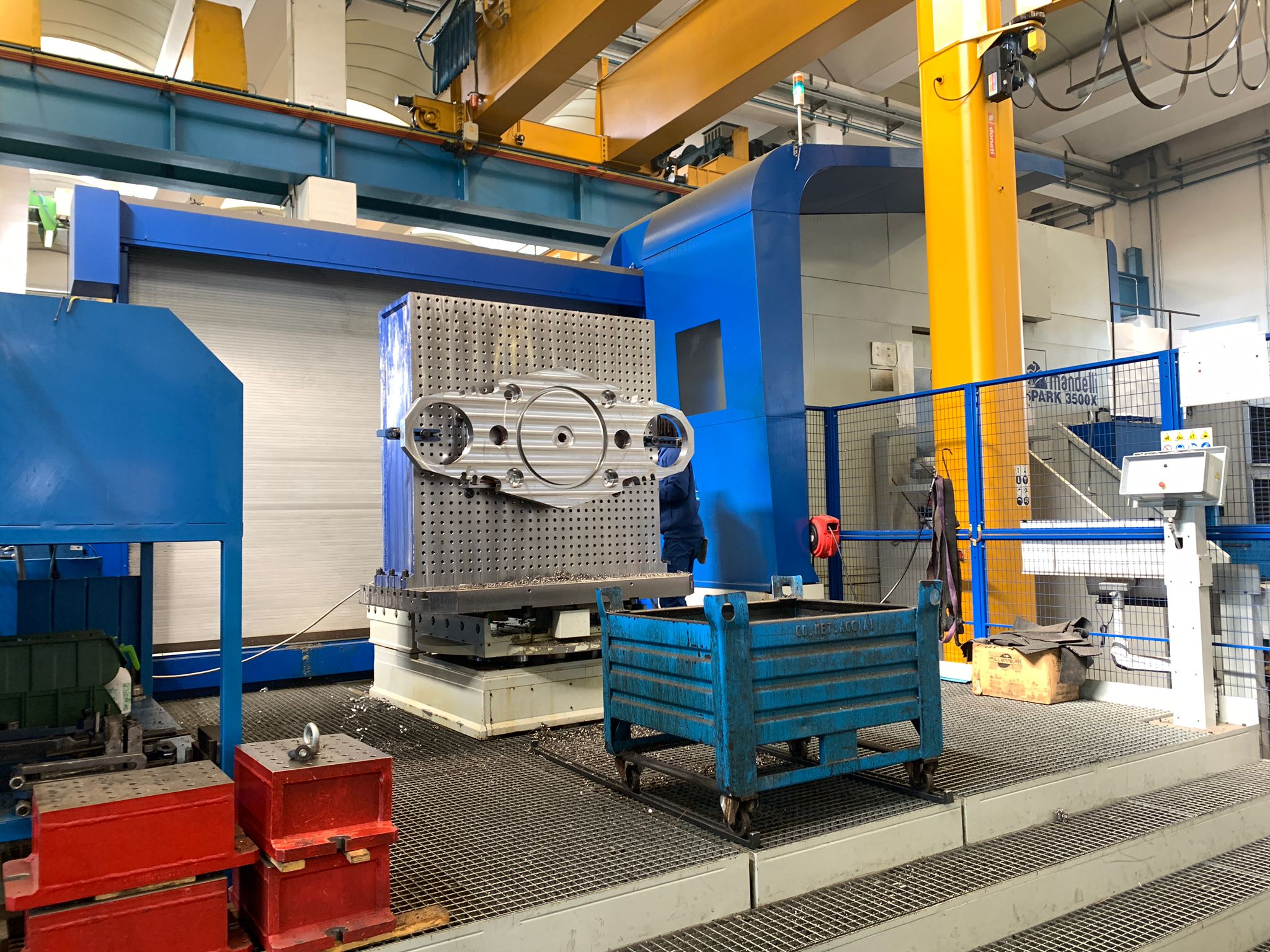

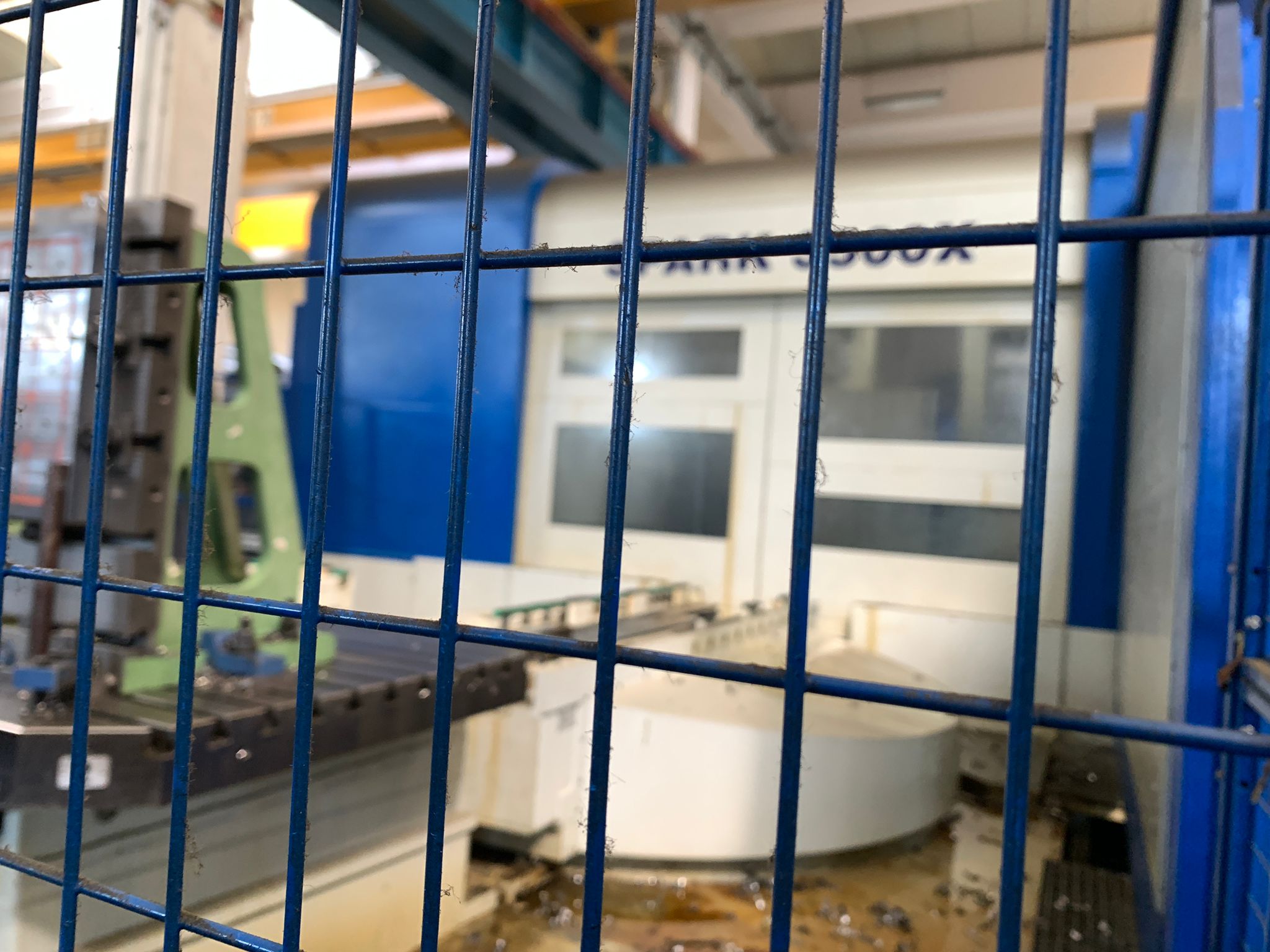

CENTER MANDELLI MOD. SPARK 3500X
5 axis machine center - Used Machines
VIDEOS:
MANDELLI
09257
09257
HORIZONTAL CNC 5 AXIS WITH PALLET CHANGE

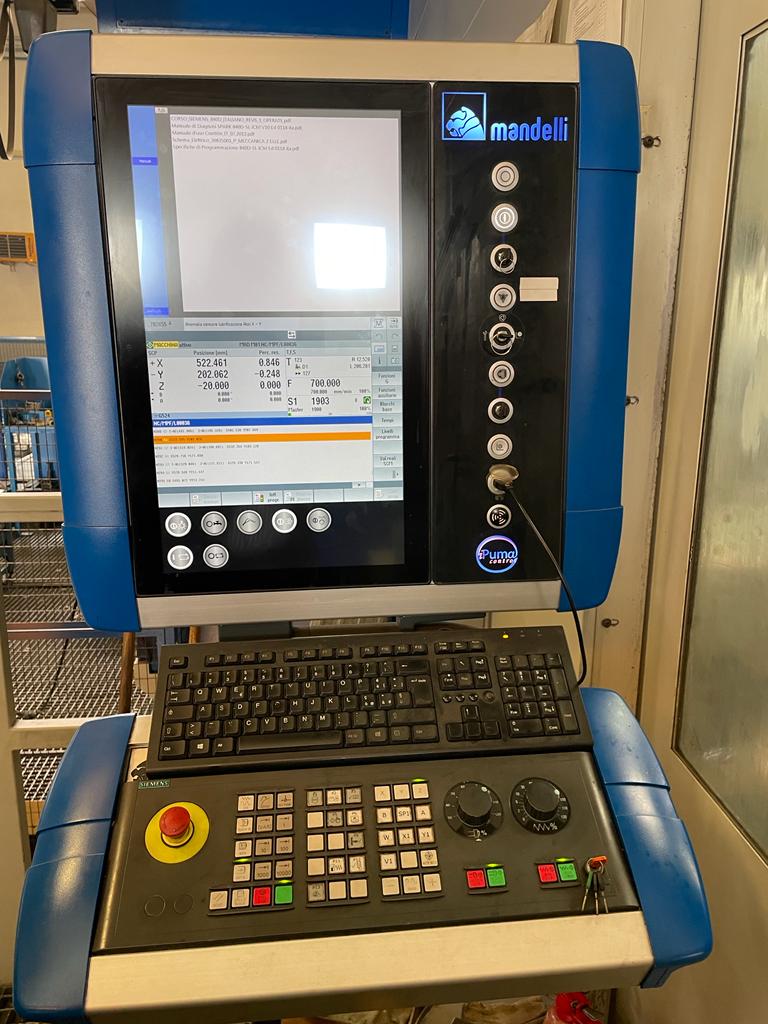

CNC Siemens Sinumerik 840D
Number of pallets 2
Pallet size 1250x1600 mm
Pallet load capacity max 5100 kg
4th axis 0.001° NC rotary table

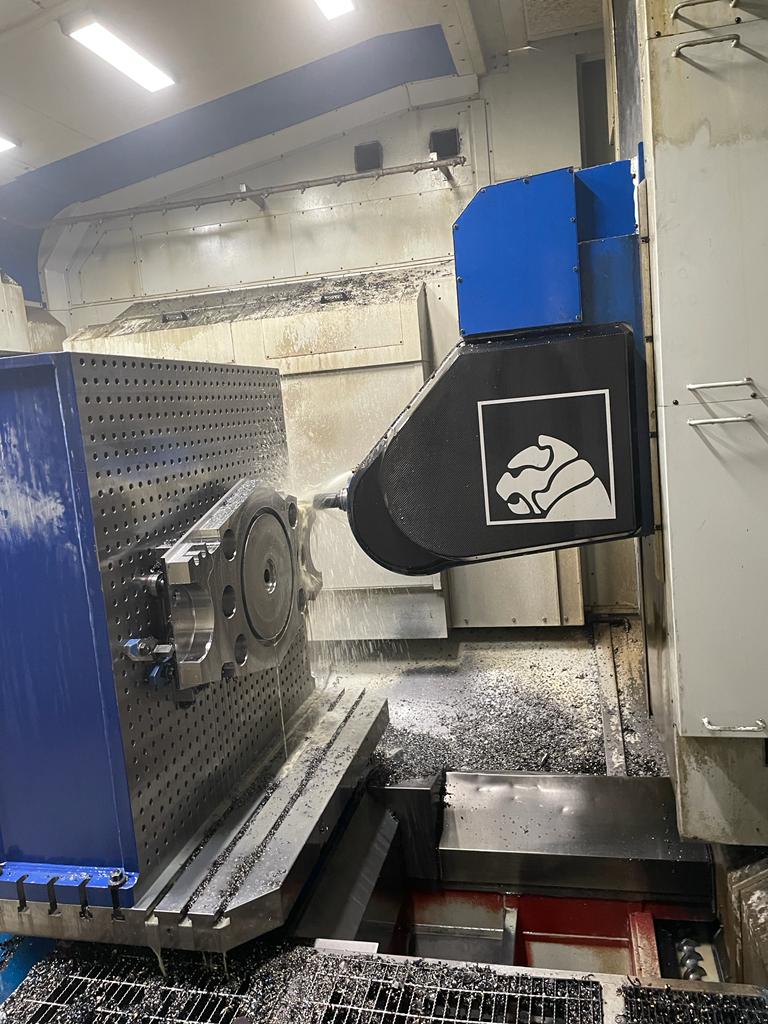

5th Axis NC-Tilting milling head A-Axis +80° ~ -120°
Axis X stroke 3500 mm
Axis Y stroke 1850mm
Axis Z stroke 1800 mm
Feeds X,Y,Z up to 20000 mm/min
Rapids X,Y,Z up to 35000 mm/min
Tool taper HSK-A100
Spindle drive motor rating 46/67.7 kW
Spindle speeds up to 6000 rpm.
Spindle torque max 1851 Nm
Tool magazine 200 station
Tool diameter max 120 mm/425 mm
Tool length max 600 mm
Tool weight max 35 kg
Coolant through the spindle 25/40/60 bar
USED MACHINE
YEAR 2018
IMAGES:
VIDEOS:
FILL OUT OUR FORM FOR MORE INFORMATION
