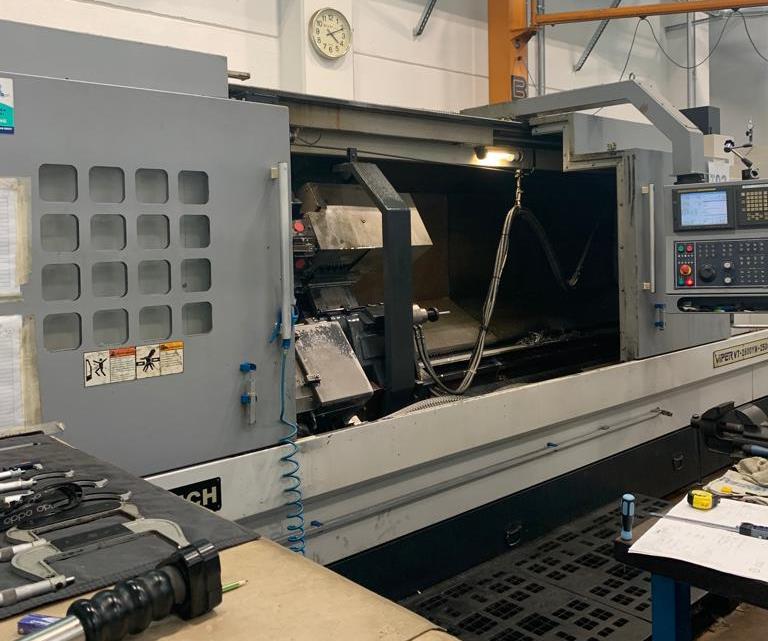

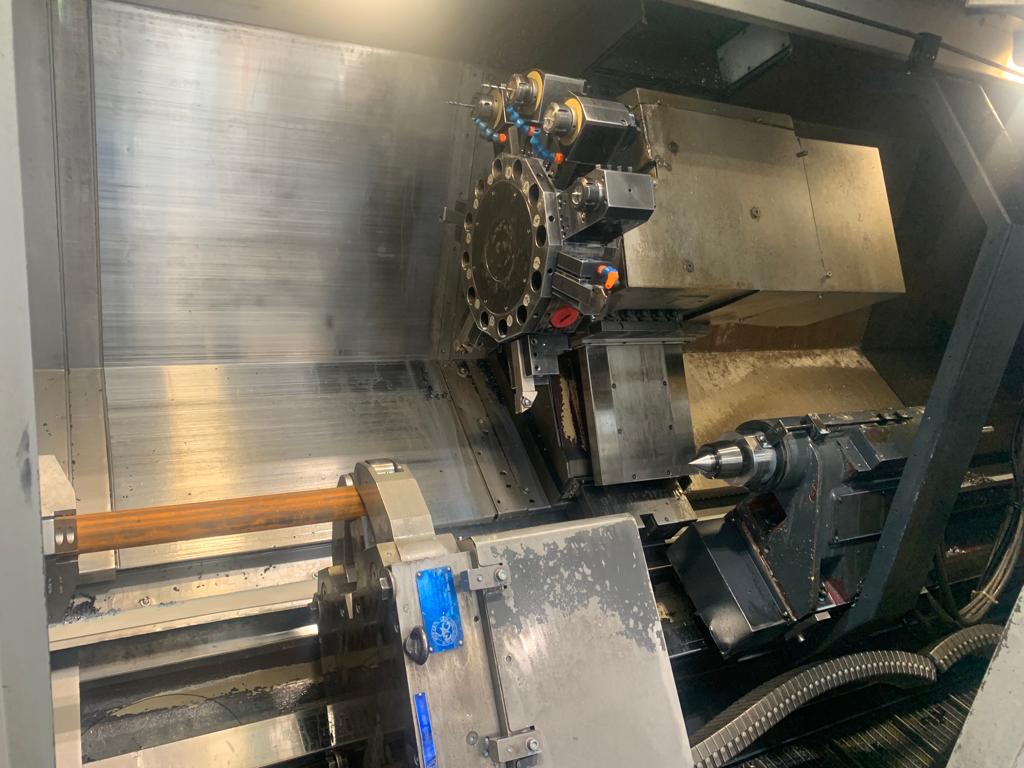

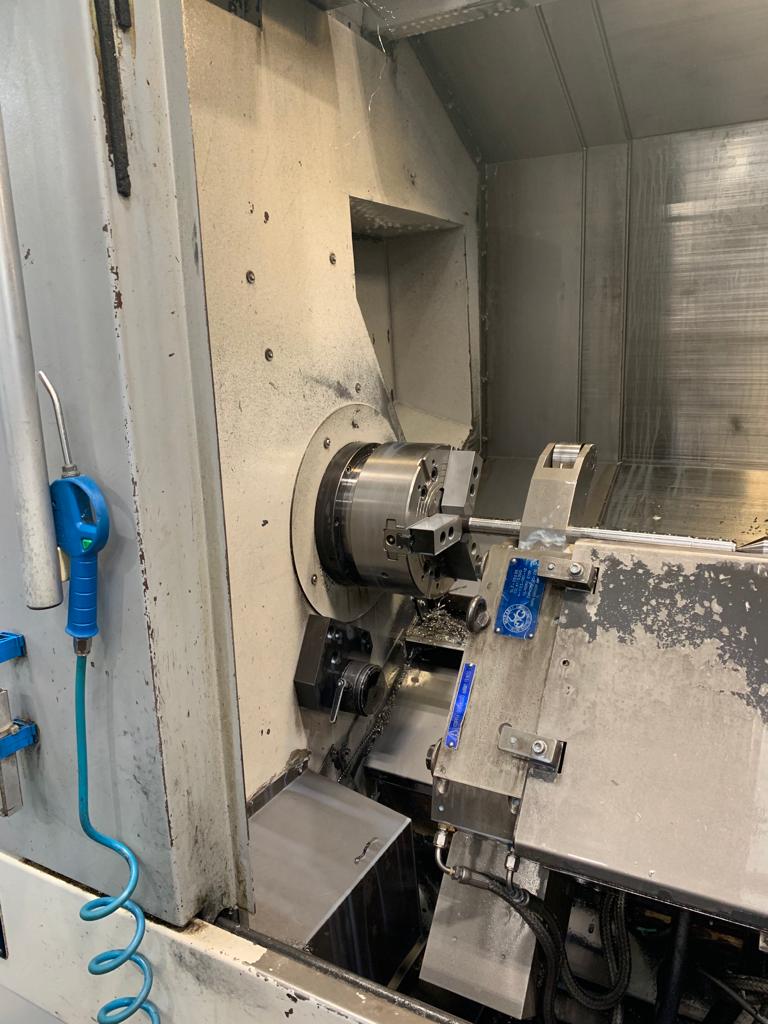

LATHE VIPER VT-2800YM-2500
With live tools
.jpeg)
.jpeg)
.jpeg)
09280
CNC HORIZONTAL AXIS
AXIS Y
LIVE TOOLS
CNC FANUC 21i-TB
WORKING AREA:
Max swing diameter on the bed mm 600
Max turning diameter 390 mm
Max swing diameter on the guides 480 mm
Max turning length 2500 mm
STROKES:
X axis stroke 195 + 110 mm
Z axis stroke 2600 mm
Y axis stroke mm ± 60
SPINDLE:
Spindle nose A2-8
Spindle bore diameter mm 87
Bar passage diameter mm 77
Spindle rotation speed rpm 3500
Spindle motor power HP 35
TURRET:
Number of tool stations 12
Tool holder type VDI 40
TAILSTOCK:
Quill diameter mm 110
Quill stroke mm 100
Tailstock attachment MT-5
DIMENSIONS AND WEIGHT OF THE MACHINE:
Approx. overall dimensions width mm 5,700 + 900 chip conveyor
Approx. depth mm 2,000 + 400 pulpit
Approx. height mm 2.400
Weight approx. Kg 12000
EQUIPPED WITH:
-Chip evacuator
-Hydraulic self-centering chuck mm 380
-Automatic tool presetting Renishaw Rp3
USED MACHINE
YEAR 2010
IMAGES:
FILL OUT OUR FORM FOR MORE INFORMATION
