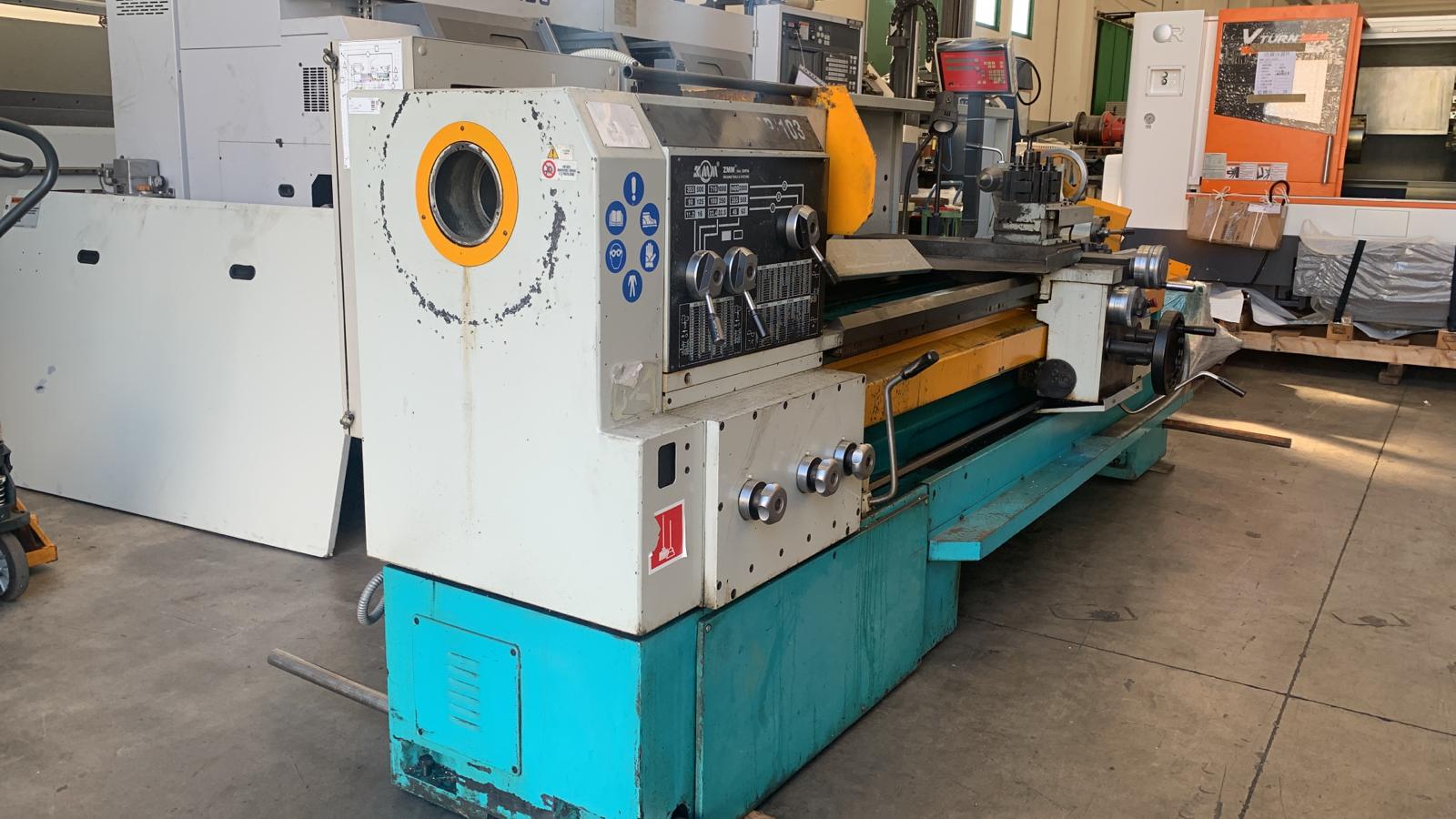

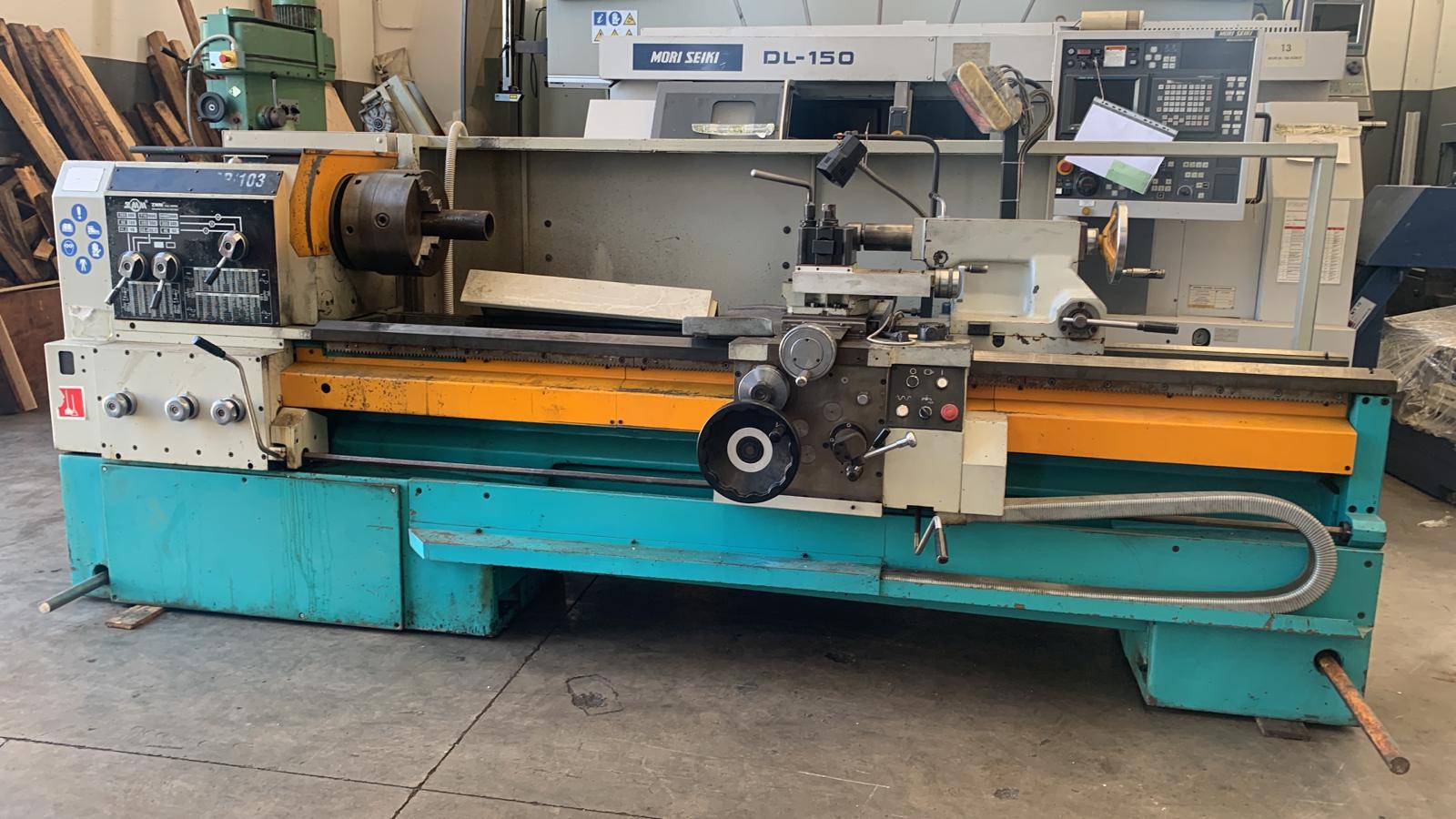

LATHE EGITAL MOD.29P/103x2000
Diameter up to 600 mm
.jpeg)
.jpeg)
.jpeg)
.jpeg)
09313
Height of center mm 290
Distance between centers mm 2000
Bed width mm 450
Turning diameter on the bed mm 580
Turning diameter on the carriage mm 390
Turning diameter on the gap mm 750
Spindle nose DIN #11
Spindle cone Metric 120
Spindle bore mm 103
Spindle speed n.18 - rpm 11.2-2000
SPindle motor power kW 11
Carriage stroke mm 300
Cross slide stroke mm 150
Tailstock quill diameter mm 75
Tailstock quill stroke mm 150
Tailstock quill cone Morse 5
Approx. overall dimensions (bxhxl) mm 1300x1430x3805
approx. weight Kg 3960
EQUIPPED WITH:

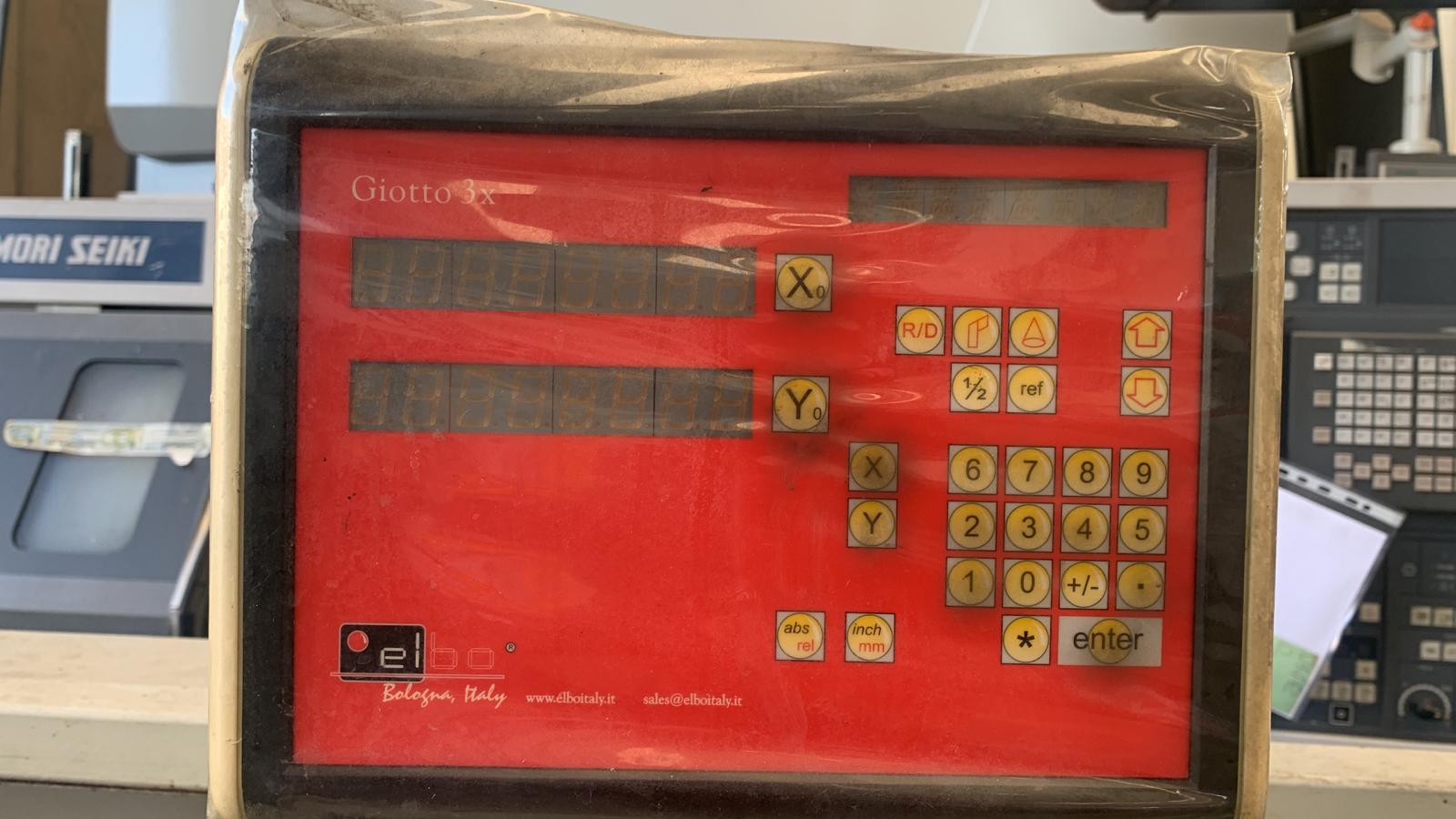

-D.R.O. 2 axis
-Self-sentering chuck Pinto diam. mm 315 D.G. 3+3+3
-Plateau diam. mm 500
-Turret with 6 toolholder
-Rotary tailstock + tailstock with spindle
-Steady rest
-Follow rest
USED MACHINE
