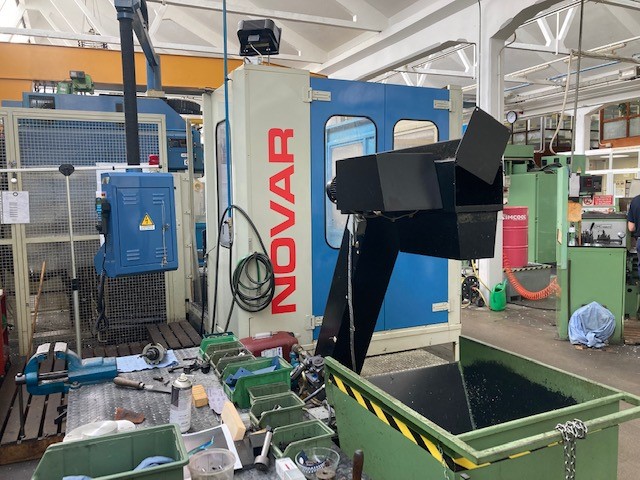

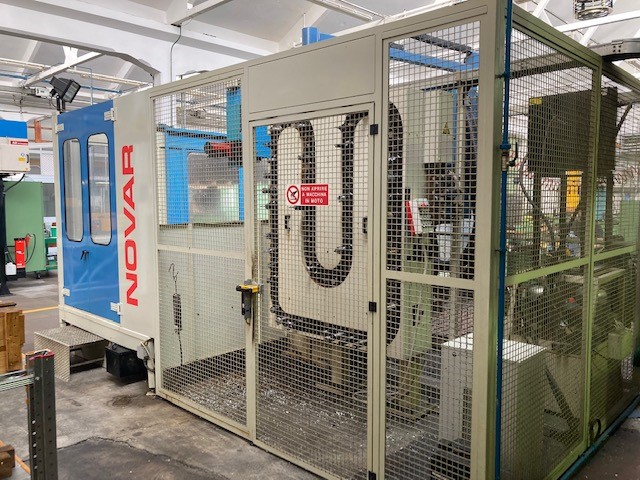

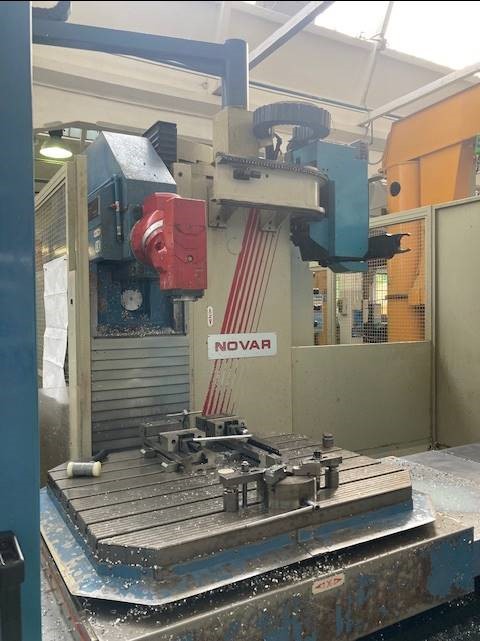

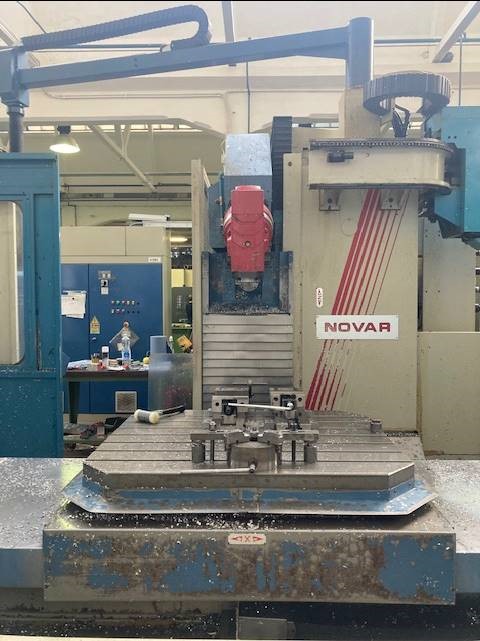

MILLING NOVAR RUNNER 1200
With rotary table
milling cnc - Used Machines
VIDEOS:
NOVAR
09310
09310

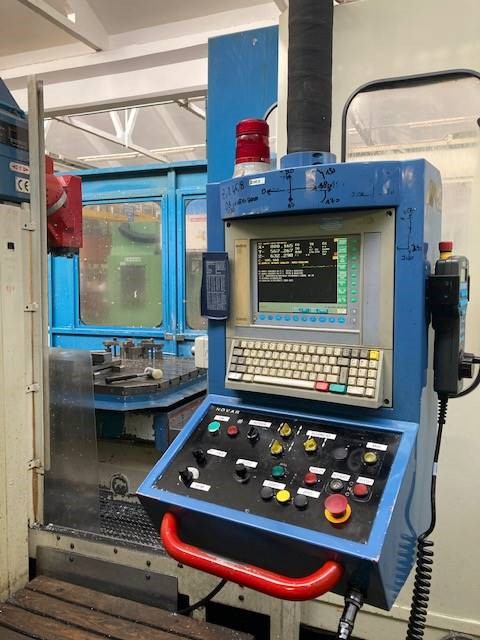

CNC SELCA 3045 P
TABLE:
Rotary table dimensions mm 1000x1200
T-slots n.7
T-slots width mm 18
T-slots distance mm 120
Load Kg 3500
AXIS:
Axis X stroke mm 1800
Axis Y stroke mm 850
Axis Z stroke mm 1300
SPINDLE:
Spindle motor power kW 14
Spindle speed rpm 10-6000
Total installed power kW 30
TOOL CHANGE:
Tool change 60 positions
EQUIPPED WITH:
- Auotomatic universal milling head
spindle nose ISO 50
max spindle speed 6000 rpm
A axis positioning 1° x 360
B axis positioning 2,5° x 144
-Chip conveyor
USED MACHINE
