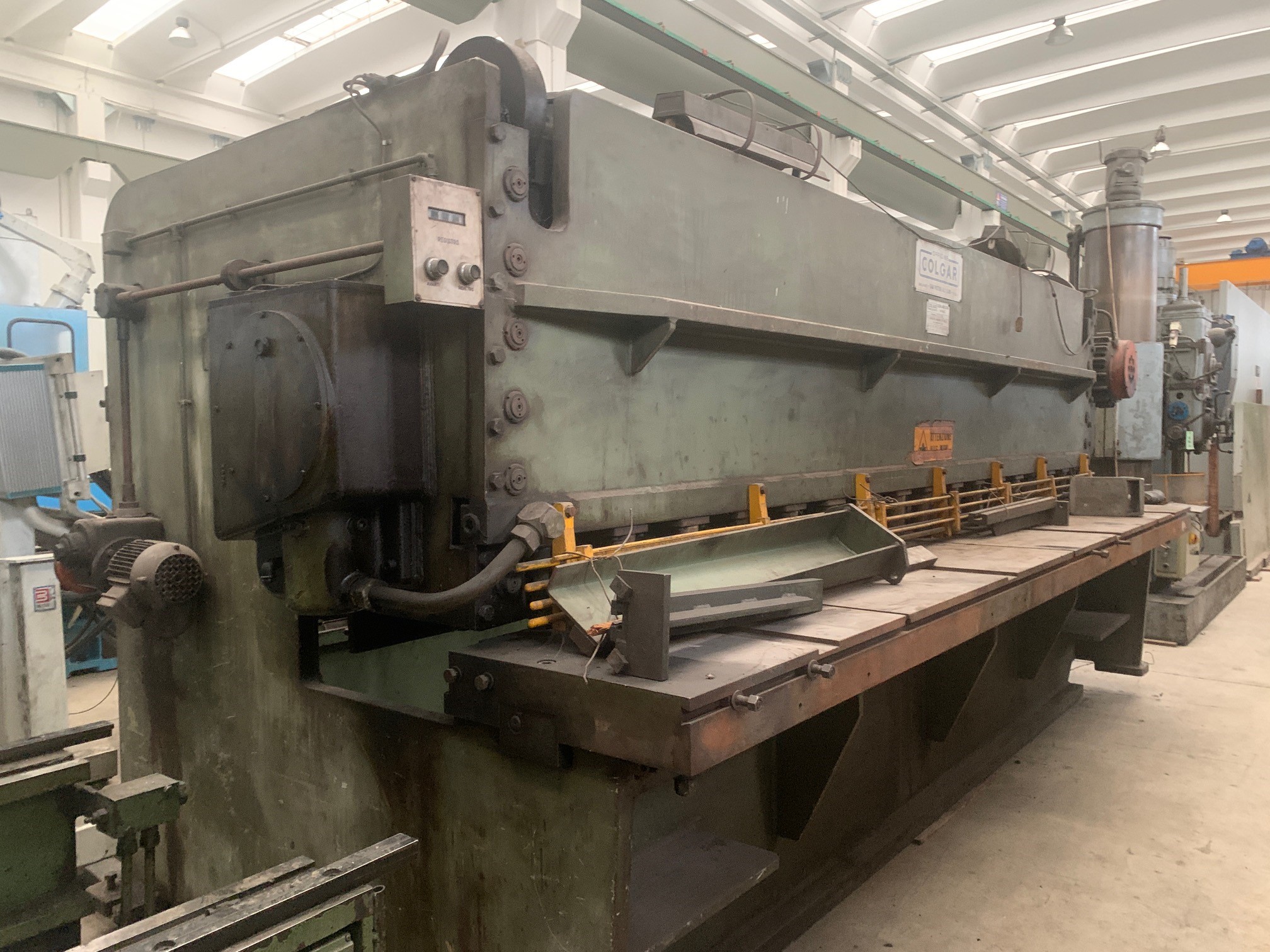

SHEAR COLGAR MOD. C.405
Guillotines shear
sheet metal working - Used Machines
.jpg)
.jpg)
COLGAR
09323
09323
Cutting lenght mm 4050
Blade lenght mm 4150
Freedistance between columns mm 4150
Gap in columns mm 500
Cutting capacity with sheet metal R=42 Kp/mmq mm 5
Adjustable register mm 700
Downfeed per minute n.40
Cutting angle 1° 48'
Blankholder pistons stroke mm 15
Main motor power kw 11
Net machine weight kg 13100
USED MACHINE
IMAGES:
FILL OUT OUR FORM FOR MORE INFORMATION
