Max workpiece dimensions (wxdxh):
-mm 600x470x240 (flushing)
-mm 600x470x230 (submerged)
Max workpiece weight:
-500 kg (flushing)
-350 kg (submerged)
Work tank dimensions (wxd) mm 850x610
X axis travel 400 mm
Y axis travel 300 mm
Z axis travel 250 mm
U - V axis travel mm 120x120
Taper angle (on part thickness of 130 mm) ± 25 degrees
Wire diameter 0.1 - 0.3 mm
Wire tension N 3-23
Machining method: Flushing, submerged
Wire feed speed mm/sec 420
Distance from floor to table top 995 mm
Wire bobbin weight Kg 8
Machine dimensions (lxdxh) mm 2545x2495x2130
Machine installation space (lxd) mm 3780x3845
Machine weight Kg 3300
Total input power kVA 13 - Hz 50/60
DIELECTRIC TANK:
-External dimensions (lxp) mm 730x2050
-Weight (empty) Kg 450
-Dielectric tank capacity lt 650
-Dielectric fluid filtration method: 3 replaceable paper filter
-Deionizer: Ion-exchange resin (18 lit. type)

USED MACHINE
YEAR 2016

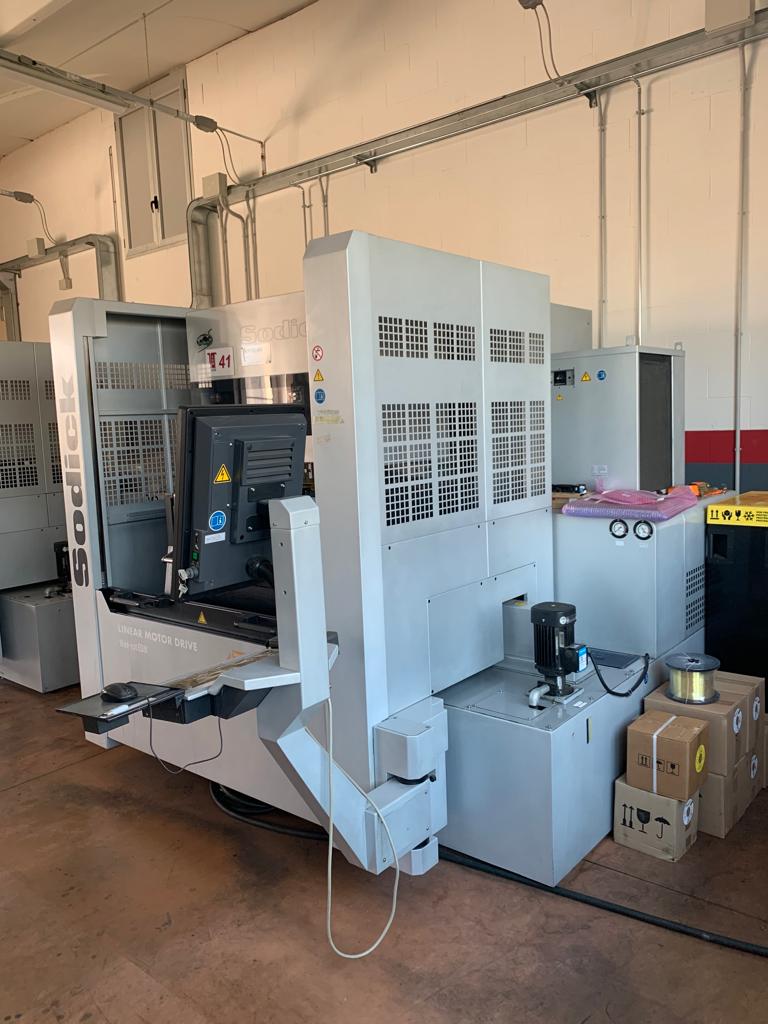

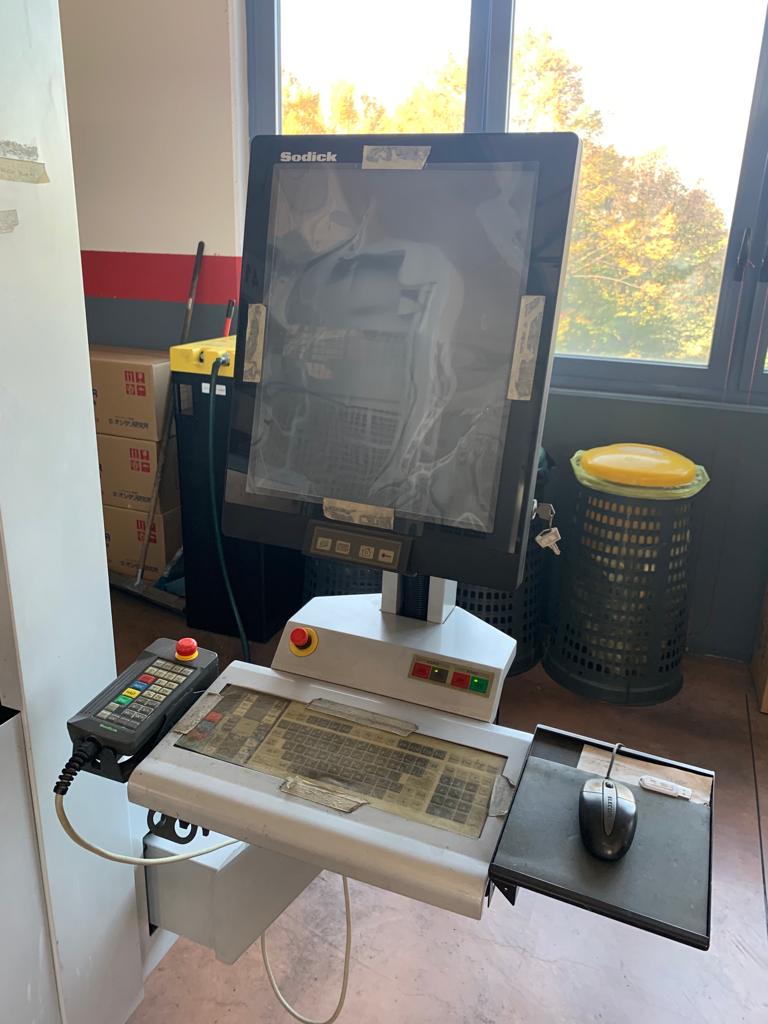

IMAGES:
