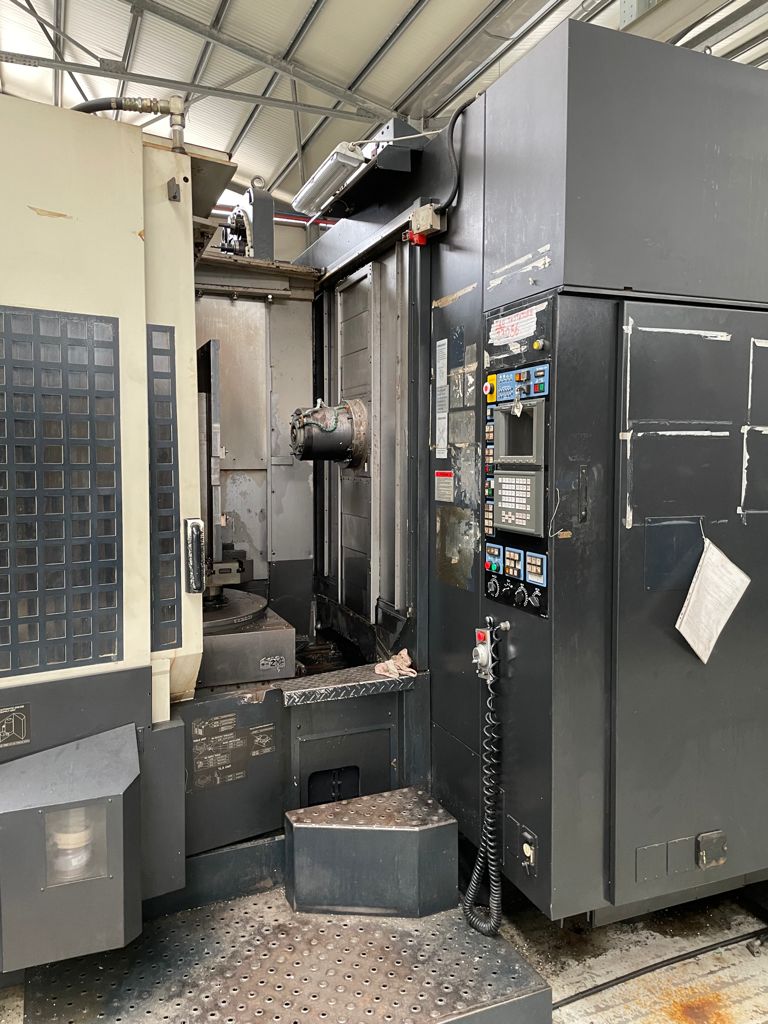

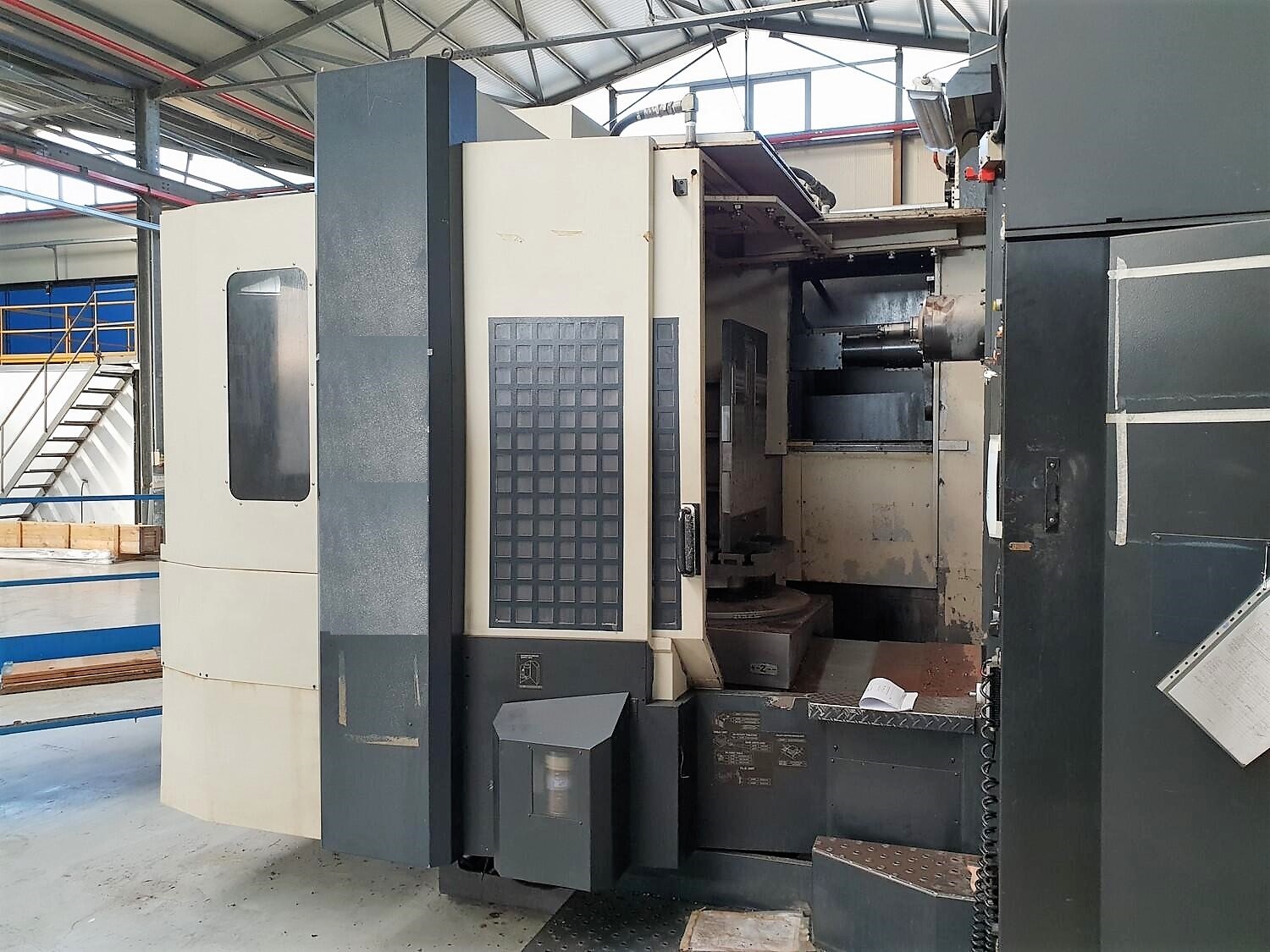

CENTER MAKINO A77
Double pallet
.jpeg)
08962
CNC FANUC
GENERAL DATA:
X-axis stroke mm 800
Y-axis stroke mm 750
Distance table top - spindle axis mm 100-850
Z-axis stroke mm 770
Cross distance table center - spindle head mm 180-950
Max piece handling height of the pallet surface mm 1000
Max piece rotation diameter in the working area mm 1030
CN ROTARY TABLE FOR PALLET::
Min. input increment 0.001°
Max rotation speed rpm 3200
Number of directions of rotation 2
Positioning accuracy +/- 5 sec. angular
PALLET:
Pallet dimensions mm 630x630
Max pallet load Kg 1200
SPINDLE:
Speed range 20-10000 rpm
Max torque Nm 390
Spindle bearing diameter mm 110
Spindle inner cone vertical cone ISO50/HSK-A100
Motor power (100% ED/15 min.) kW 26/30
TOOL CHANGE:
Tool magazine 90 positions
USED MACHINE
IMAGES:
