CENTER BOMAC CFM 1100

Single pallet

machine center - vertical - Used Machines

BOMAC
09432

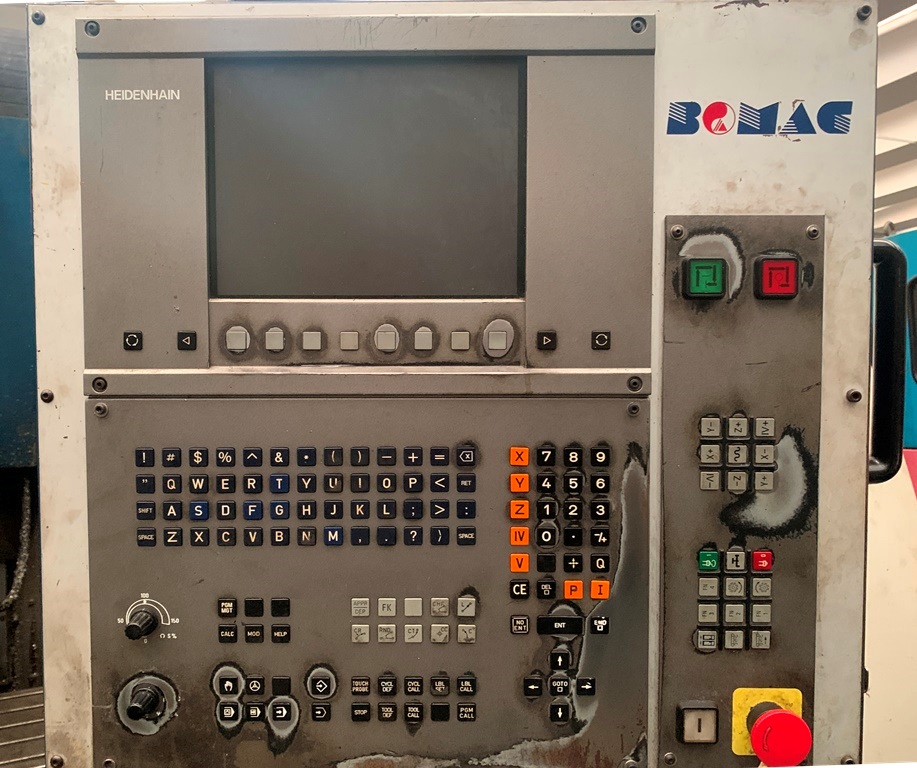

CNC HEIDENHAIN
TABLE:
Dimensions mm 1300x500
Max load Kg 900
T-slots N.5 mm 18x100
STROKES:
Axis X mm 1100
Axis Y mm 550
Axis Z mm 560
Max distance between spindle nose-table mm 125-700
Max distance between spindle center-column mm 520
SPINDLE:
Diameter mm 75
Taper BT 40
Rotation speed rpm 8000
Motor power kW 7.5/11

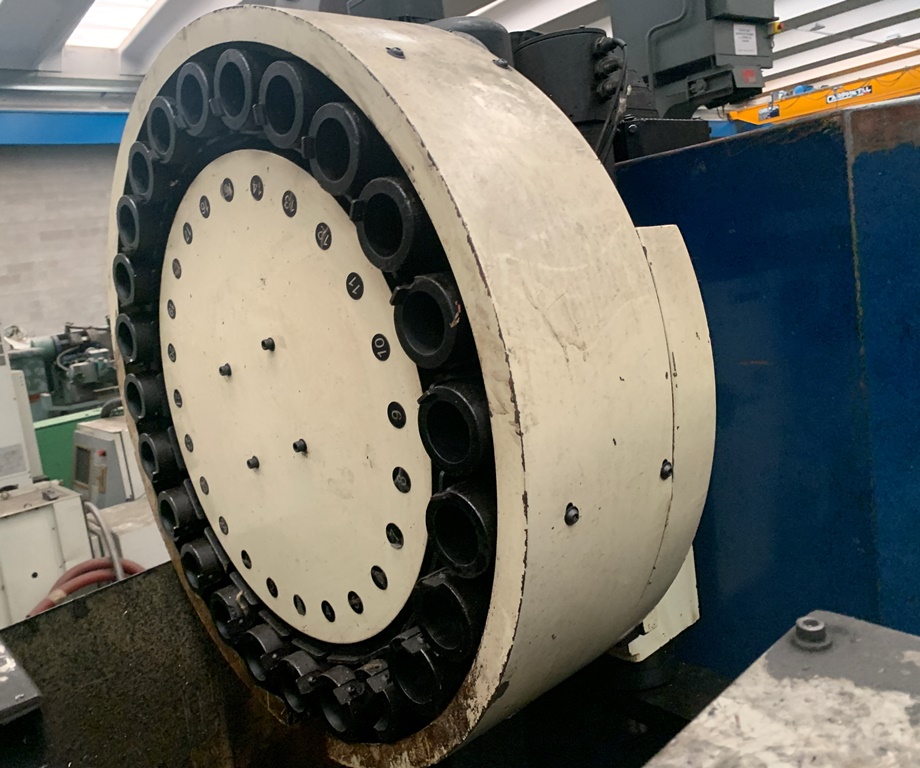

TOOLS MAGAZINE:
Tool magazine 24 positions
Max tool diameter mm 75
Max tool lenght mm 250
Max tool weight Kg 8
MACHINE WEIGHT AND DIMENSIONS:
Weight Kg 8300
Dimensions mm 3500x2800x2660H
EQUIPPED WITH:
-Chip conveyor

USED MACHINE

IMAGES:
