LATHE GIANA GF 700 CNC x 1000
2 axis
lathe cnc - Used Machines
.jpeg)
.jpeg)
.jpeg)
.jpeg)
.jpeg)
GIANA
09611
09611

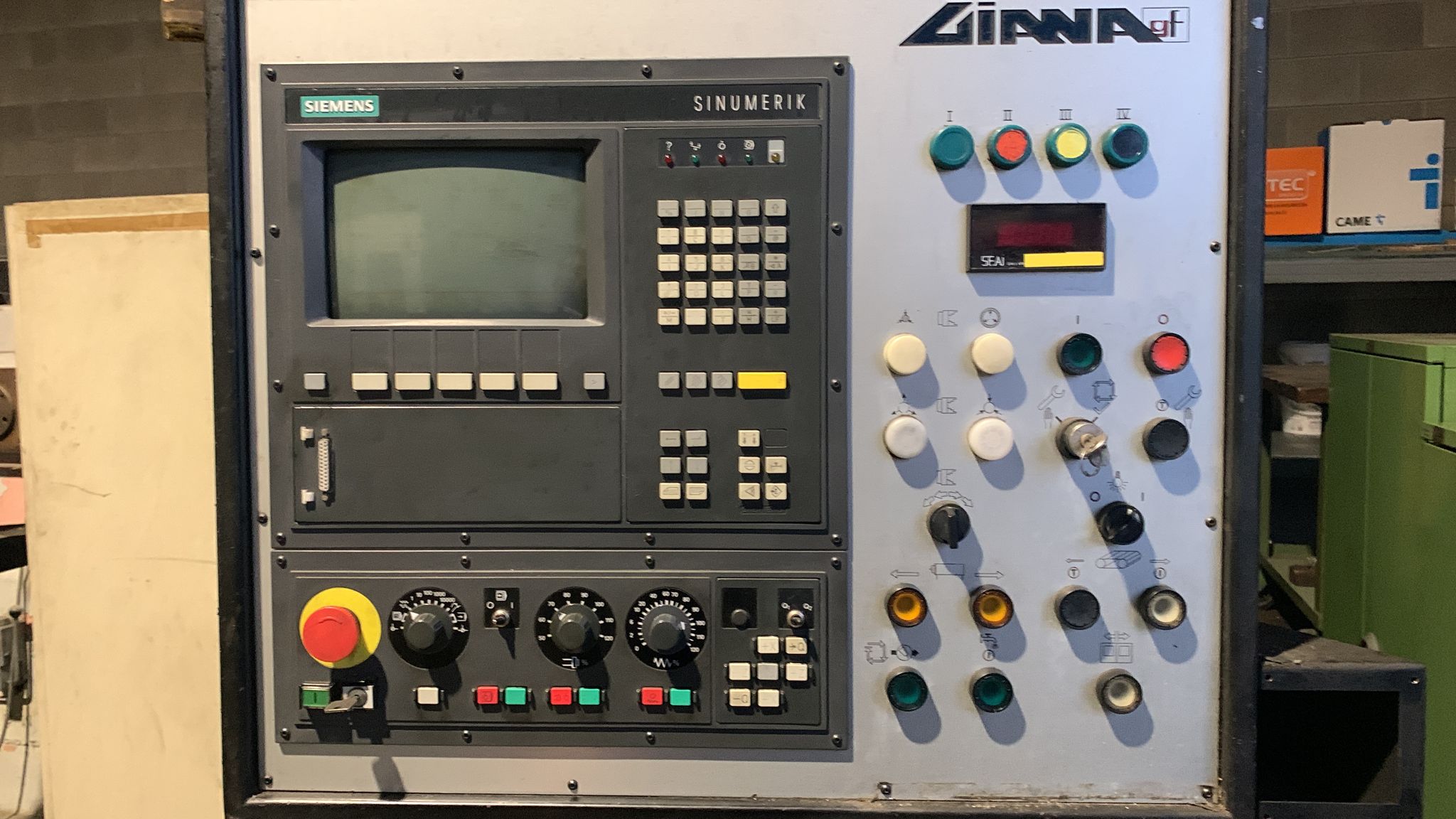

CNC Siemens SINUMERIK 810 T
CAPACITY:
Height of centers 350 mm
Max turning diameter on the bench 700 mm
Max turning diameter on the carriage 300 mm (version with two turret)
Distance between centers 1000 mm
Max turning length 900 mm
Max weight of the piece between the centers 1500 kg
SPINDLE:
Required power kW 25
Speed (at constant power) rpm 90-1870
Speed (at constant torque) rpm 9-670
TURNING CARRIAGE:
Longitudinal travel (Z axis) 900 mm
Transverse travel (X axis) 400 mm
TAILSTOCK:
Quill stroke 200 mm
EQUIPPED WITH:
-Chip evacuator
USED MACHINE
