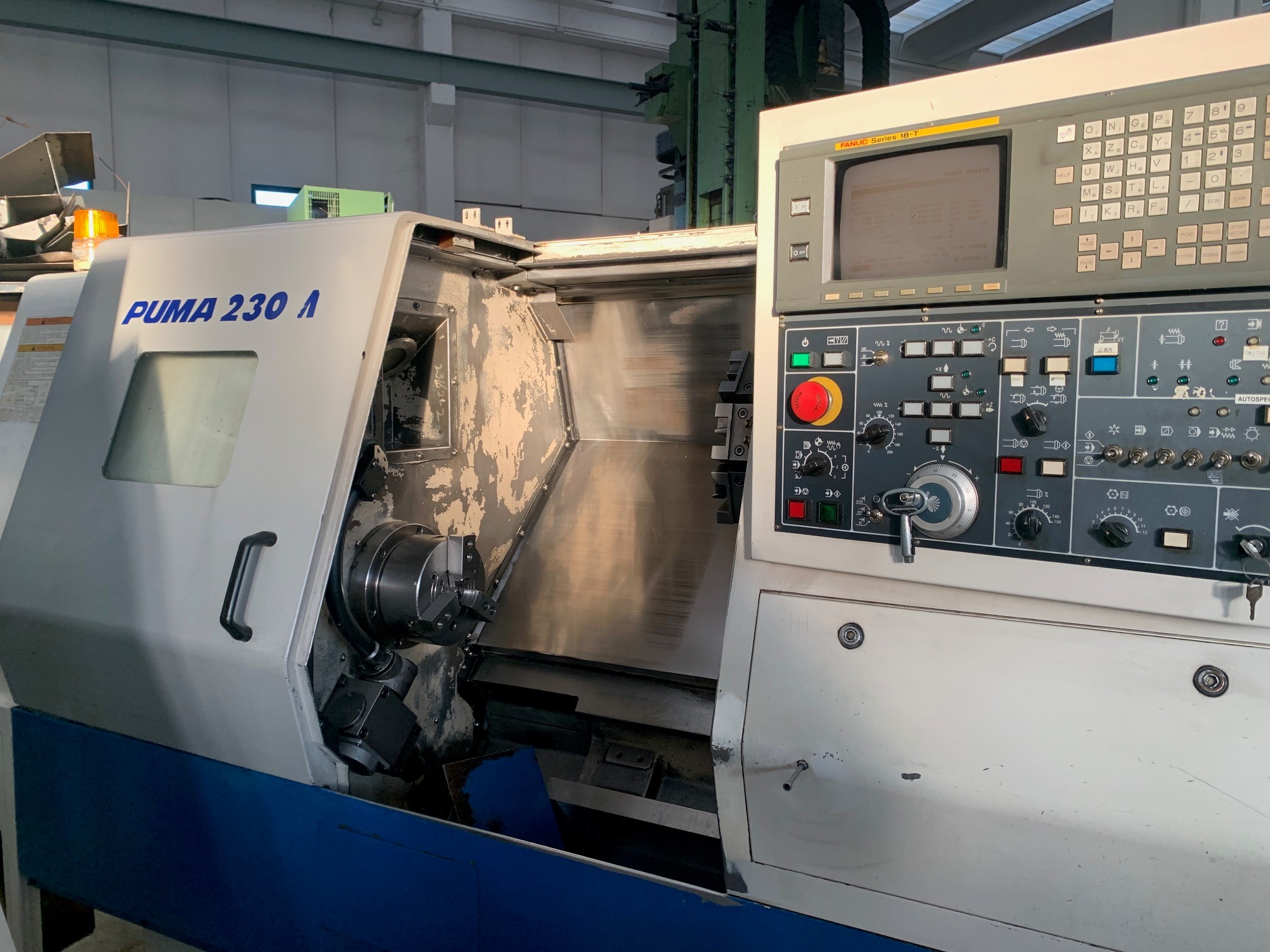

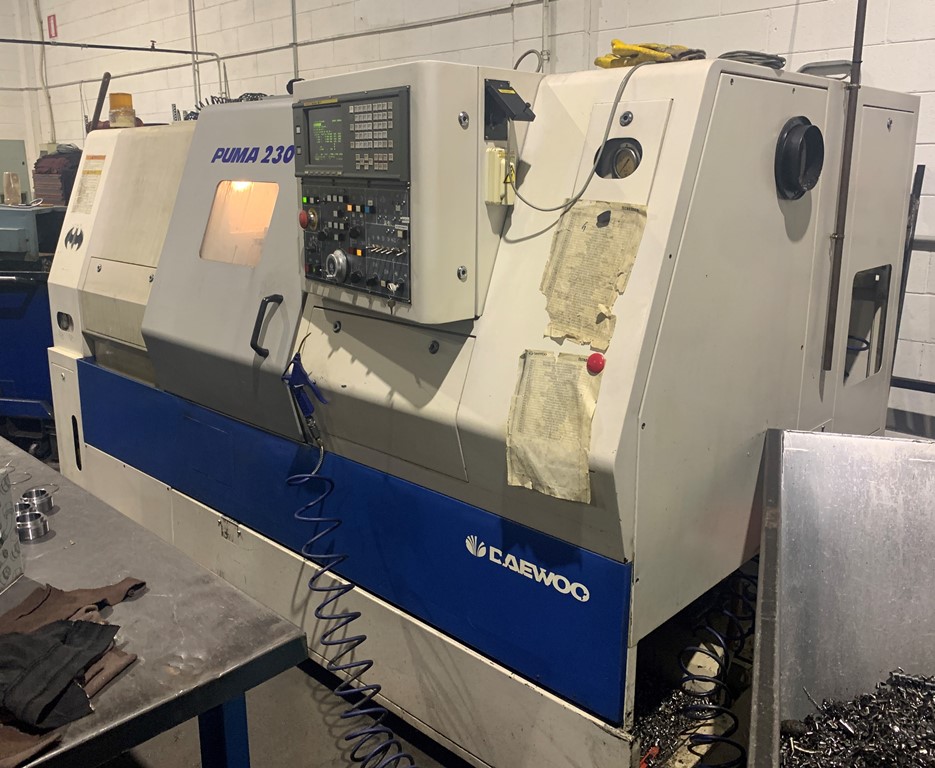

LATHE PUMA MOD. 230 MB
With live tools
09683
LIVE TOOLS

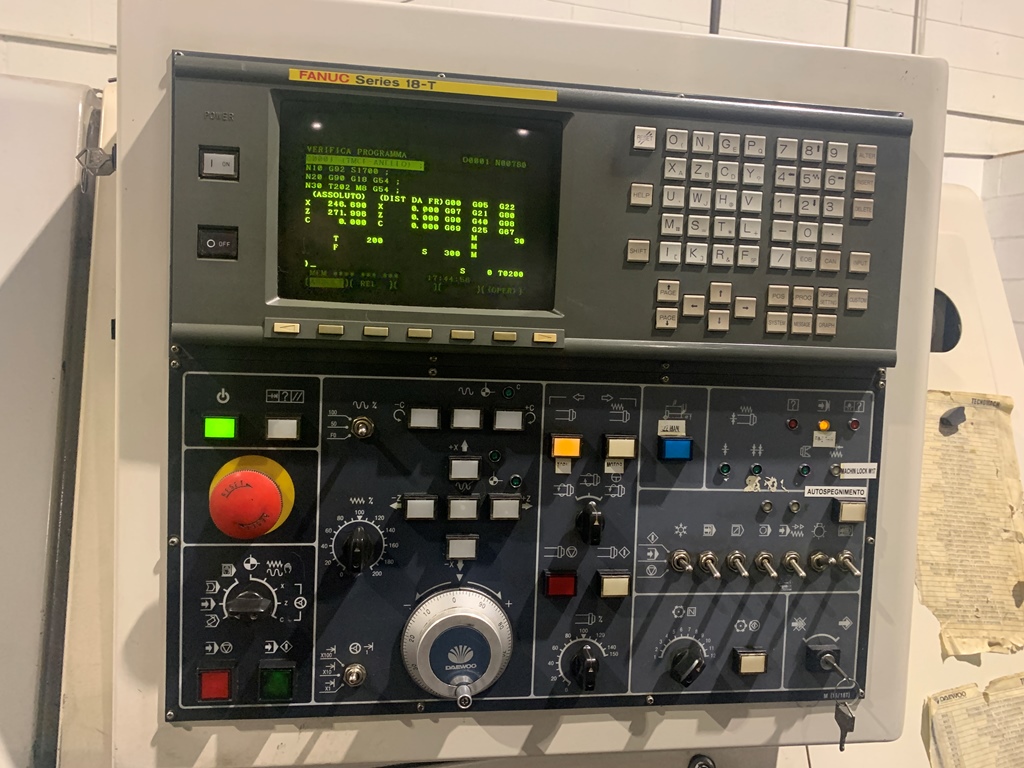

CNC FANUC 18-T
CAPACITY:
Max. rotating diameter on table mm 550
Max. rotating diameter on carriage mm 390
Max. turning diameter mm 290
Max. turning length mm 492
Bar passage mm 65

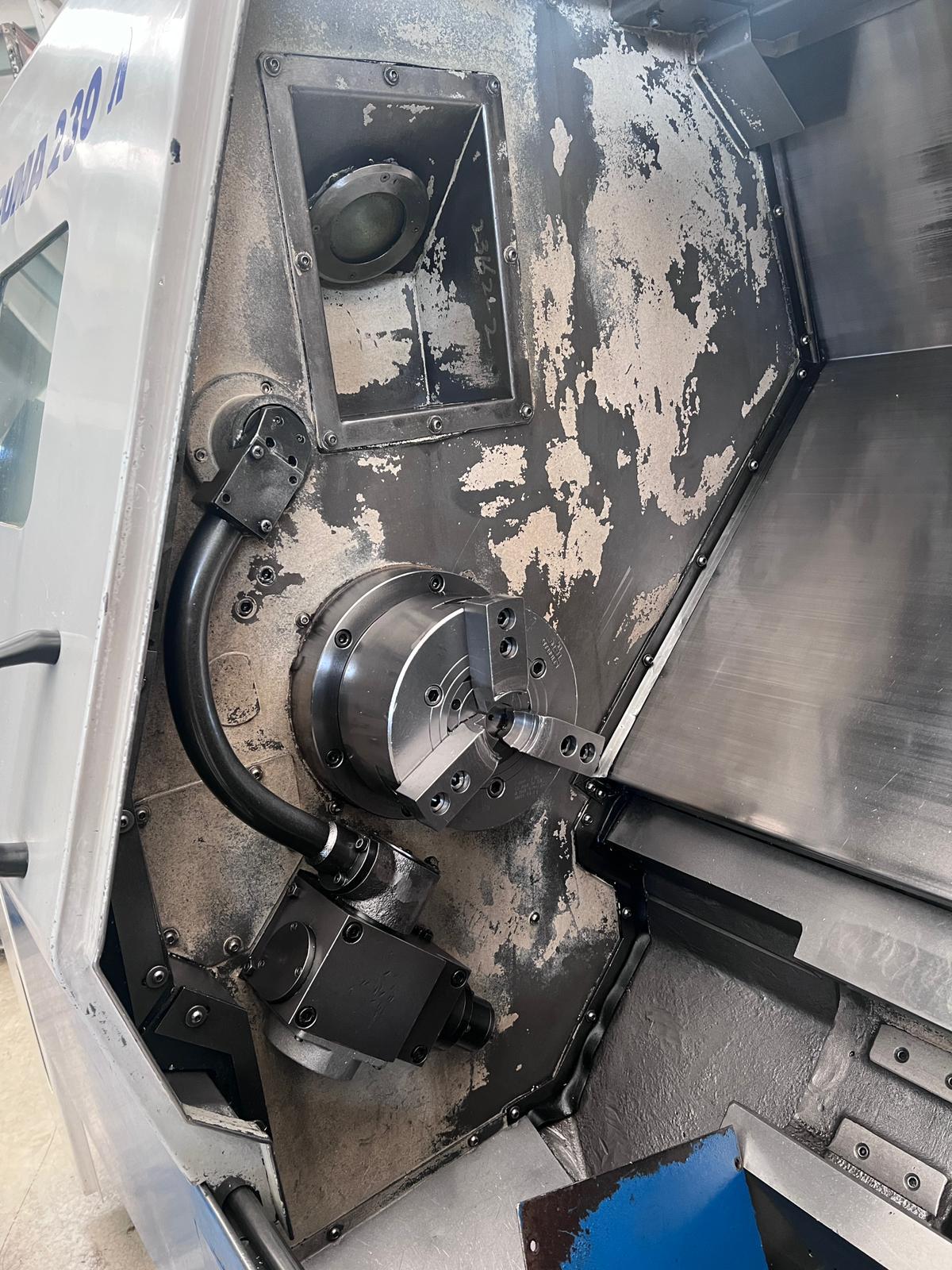

SPINDLE
Spindle bore diameter mm 76
Spindle nose ASA A2 6‘’
Front bearing internal diameter mm 110
Spindle rotation speed rpm 45-4500
Motor power (cont./30') Kw 11/15
AXIS:
X-axis travel mm 205
Z-axis travel mm 580

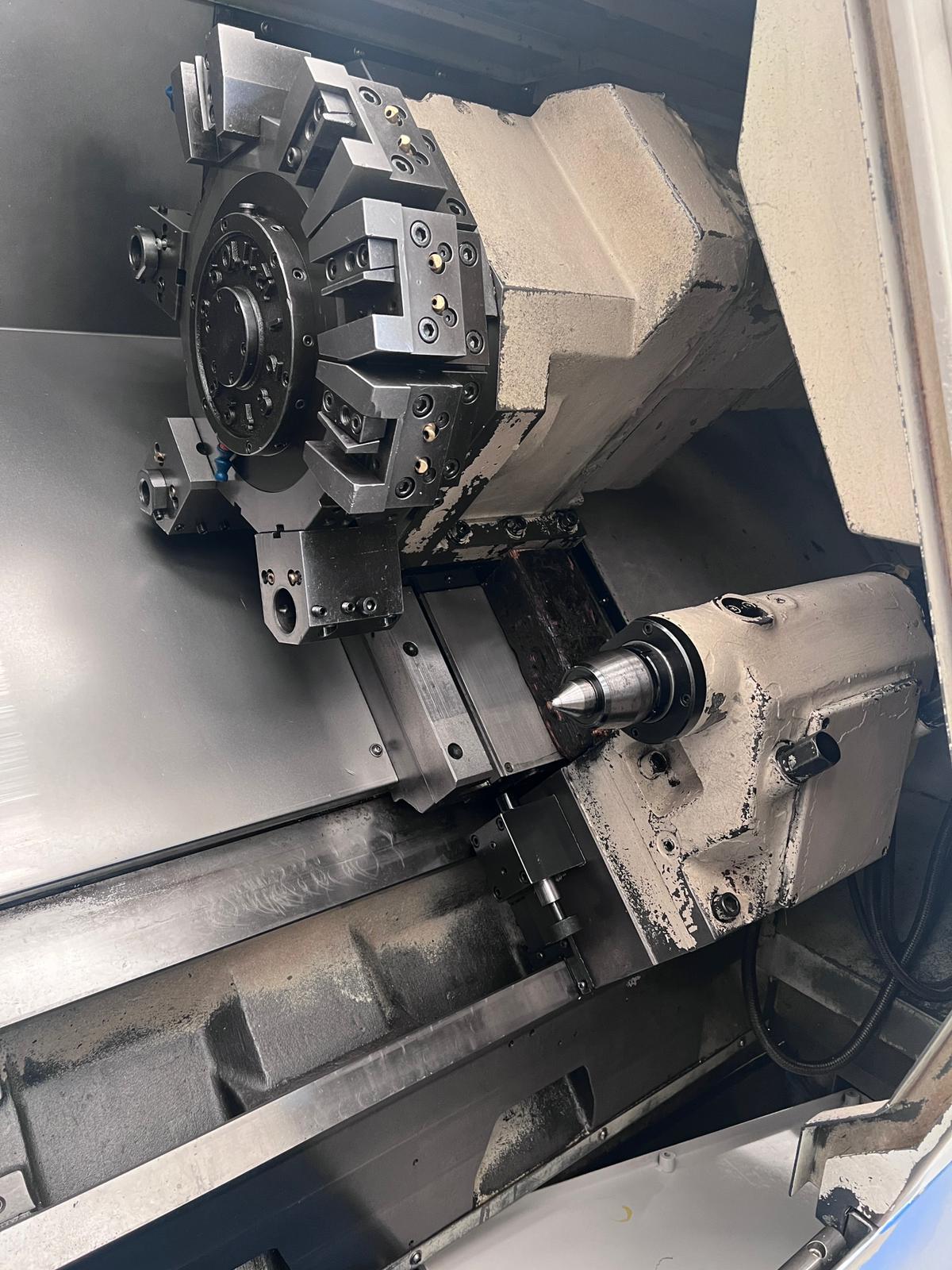

TURRET
12-position turret
Max. tool diameter external/internal mm 25/diam.40
TAILSTOCK
Quill diameter mm 75
Quill travle mm 80
Quill taper Morse 4
MACHINE DIMENSIONS AND WEIGHT
Installed power KW 19/23
Overall dimensions (without evacuator) LxWxH mm 2997x1670x1740
Net weight Kg 4140
COMPLETE WITH:
-Chip conveyor
-n.1 spindle diam. mm 210
-n.2 axial motorised toolholders
-n.1 radial motorised tool holder
-4 fixed external mounted tool holders
-3 mounted fixed tool holders for stretchers
-n.3 sets of dowels
-1 set of hardened jaws
-6 sleeves
-3 sets of soft jaws
-n.1 tailstock
USED MACHINE
IMAGES:
