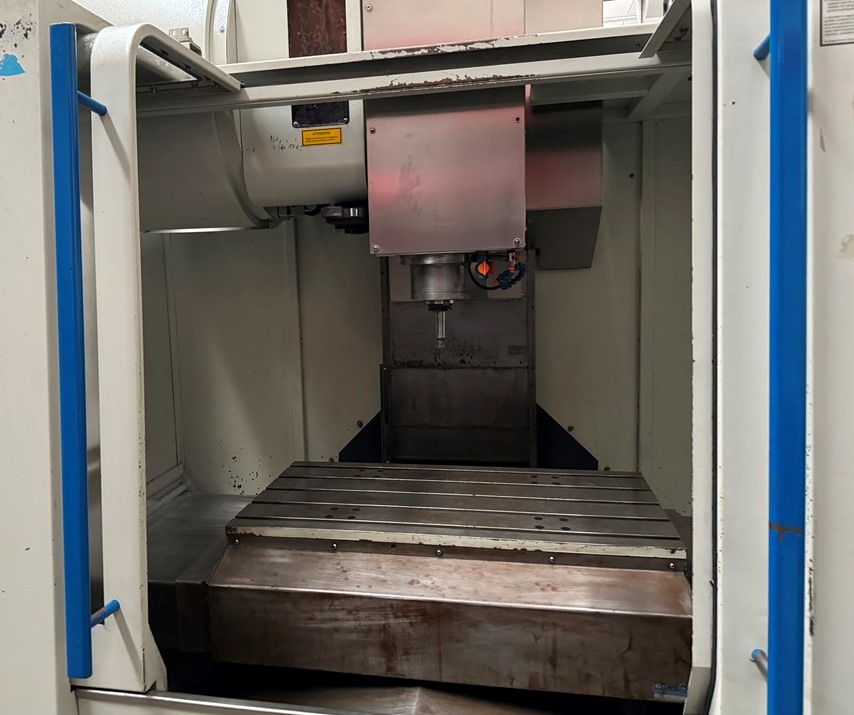

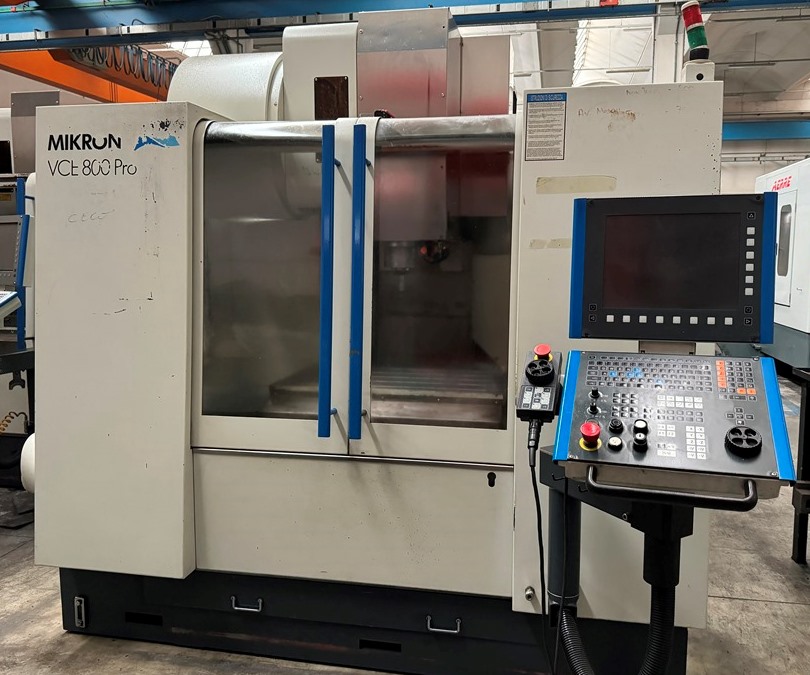

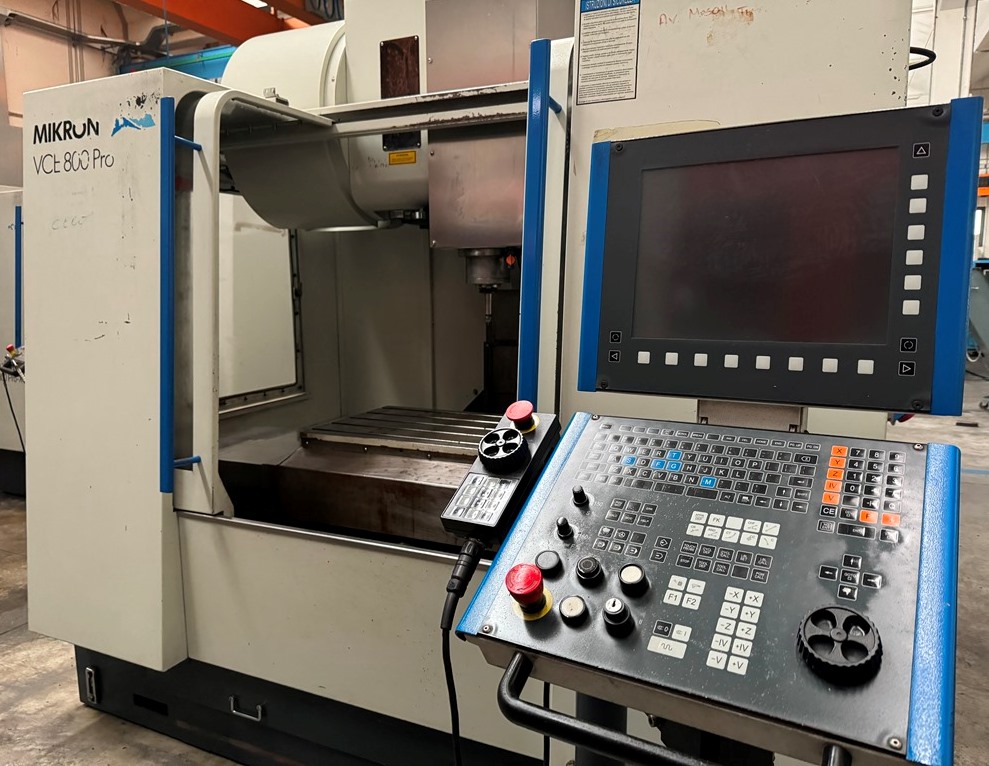

CENTER MIKRON VCE 800 PRO
Single pallet
machine center - vertical - Used Machines
VIDEOS:
MIKRON
09645
09645

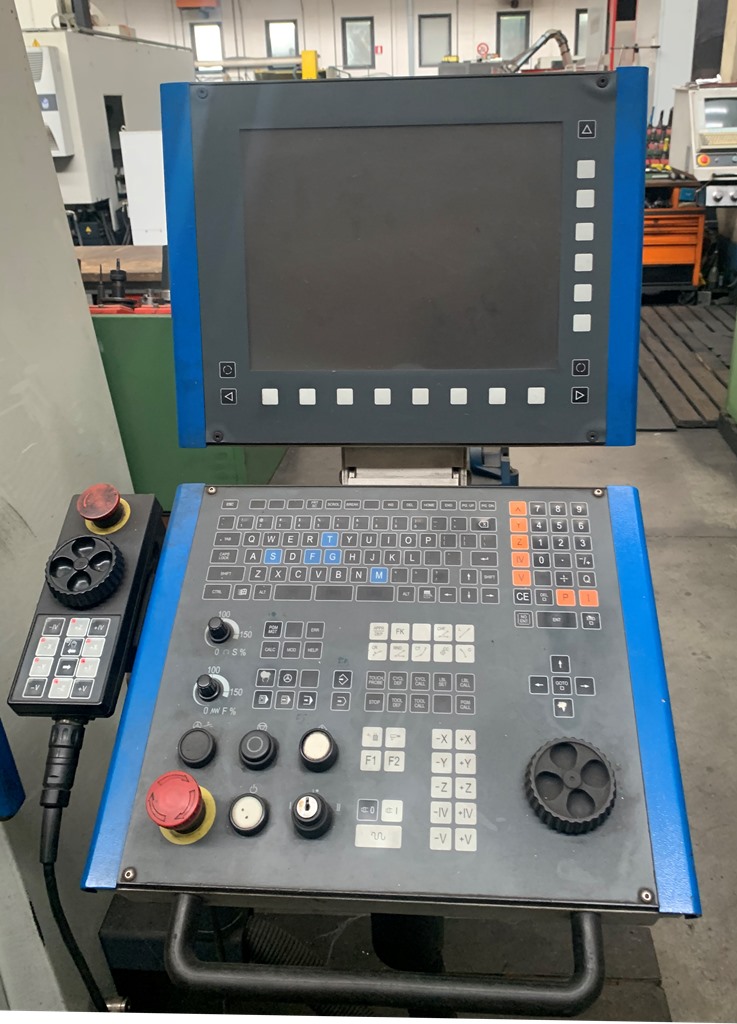

Heidenhain iTNC 530 CNC
STROKES:
X axis 800 mm
Y axis 500 mm
Z axis 540 mm
TABLE:
Table size 910x500 mm
Max table load 800 kg
SPINDLE:
Spindle speed 100-10.000 rpm
Motor power 40%-100% ED kW 12/18
Spindle taper SK40
TOOL CHANGE:
24-place automatic
Max tool diameter mm 77/115
Max tool length mm 305
Max tool weight 6 kg
Overall dimensions 2240 x 2720 x 3160 mm
Weight 5.000 kg
EQUIPPED WITH:
-Remote handwheel
-Screw chip ejector
-Two-color lamp
USED MACHINE
YEAR 2005
VIDEOS:
FILL OUT OUR FORM FOR MORE INFORMATION
